iBook (14.1 LCD 16 VRAM) Views

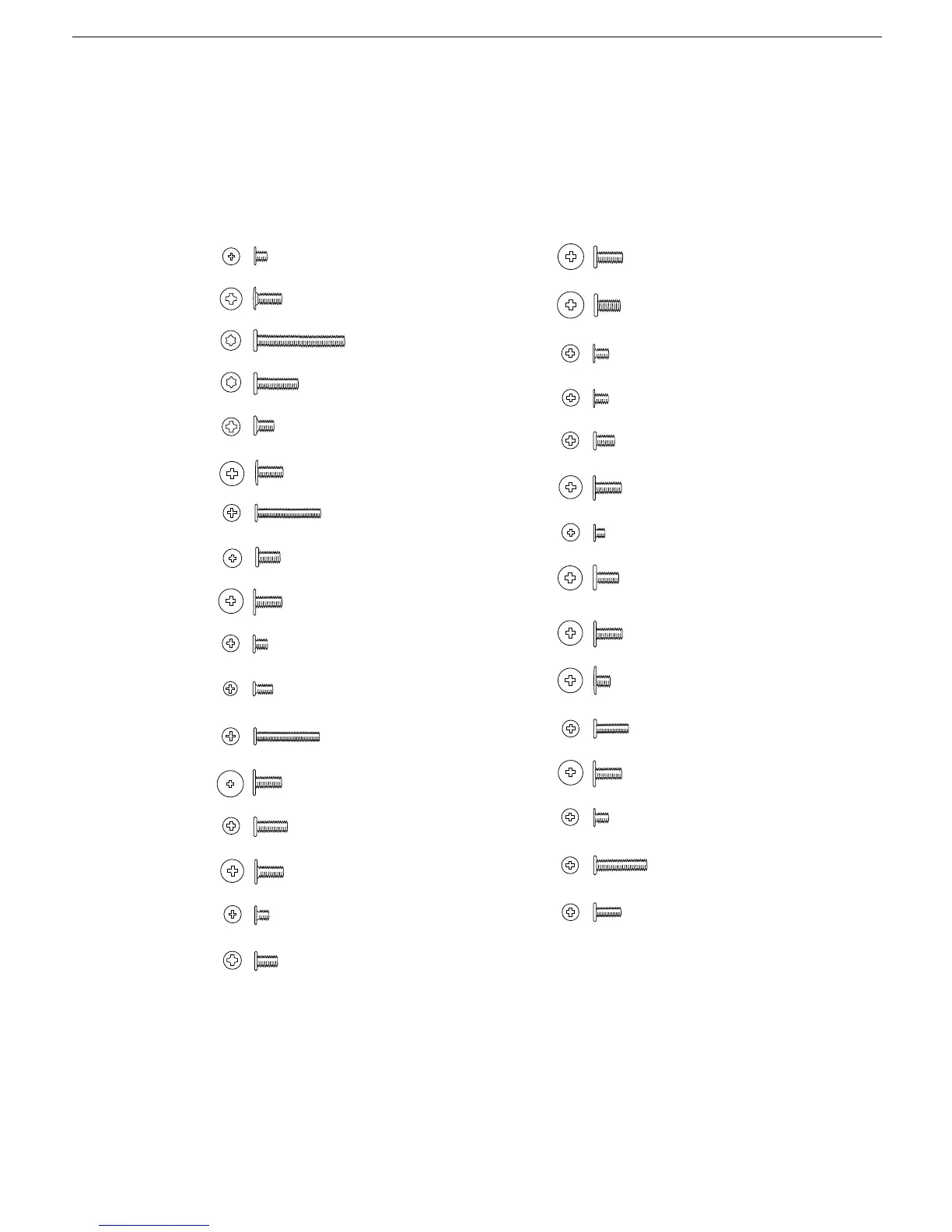

iBook (14.1 LCD 16 VRAM) Screw Reference Sheet
This sheet shows the types of screws used in the iBook (14.1 LCD 16 VRAM)
computer. To see where the screws are located in the computer, refer to
"iBook (14.1 LCD 16 VRAM) Screw Locator."
Bottom Case: Battery 2 @ 5 mm
Bottom Case 1 @ 10 mm
Bottom Case 3 @ 6 mm
Bottom Case 2@ 20 mm
Logic Board 2 @ 4 mm
Logic Board 1@ 6 mm
I/O Bezel 1 @ 6 mm
Top Case: Keyboard 2 @ 6 mm
Top Case: Keyboard 1 @ 8 mm
Logic Board 2 @ 7.5 mm
Top Case 3 @ 14.5 mm
Top Case 3 @ 5 mm
Top Case: Battery 3 @ 3 mm
Top Shield 2@ 5 mm
Top Shield 5 @ 3 mm
Top Shield 9 @ 6 mm
Display 2 @ 3.5 mm
Display: Hinge 2 @ 5 mm
Fan 1@ 6 mm
DC Board 1 @ 6 mm
Bottom Shield 9 @ 6 mm
RAM Shield 2 @ 3 mm
Logic Board: Heat Spreader 3 @ 6 mm
Optical Drive: Cable 2 @ 3 mm
Optical Drive 2 @ 6 mm
Logic Board 2 @ 3.5 mm
Hard Drive 1 @ 4.5 mm
Bottom Shield 2 @ 14.5 mm
Bottom Shield 1 @ 5 mm
Modem 2 @ 3.5 mm
Logic Board 1 @ 11 mm
Logic Board 1 @ 5 mm
