Apple iBook - Exploded View

iBook (14.1 LCD 16 VRAM) Views - 7

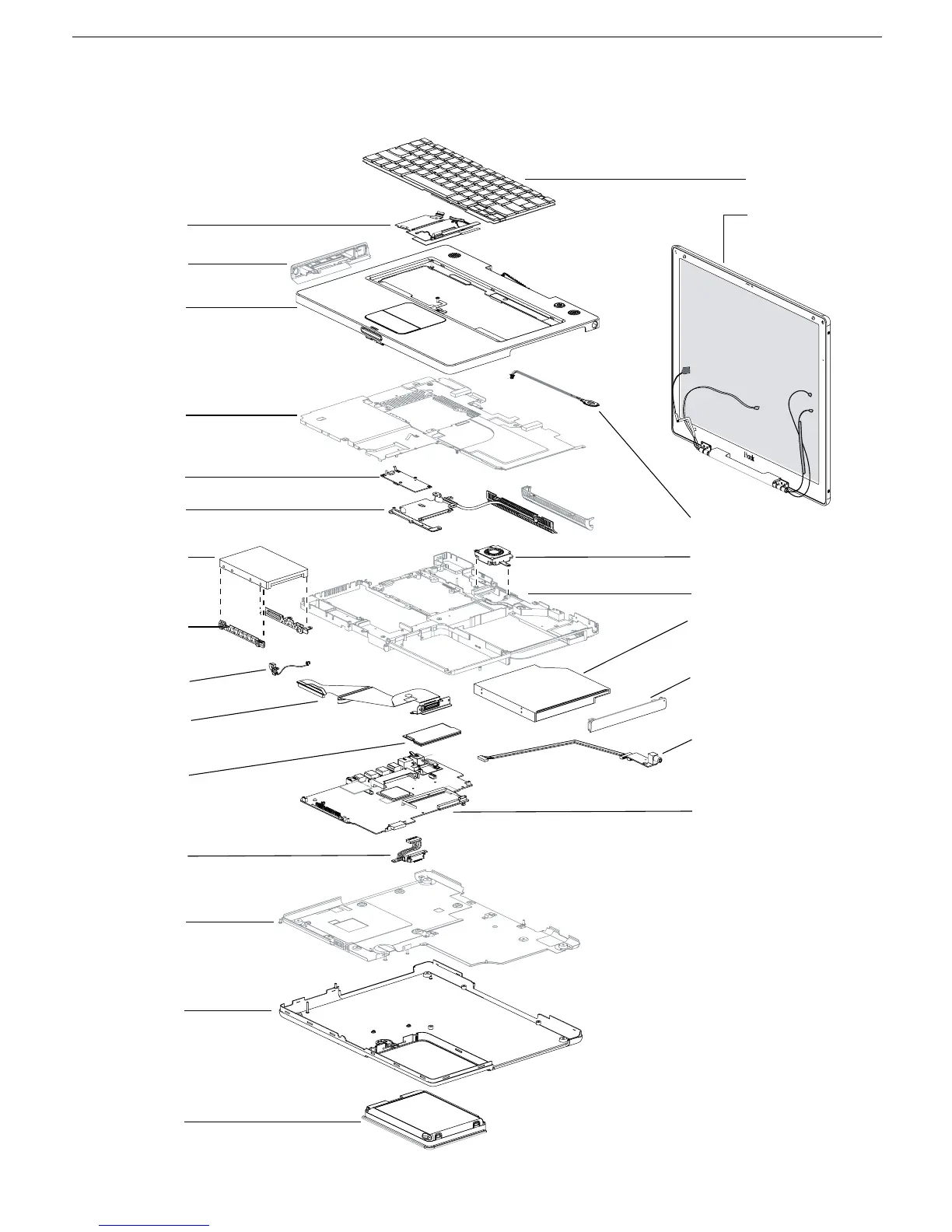

iBook (14.1 LCD 16 VRAM) Exploded View
Keyboard
922-5186
RAM-Shield
076-0926
Top Case
922-5188
Top Shield
(Not Offered)
I/O Panel
(Not Offered)
Display Assembly
661-2692
Fan 922-5189
Modem 661-2676
Heat Spreader
922-5195
Rib Frame (Not Offered)
DC Board
922-5196
Hard Drive
30GB 661-2670
40GB 661-2671
Hard Drive
Brackets
076-0936
Logic Board
661-2678
SDRAM
128 MB 661-2562
256 MB 661-2563
512 MB 661-2564
Battery
661-2611
Bottom Case
922-5187
Bottom Shield
(Not Offered)
Bezel
CD-ROM 922-5162
CD-RW/DVD-ROM 922-4754
Optical Drive
CD-ROM 661-2667
CD-RW/DVD-ROM 661-2683
Sleep Light Board
922-4749
Battery Transfer
Board
922-5218
Hard Drive/
Optical Drive Cable
922-5198
Power Switch Board
922-4751
