Closing the Computer

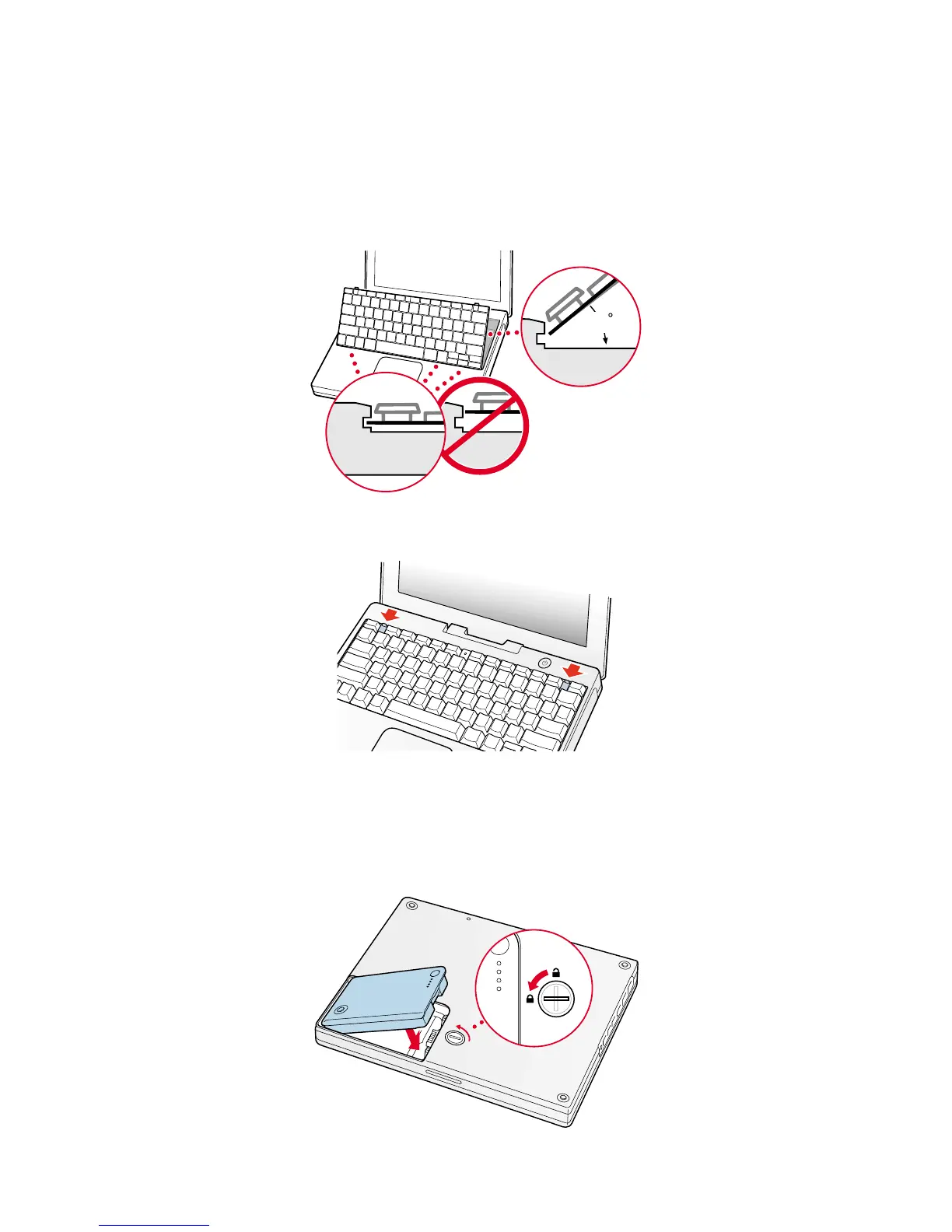

1. Flip the keyboard back toward the keyboard opening in the case.
2. Hold the keyboard at a 45-degree angle above the keyboard opening, and insert the tabs on the bottom edge of the key-
board into the slot under the edge of the opening (Figure 13).
Important : Make sure that all the tabs are seated and that the keyboard rests flush against the edge of the opening.
3. Lay the keyboard flat into the keyboard opening.
4. Pull down on the keyboard release tabs and then press down on the top portion of the keyboard (Figure 14).
5. Let go of the keyboard release tabs to secure the keyboard in place.
6. Close the display and turn the iBook over.
7. Replace the battery into the battery compartment. Hold the battery flush and use a coin to turn the latch counterclockwise
1/4 turn to lock the battery into place (Figure 15).
6 B073-0614 Rev. EiBook (Dual USB - Late 2001 - 14.1 LCD - 16 VRAM - 14.1 LCD 16 VRAM) - Keyboard
