3 Shielding
①
②
Mac mini 2012 Bluetooth Shielding Instructions

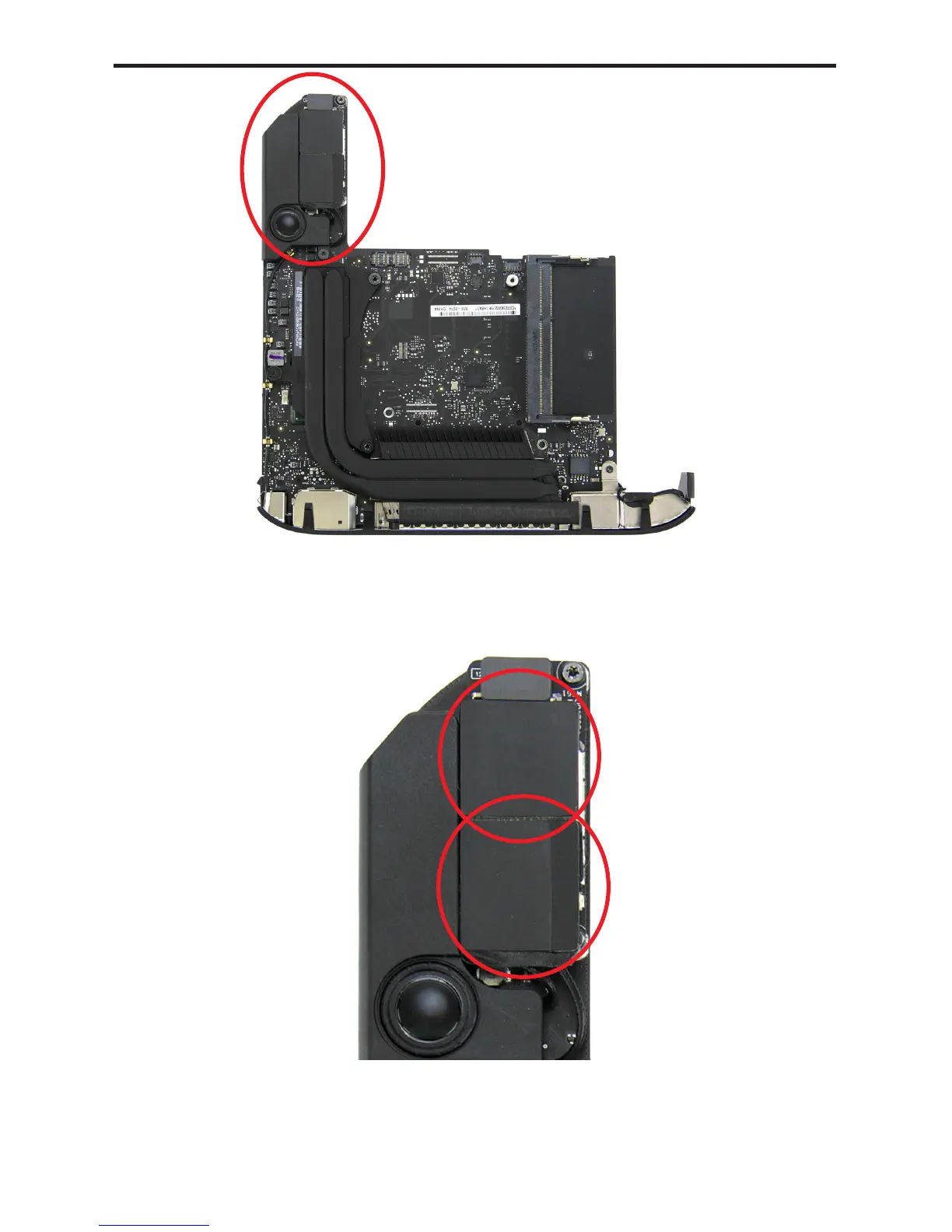

When the logic board has been removed, you will be able to locate the
Airport/Bluetooth card. It is located in the upper left corner of the logic
board, as shown above.
In order to apply the new shielding, you will rst need to remove the
two existing EMI shielding stickers from the Airport/Bluetooth card with
your ngers. Set these stickers aside, but do not throw them away. You
will use them again later.
