Apple PowerBook - Page 106

Exploded View
PowerBook (FireWire)
2

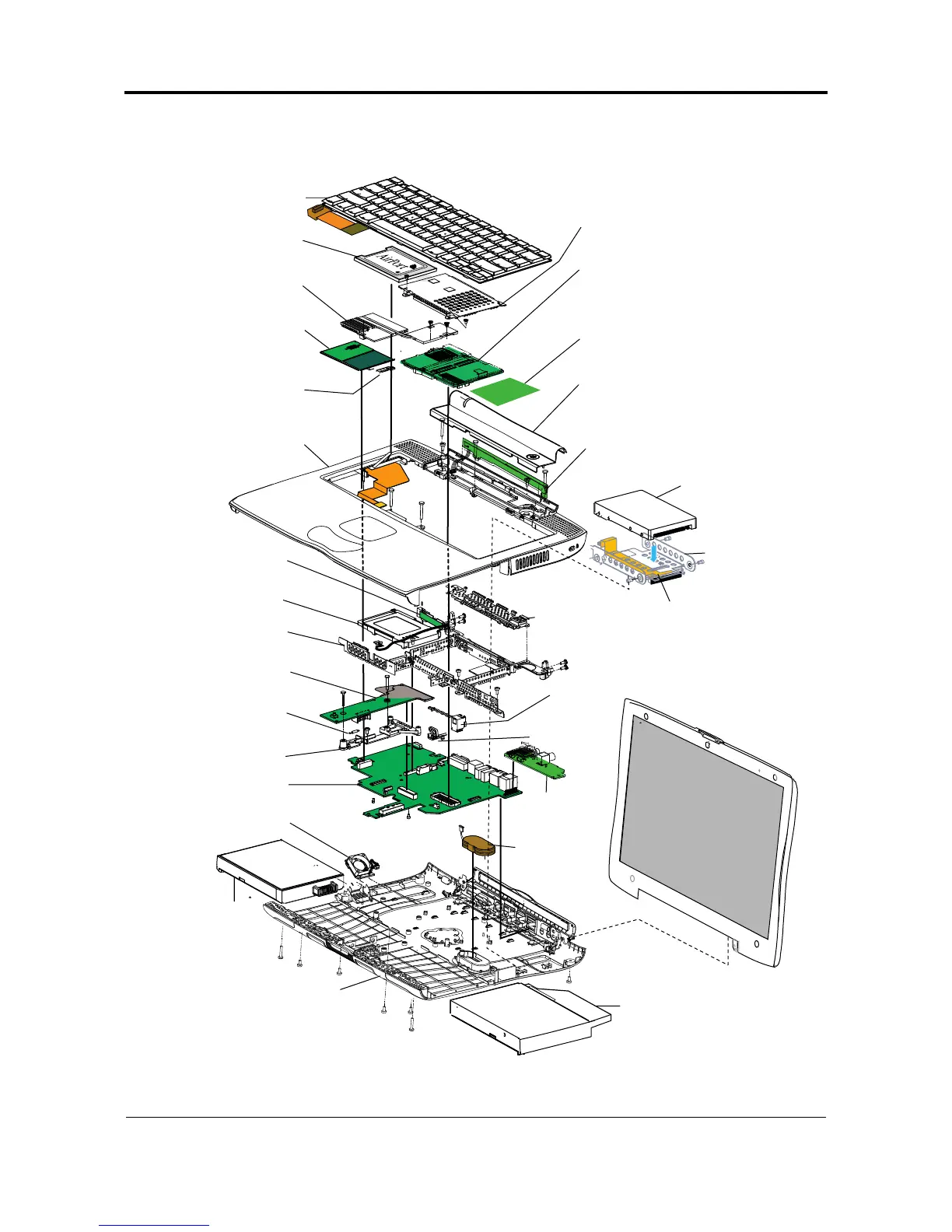

PowerBook (FireWire) Main Exploded View
Bottom Case
922-4179
Battery
661-2295
DVD-ROM
661-2244
I/O Logic Board
661-2286
Power Supply Card
661-2287
Yoke 922-3832
Latch Spring
922-3849
Stiffener
922-4180
I/OEMI Shield
922-4195
Wireless
Antenna Connector
Holder 922-4203
Modem,V.90
US/CAN/JPN
661-2309
Modem EMI Filter
922-4175
RJ-11Cable/Phone Jack
922-3845
Reset Button
922-4202
Fan 922-4194
Sound Card
661-2288
Microprocessor Board
400 MHz 661-2284
500 MHz 661-2285
SDRAM
64 MB 661-2281
128 MB 661-2282
256 MB 661-2283
PCMCIA Cardcage
922-4176
Backup
Battery
922-3829
Hard Drive
6 GB 661-2242
12 GB 661-2243
18 GB 661-2234
Hard Drive
Bracket
922-4193
Hard Drive Flex Cable
922-4170
Clutch Cover
922-3814
Inverter Board
922-4169
Microprocessor EMI Shield
922-4196
Heat Exchanger
922-4191
AirPort Card
661-2219
Keyboard
922-4174
See Display
Exploded View
Top Case
922-4178
PowerBook (FireWire) Main Exploded View
