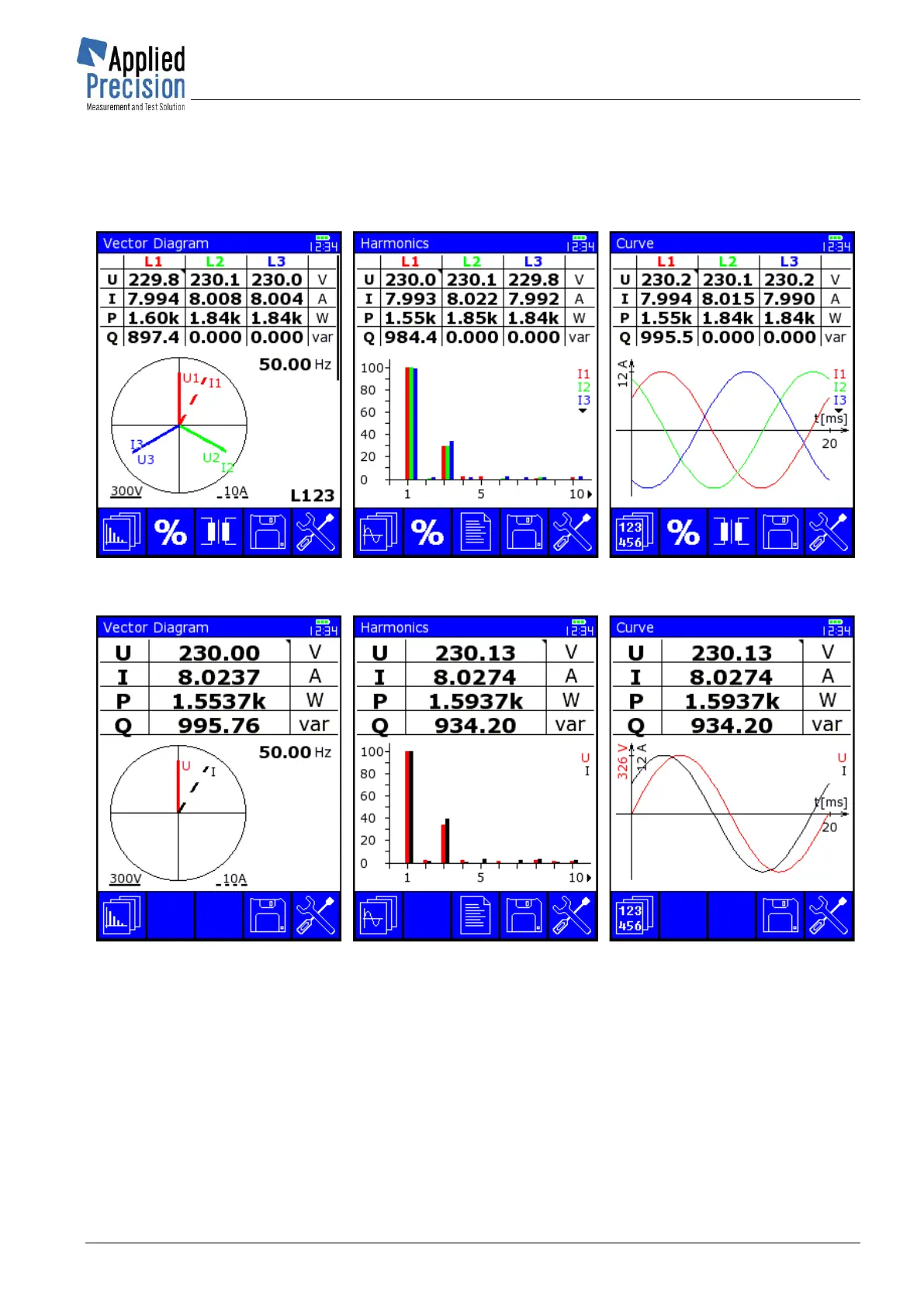

4.5.3 Graphical Presentation
Graphical Presentation pages which can be activated from Load Values page by repeated usage of F1
key show graphical presentation of measured signals.
Graphical Presentation screens for WS 2320:
Vector Diagram screen
* P02
Harmonics screen
* P03
Curve screen
* P04
Graphical Presentation screens for WS 2120:
Vector Diagram screen
* P49
Harmonics screen
* P50
Curve screen
* P51
Vector diagram has two parameters which can be configured in Measurement Settings:
- position of reference zero axis (vertical or horizontal)
- reference unit (voltage or current) which is displayed on reference zero axis
Harmonics screen shows harmonics up to 40
th
harmonic. 10 harmonics are displayed on one screen.
Scrolling to other harmonics can be done by ◄ ► arrow keys.
Combination of showed signals (I1+I2+I3, U1+U2+U3, U1+I1, U2+I2 or U3+I3) can be in Harmonics
and Curve screens chosen by ▼▲ arrow keys.
