04_16

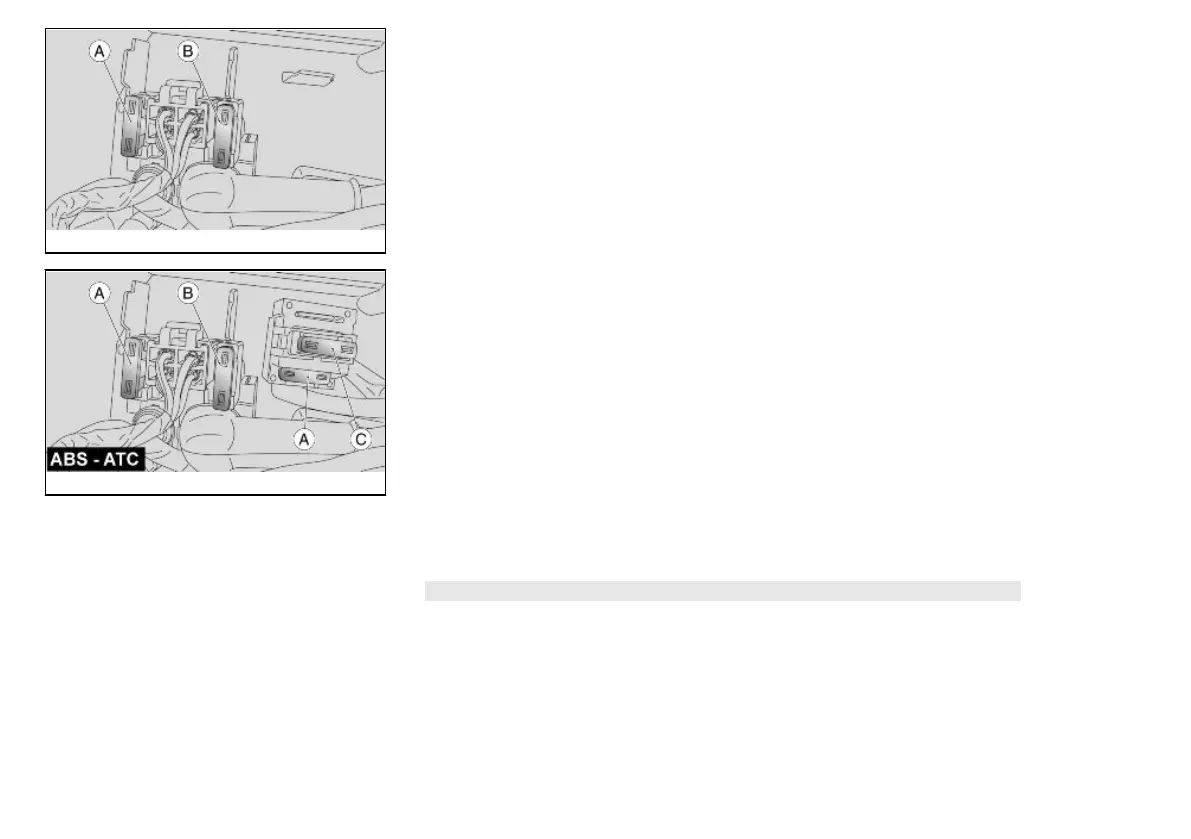

MAIN FUSES - version without ABS (under the saddle, remove the battery pro-
tection)
A - Spare fuse (30 A)
B - Battery recharge, fan relay, live positive, lambda probe (30 A)
04_17
MAIN FUSES - version without ABS - ATC (under the saddle, remove the battery
protection)
A - Spare fuses (30 A - 20 A)
B - Battery recharge, fan relay, live positive, lambda probe, ABS - ATC live positive
(30 A)
C - Permanent ABS - ATC positive (20 A)
Lamps
CAUTION
TO REMOVE, CHECK AND REPLACE THE BULB, PLEASE CONTACT AN Official
Aprilia Dealer. IF YOU ARE ADEQUATELY TRAINED AND EXPERIENCED, RE-
FER TO THE INSTRUCTIONS IN THIS WORKSHOP BOOKLET AVAILABLE ALSO
AT ANY DEALER.
