51
use and maintenance RS 125
REASSEMBLY
Carefully read page 43
(MAINTENANCE).
u
Spread a film of lubricating grease on the
whole length of the wheel pin (7), see
page 78 (LUBRICANT CHART).
While reassembling the wheel, be
careful not to damage the brake
pipe, the disc and the pads.
u
Correctly position the spacer (9).
The spacer ring (8) must be
positioned with the side having
longer diameter facing the fork right
rod.
u
Position the spacer ring (8) in its seat on
the wheel.
u
Position the wheel between the fork rods
on the support (6).
Danger of injury.
Do not introduce your fingers to
align the holes.
u
Move the wheel until its central hole and
the holes on the fork are aligned.
u
Introduce the wheel pin (7) completely.
u
Position the washer and tighten the
screw (4) manually.
u

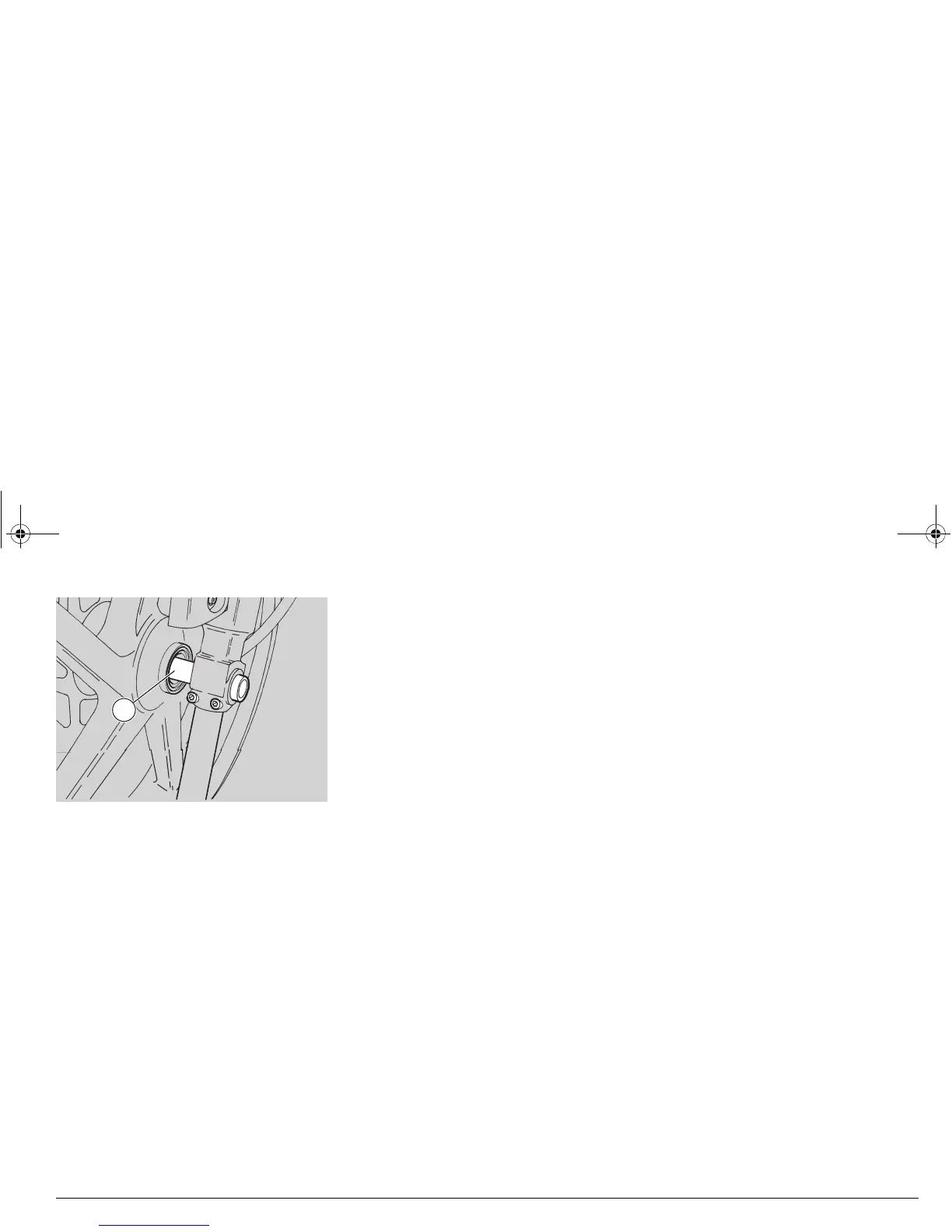

Lock the rotation of the whell pin (7).
u
Tighten the screw (4) definitively.
Screw (4) driving torque:
80 Nm (8 kgm).
Proceed with care, in order not
to damage the brake pads.
u
Insert the brake caliper (2) on the disc
and position it so that its fastening holes
and the holes on the support are aligned.
Upon reassembly of the brake
caliper, replace the caliper
fastening screws (1) with two
new screws of the same type.
u
Screw and tighten the two screws (1)
that fasten the brake caliper.
Brake caliper screw (1) driving torque:
50 Nm (5.0 kgm).
u
With pulled front brake lever, press the
handlebar repeatedly, thrusting the fork
downwards. In this way the fork rods will
settle properly.
u
H
Tighten the two screws (5) of the
wheel pin clamp.
Wheel pin clamp screw (5) driving
torque: 12 Nm (1,2 kgm)
u
Remove the front support stand -, see
page 47 (POSITIONING THE VEHICLE
ON THE FRONT SUPPORT STAND
J).
u
Remove the rear support stand -, see
page 47 (POSITIONING THE VEHICLE
ON THE REAR SUPPORT STAND J).
After reassembly, pull the front
brake lever repeatedly and
check the correct functioning of
the braking system.
Check the wheel centering.
Have the driving torques, centering and
balancing of the wheel checked by your
aprilia Official Dealer, in order to avoid
accidents that may be harmful for you
and/or other people.
9
