Screws
Screws
Spring Spacers
Flat Spacers
Ceiling Mount Gaskets
Ceiling Mount Gaskets
Spring Spacers
Flat Spacers

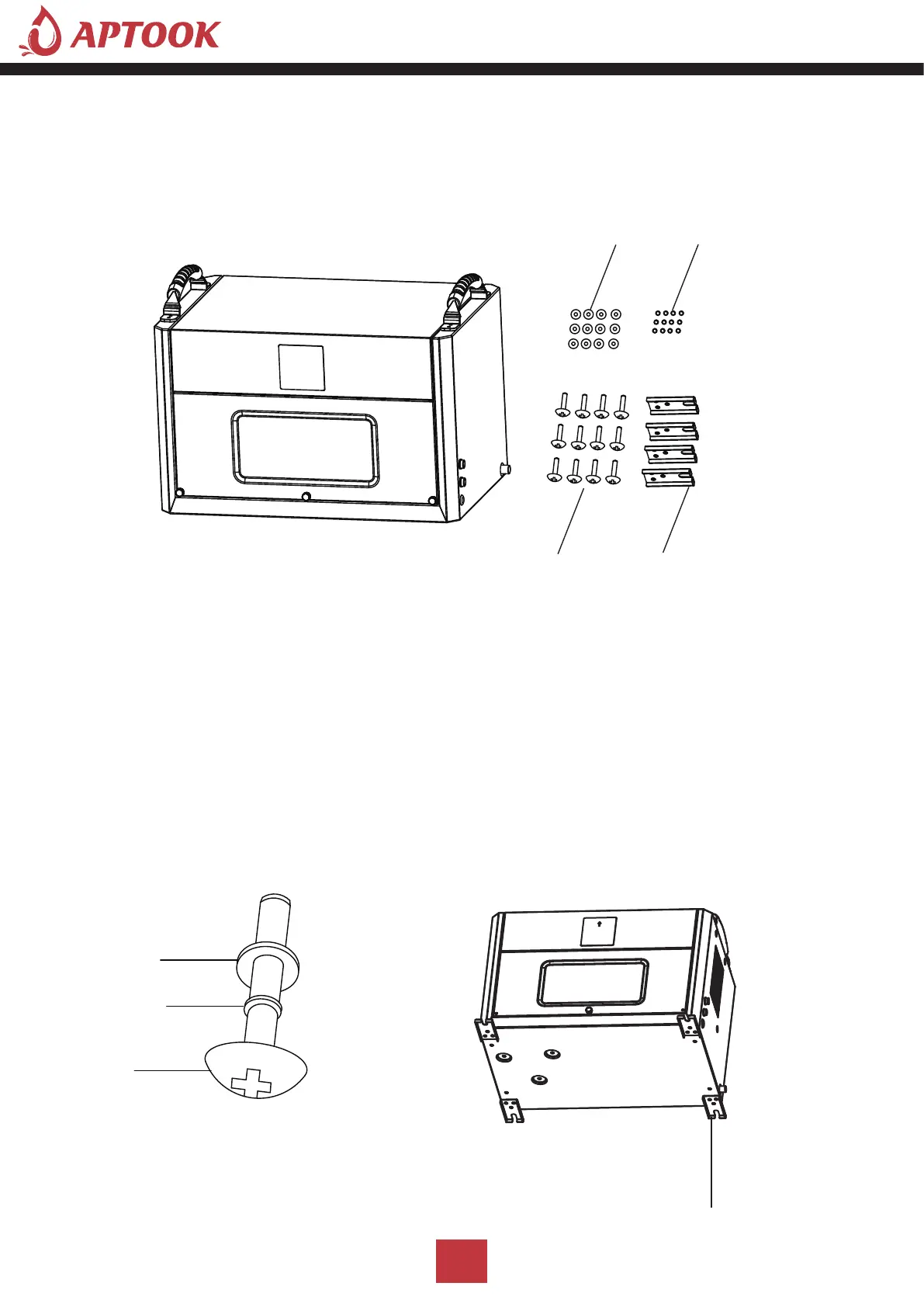

Ⅴ: Ceiling mount gasket installation
When the machine is suspended in the air, the machine needs to be installed with ceiling mount gasket.
1. Install the ceiling mount gasket in the body (accessories: 4 ceiling mount gaskets, 12 spring spacers,
12 flat spacers, 12 screws)
2. 1 screw with 1 spring shim and 1 flat shim.
3. Screw the shimmed screw through the boom hole and screw it into the threaded hole on the base
plate of the machine and lock tighten.
4. Each ceiling mount gasket is installed with 3 screws, and the 4 ceiling mount gasket are assembled
on the bottom plate of the machine and locked tighten.
14
