Aputure NOVA P300c - DMX Control and Connectivity (Continued); DMX Channel Selection; Controlling the Device Via DMX

-19-

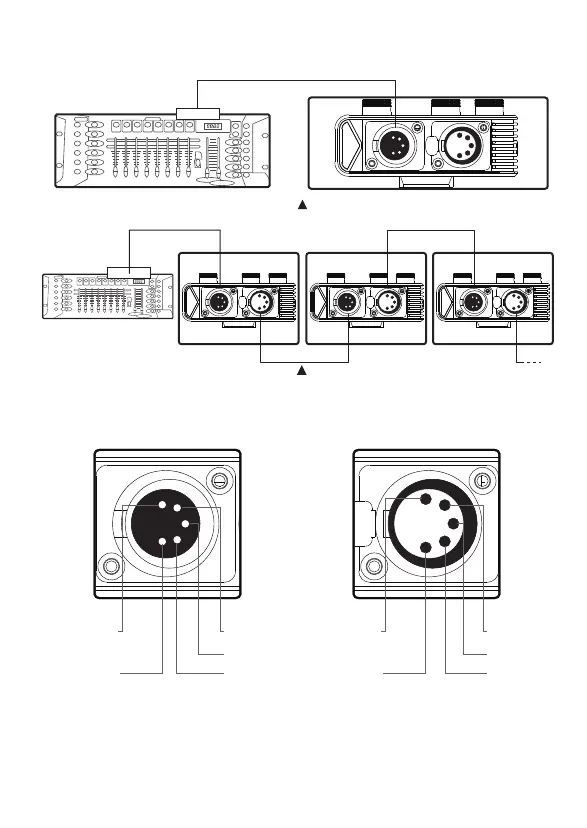

3. Connecting to DMX
1) Connect a standard DMX controller
Connecting DMX to only one NOVA P300c
Daisy chaining multiple lights using DMX
DMX512
DMX512
OUTPUT
DMX512
DMX512
OUTPUT
* The DMX interface schematic is shown in the pictures below:
Signal Common
Data 2- (Optional
Secondary Data Link)
Data 1-
(Primary Data Link)
Data 1+
(Primary Data Link)
PUSH
1
2
3
4
5
PUSH
PUSH PUSH PUSH
Data 2+ (Optional
Secondary Data Link)
Signal Common
Data 2- (Optional
Secondary Data Link)
Data 1-
(Primary Data Link)
Data 1+
(Primary Data Link)
PUSH
1
2
3
4
5
Data 2+ (Optional
Secondary Data Link)
