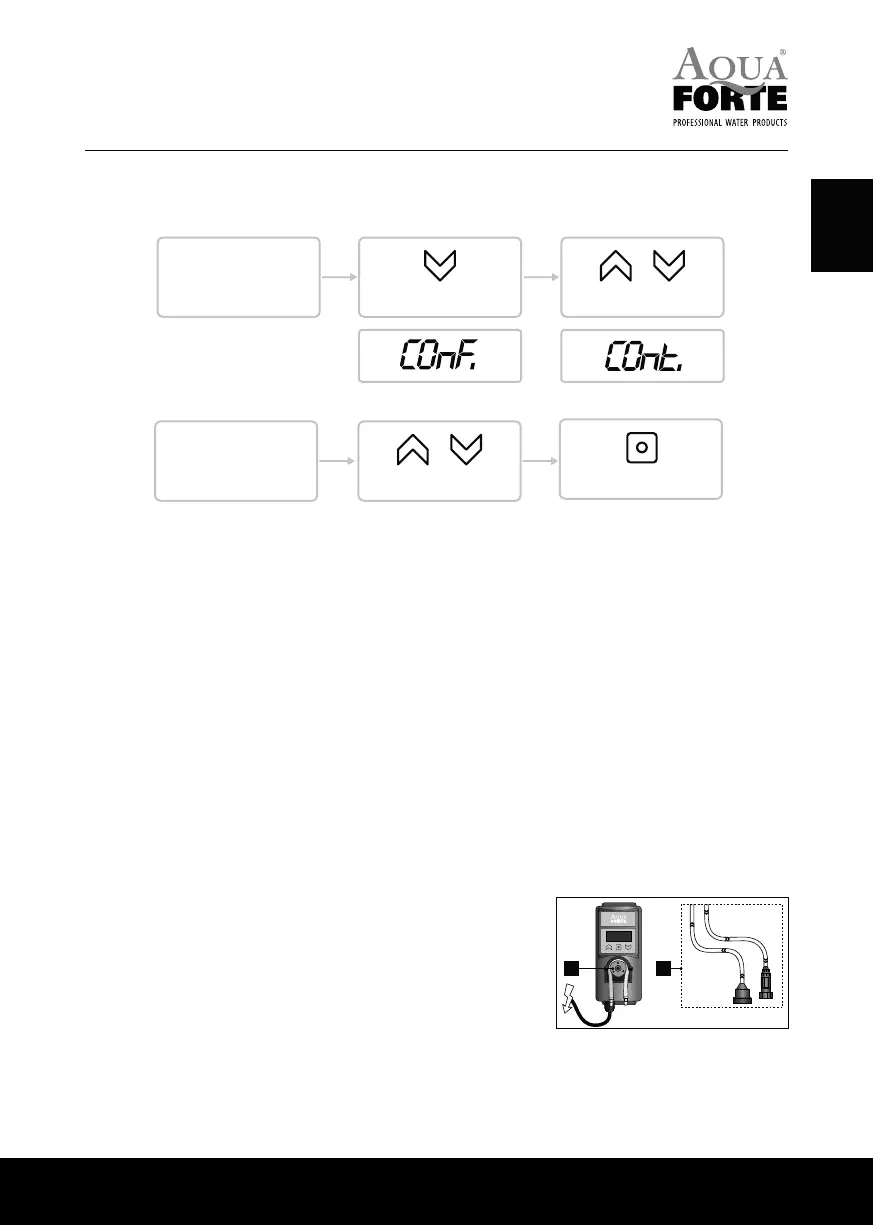

AQUA FORTE Dosatech - MAINTENANCE AND SPECIFICATIONS; Disassembly and Maintenance; Technical Specifications

Navigate through settings d01 to d24
F
Navigate through the settings
Back. Press and hold for 3
seconds
DISASSEMBLY/MAINTENANCE
Replace the pump cup at least once per year (drawing 2).
During maintenance/disassembly, always disconnect power to the device.
1. Remove the screws (E).
2. Remove the pump cup (F) from the housing (G).
3. Place the new pump cup (F) back on the housing (G).
TECHNICAL SPECIFICATIONS
Voltage 230 VAC
Power 5 watts
Speed 30 rpm
IP Class IP54
Frequency 50/60 Hz
Max. Metering Up to 600 seconds per metering event. Max. 24
times a day, at any time adjustable times
Dimensions H 21.5 cm x W 9.5 cm x D 8 cm
Replacement set for Dosatech (A)
Item number: SL234 replacement set for metering pump
(consisting of 2 metering hoses, the suction and injection nipples)
Replacement pump head (B)
Item number: SL232
Confirm, up/down. Press at the
same time.Press and hold for 6 seconds
Deactivate continuous metering
E
Setting shown on display Confirm setting shown on display
B A
AQUAFORTE DOSATECH MANUAL • 9
EN
