Electrical (continued)
A B C D E

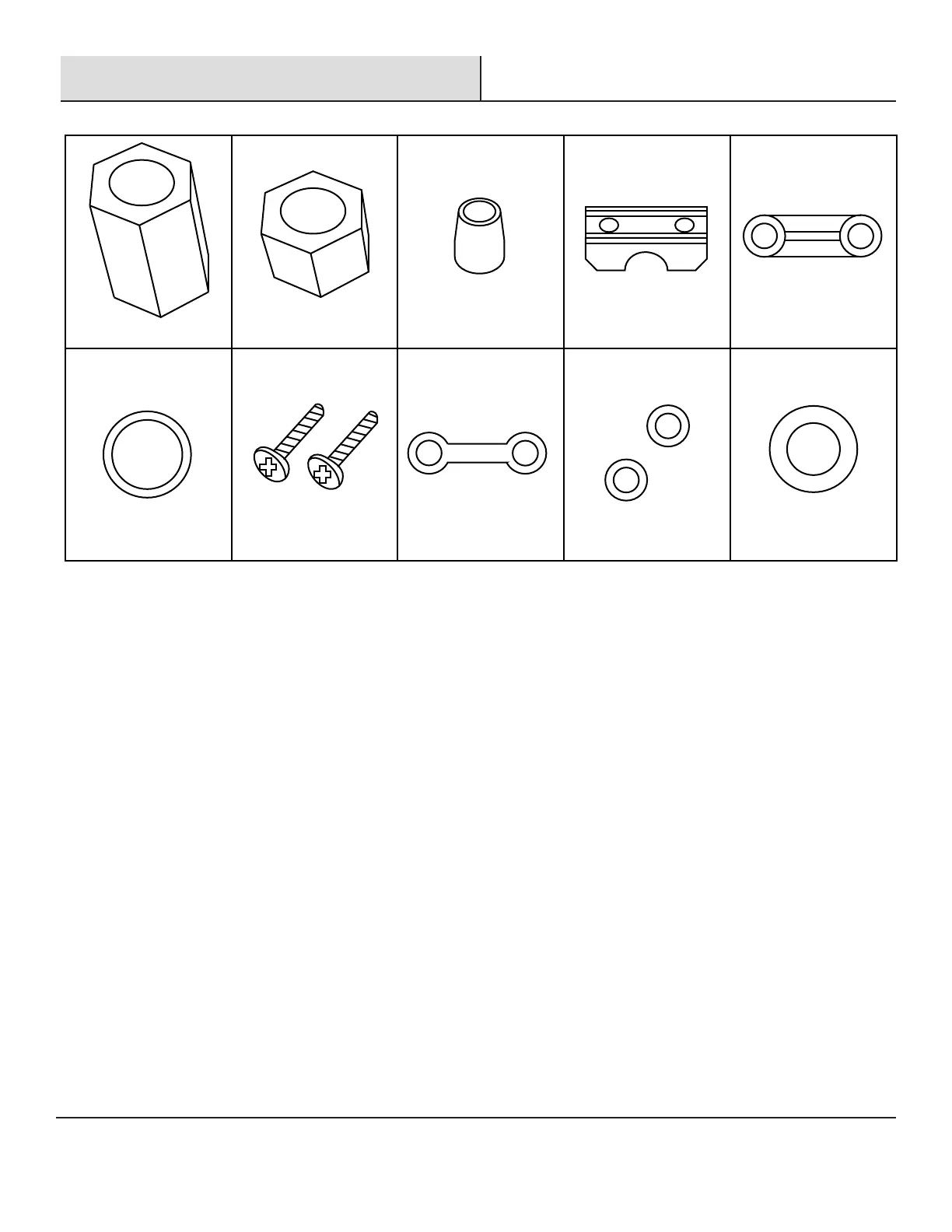

Figure 9 - DV FLO Pump Electrical Accessories
230V WITH CONDUIT
1 - Remove pump box cover (four screws included with pump
2 - Pull wires into pump box, per wiring diagram (see figure 5)
3 - Connect conduit to long hex adapter (part A, already attached)
4 - install white cord strain relief (part E)
5 - Use included screws (part G), to secure white cord strain relief (part E)
6 - Reinstall box cover
115V WITH 16 GAUGE POWER CORD
1 - Remove long hex adapter (part A) off pump
2 - Remove pump box cover (four screws included with pump)
3 - Unscrew and realign the brass bridge (part H), and brass washers (part I), to match 115V wiring diagram (see figure 5)
4 - Run the 16 gauge cord through the rubber cone gasket (part C). Insert cone gasket into black hex cap (part B).
5 - Pull wires into pump box, per wiring diagram
6 - install white cord strain relief (part E)
7 - Use included screws (part G), to secure white cord strain relief (part E)
8 - Tighten black hex cap (part B) to pump box
9 - Reinstall box cover
