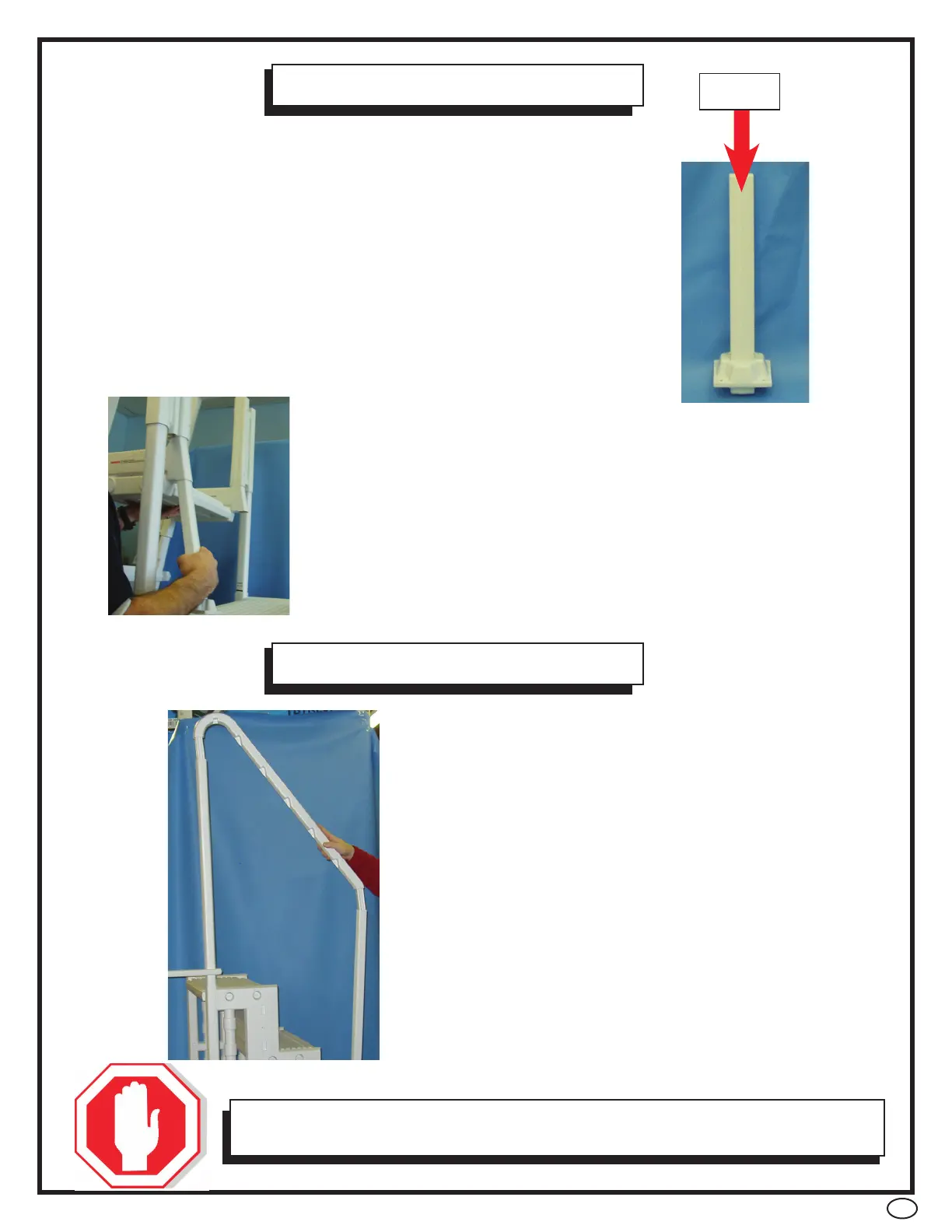

Aqua Select 832406SC - Assembly Steps 9 (Cont.) and 10; Step 9 (Cont.): Securing Mounting Blocks and Shields; Step 10: Attaching Handrails to Step Posts

7
NOTE
• Coat adjustable tube (AC ADJTUBE) with lubricant and slip
(1) mounting block (AC MTBLOCK) all the way down over the
nubs on the tube. The open side should be exposed.
•
Repeat for second adjustable tube and mounting block.
• Push one adjustable tube into the longer part of each handrail.
The mounting block should sit on the top step to hold the ladder
in place. Secure into handrail using (4) #10 1-1/4” screws in pre-
marked openings.
•
Secure each mounting block to the top step of the staircase using
(4) #10 1-1/4” screws per mounting block.
•
Fasten the shields to the handrails using
(8) #10 1-1/4” screws (4 per side).
OPEN
END
• Lubricate inside of long and short handrail posts
on step with liquid soap or lubricant.
• Attach handrails from step box (832402B) to
handrail posts by
pushing into posts. The more
curved part of the handrail is meant to be installed
in the long handrail post.
• Using (4) screws from step box (832402B)
hardware bag, secure handrails in place.
STEP 10
STEP 9 CONT.
If attaching Aqua Select® Gate System. Please refer to instructions
packed in carton marked 832406
