INSTALLATION INSTRUCTIONS

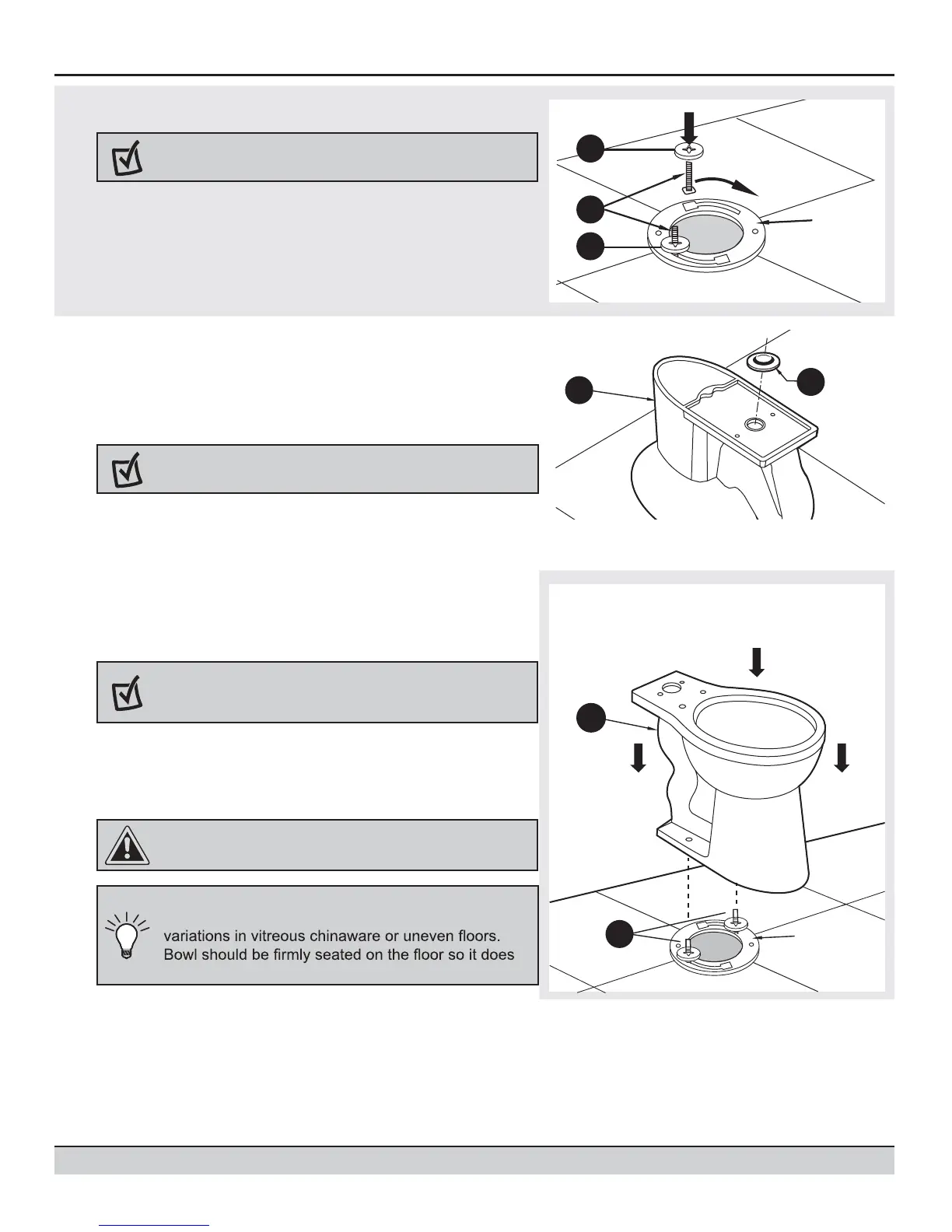

1. Install Floor Bolts
Insert floor flange bolts (AA) into toilet flange (not included)
with bolt heads down and threaded ends facing up. (Bolts
should be parallel to wall and 6 in. apart). Then, place plastic
disc nuts (BB) onto the floor flange bolts (AA) to hold it in place
while installing toilet.
Floor
Flange
AA
BB
BB
2. Install Wax Ring
Turn toilet bowl (A) upside down onto a cushioned surface.
Place wax ring (NN) over the raised outlet ring of the bowl.
Press firmly and slightly twist wax ring against bowl so the wax
adheres to the bowl.
A
NN
3. Position Bowl on Floor Flange
Gently lower the bowl (A) onto position with the floor flange bolts
(AA) protruding up through the holes in the base of the bowl.
Once bowl is in position, press down with a slight twisting
motion on the top center of the bowl, eventually applying
full body weight to evenly compress the wax ring to create a
watertight seal. Make sure the bowl is as level as possible.
CAUTION: Do not rock the bowl back and forth as
this may break the seal.
TIP: It may be necessary to use small wedges
(shims) under the edge of the bowl due to slight
not wobble or rock.
Floor
Flange
AA
A
NOTE: Inspect existing floor flange for damage. If it
is damaged, replace the flange before proceeding.
NOTE: If wax ring has an integral plastic flange, be
sure flange taper points away from the toilet.
NOTE: Keep the bowl level as it is lowered onto the
floor flange. You may need a second person to help
lift the bowl.
