aquaforte GPF-2500 - Parts List

10
PRESSURE FILTER VERSION 1.01 01/2022

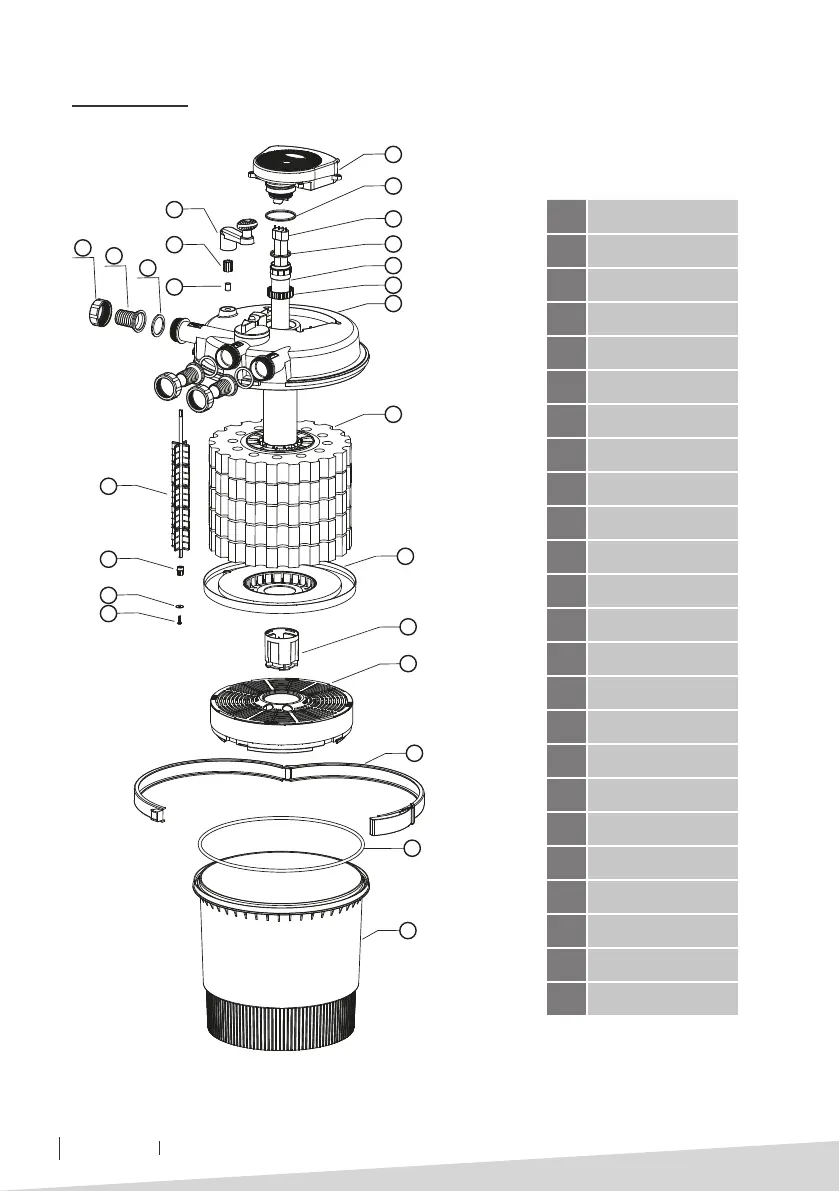

PARTS LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
UV head
Sleeve
UV lamp
O-ring 1
Quartz glass tube set
Fixing-nut
Lid
Sponge
Separate plate
Diversion pipe
Filter basket
Clamp
O-ring 2
Container
Screw
Washer
Down bearing
Clean gear set
Inlet&Outlet nut
Inlet&Outlet
Gasket
Upper bearing
Shaft connection
Cleaning handle
NameNo.
1 UV head
2 Ring
3 UV lamp
4 O-ring 1
5 Quartz glass tube set
6 Fixing-nut
7 Lid
8 Sponge
9 Separate plate
10 Diversion pipe
11 Filter basket
12 Clamp
13 O-ring 2
14 Container
15 Screw
16 Washer
17 Down Bearing
18 Clean gear set
19 Inlet&Outlet nut
20 Inlet&Outlet
21 Gasket
22 Upper bearing
23 Shaft connection
24 Cleaning handle
