Aquamatic HYDRAMATIC - Rope Alignment and String-Up; Left Hand Motor Unit Rope String-Up; Motor Side Rope Routing; Non-Motor Side Rope Routing

8

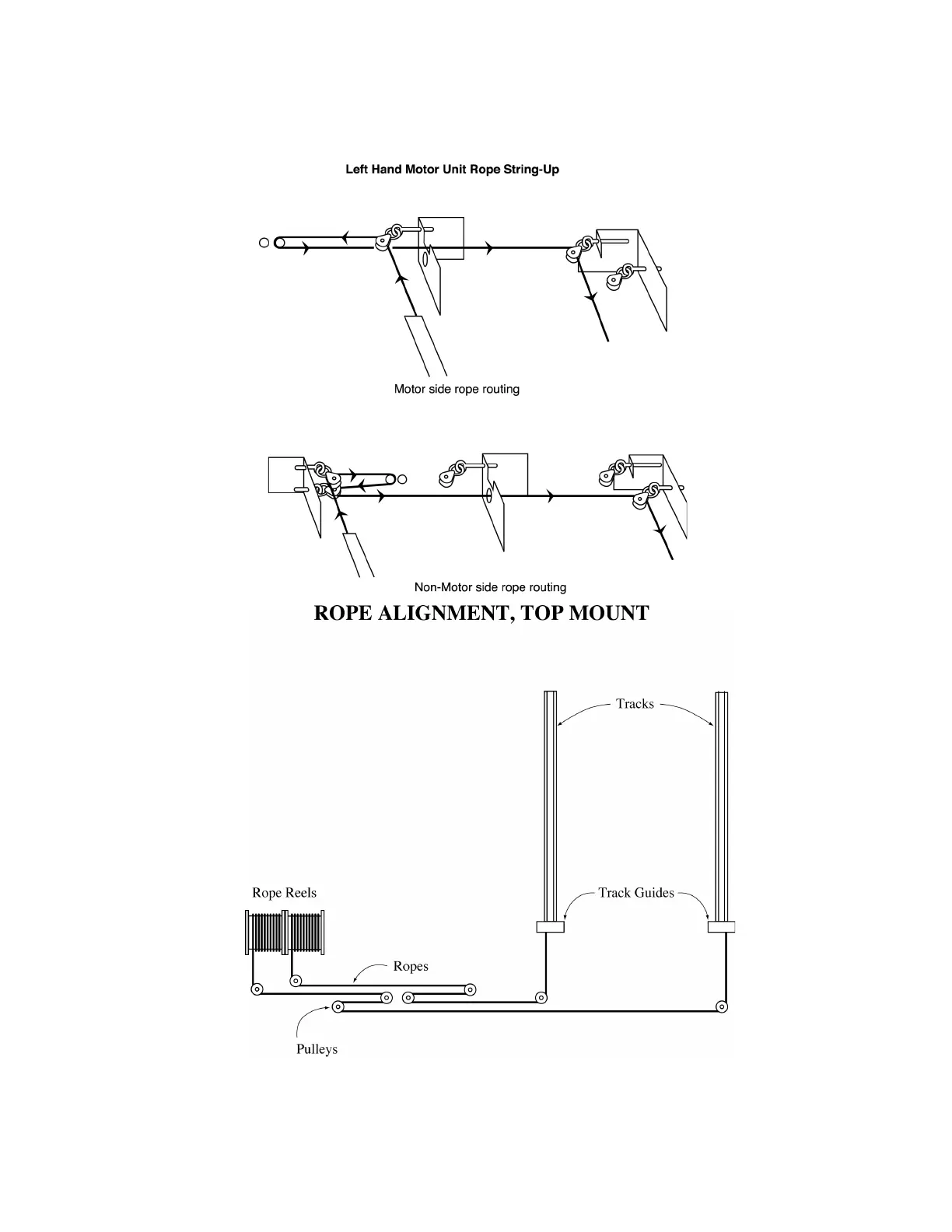

Left Hand Motor Unit Rope String-Up
Please note that the compensating pulley and pulley brackets are not to scale. This rendering is only
meant to show proper rope mounting.
