PAW-TG20C1E3STD PAW-TG20C1E3HI PAW-TG30C1E3STD PAWTG30C1E3HI PAWTG40C1E3STD
A 1535 1675 1590 1450 1920
B 180 220 175 250 250
C 300 340 270 370 370
D 880 1015 890 610 1070
G 780 945 740 800 990
H 1355 1435 1410 1205 1675
I 365 405 320 400 400
J 580 680 680 760 760
1 G 3/4 G 3/4 G1 G1 G1
2 G1 G1 G1 G5/4 G5/4
3 G 3/4 G 3/4 G 3/4 G 3/4 G 3/4
4 G1 G1 G1 G5/4 G5/4
5 G 3/4 G 3/4 G1 G1 G1

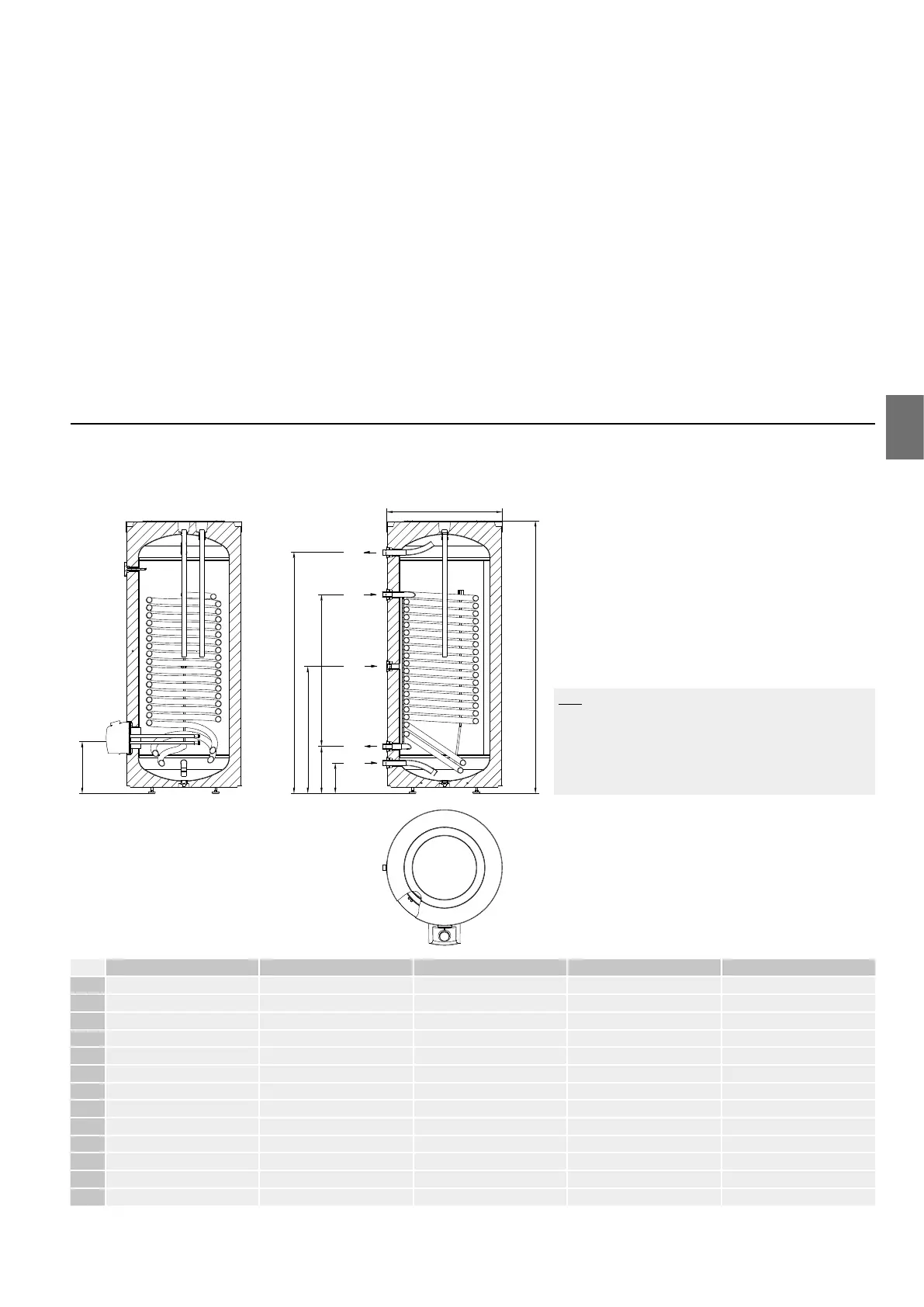

Image 1: Connection and installation dimensions of the storage tank [mm]
5
4
3
2
1
H
A
G
C D
B
KEY
1 Cold water inflow
2 Medium outlet from the heat exchanger
3 Circulation conduit
4 Medium inflow into the heat exchanger
5 Hot water outflow
INSTALLATION
Dear buyer, thank you for purchasing our product.
PRIOR TO THE INSTALLATION AND FIRST USE OF THE HOT WATER STORAGE
TANK, PLEASE READ THESE INSTRUCTIONS CAREFULLY.
This storage tank has been manufactured in compliance with the relevant Standards and tested by the relevant authorities as
indicated by the Safety Certificate and the Electromagnetic Compatibility Certificate. The technical characteristics of the product
are listed on the label attached to the protective cover.
The connection of the storage tank to the plumbing and power networks must be carried out by qualified staff only. All repairs
and maintenance work in the interior of the storage tank, as well as limestone removal or testing or replacement of the corrosion
protection anode, may only be carried out by an approved maintenance service provider.
The hot water storage tank is designed in a manner which allows using the following heating sources, via a heat exchanger:
• Central heating hot-water system,
• Solar power,
• Heating pump.
The heater should be installed in a dry room that is not subject to freezing conditions, preferably in the vicinity of other sources
of heating (e.g. boiler room). Prior to installation screw on the enclosed adjustable legs. Level the storage tank longitudinally and
transversally by rotating the adjustable legs.
512561
35
EN
