ASSEMBLY INSTRUCTIONS
4

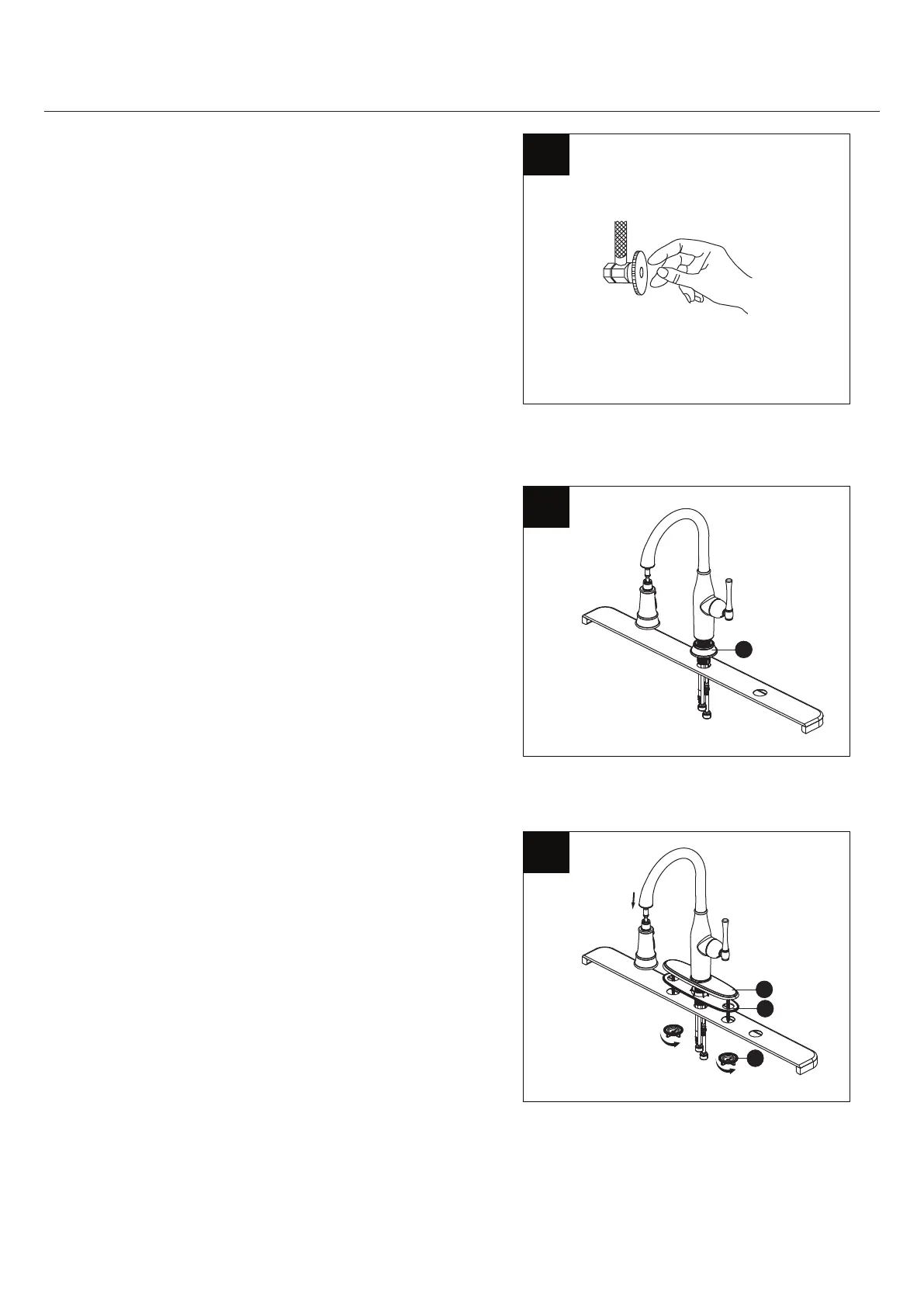

2. For single hole installation, refer to diagram 2A.
Place flange (I) on the sink (not included).
For 3 hole installation refer to diagram 2B. Place
base plate (E) and escutcheon (D) on the sink. Do
not use flange (I) if you are using the escutcheon
for 3 Hole installation. From underneath the sink,
hand tighten mounting nut (R).
1. Shut off water supplies. Remove old faucet.
1
DO NOT USE THE FLANGE (I) IF YOU ARE
USING THE ESCUTCHEON
2A
I
2B
D
E
R
