With deck plate
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
3a
4

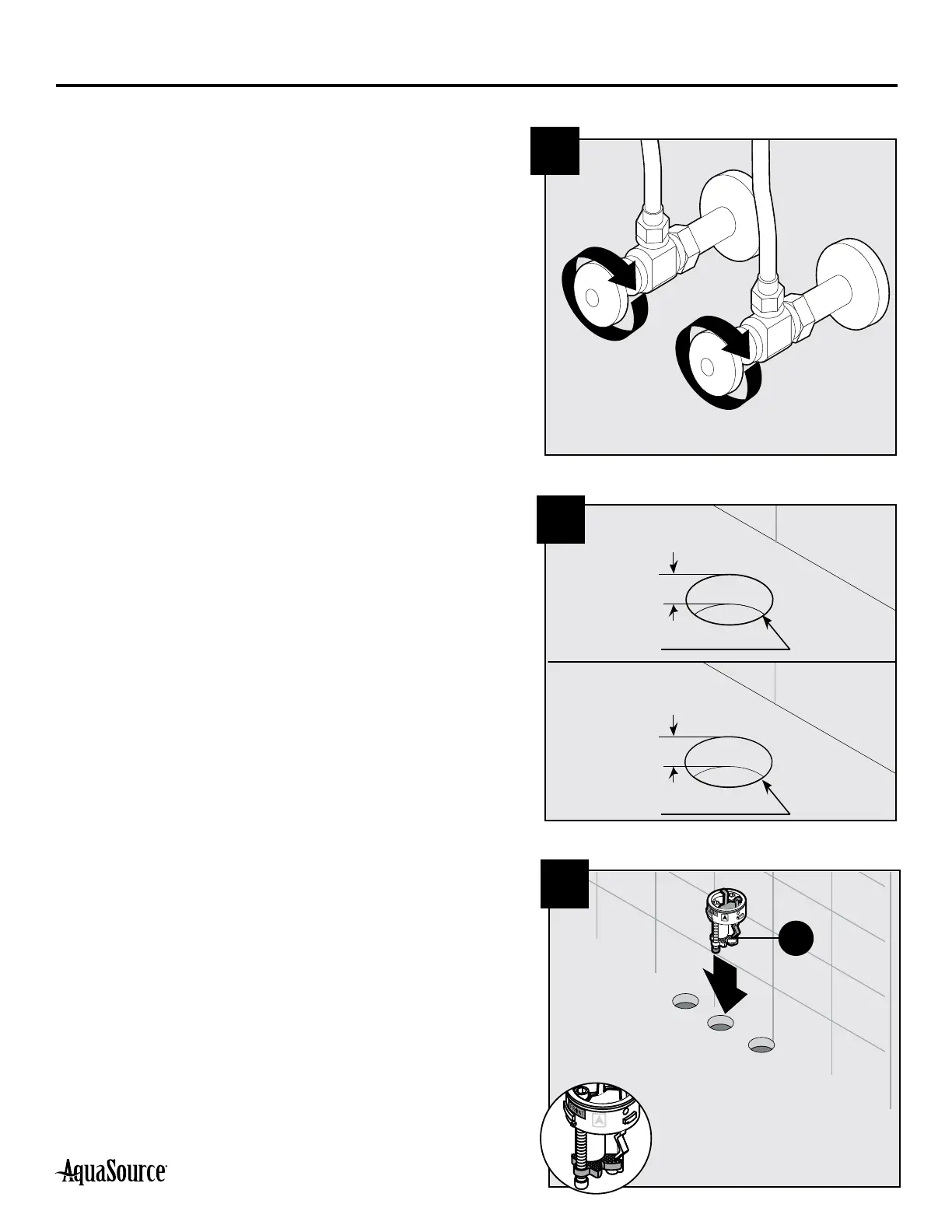

ASSEMBLY INSTRUCTIONS
1. Turn off water supply. Remove existing
faucet if necessary.
2. Check for the proper thickness of the sink.
Without deck plate:
Insert the base (I) into sink. “FR
£
NT”
on the base (I) must face the front
of the sink. Rotate the two half-moon
locking nuts inward before inserting
the base (I) into the sink.
3a.
