TankmaticSmartRelay

Aquatech‐PressmainInstructionmanual\TankmaticsmartrelayMG‐LT  9
Stillingtubewhereused:Cutthestillingtubetotherequiredlength;gluestillingtubetolowerflange
ofconnectionboxormonitor.Ifadequateheightisavailabledothisbeforemountingtheflangeontop
oftank.Alternativelythiscouldbedonefrominsideanemptytank.

Sensor weight
Max. Distance 5.0 m

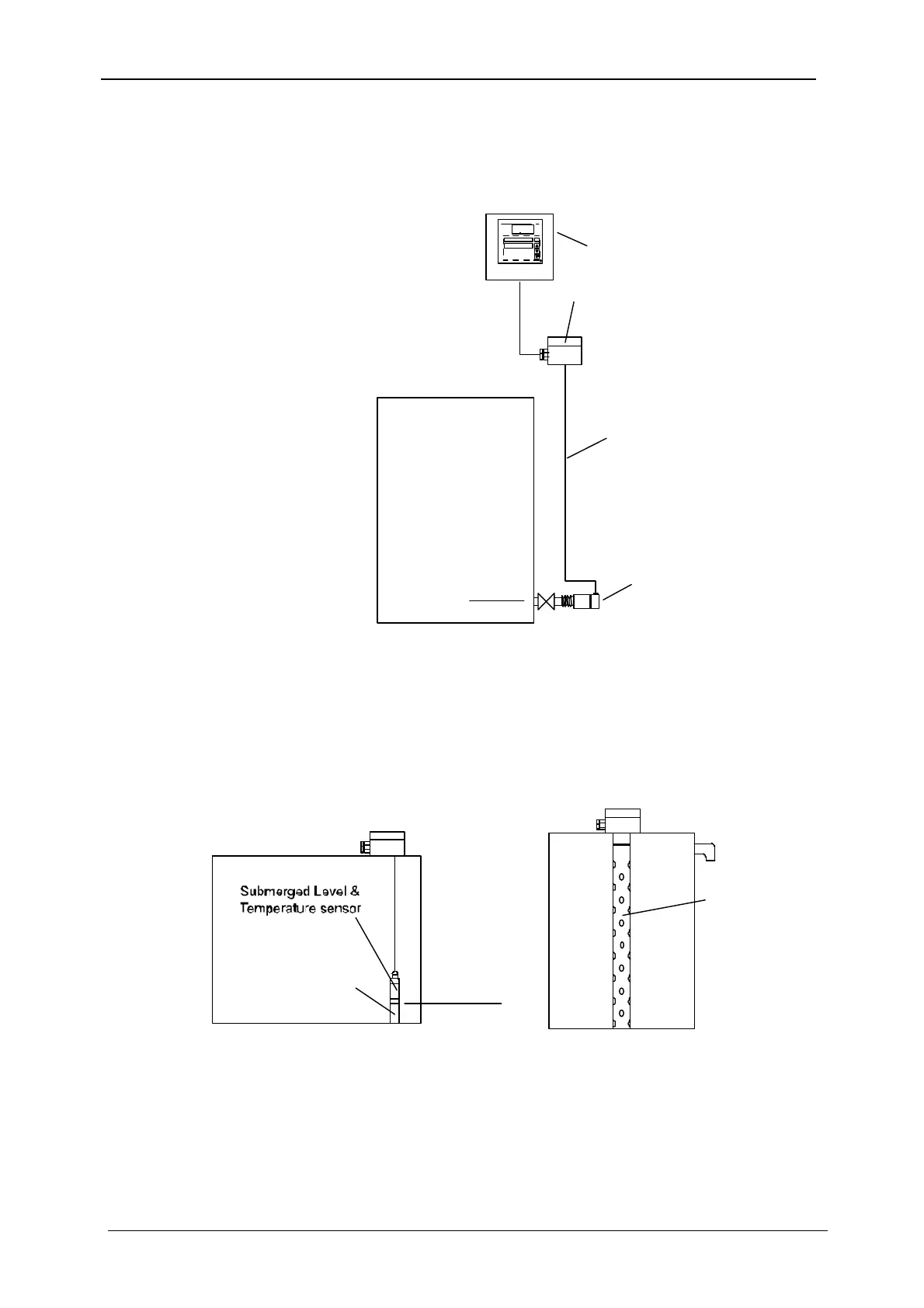

Fig 1a Tank with standard Level and Temperature sensors
Monitoring unit
Standard Level & Temperature
sensor
2" Stilling tube
containing
submerged level
and temperature
sensors
Fig 1b Tank with submersible Level and Temperature sensors
0.0 Mtr ref.
0.0 Mtr ref.
Wall mounted connection box
