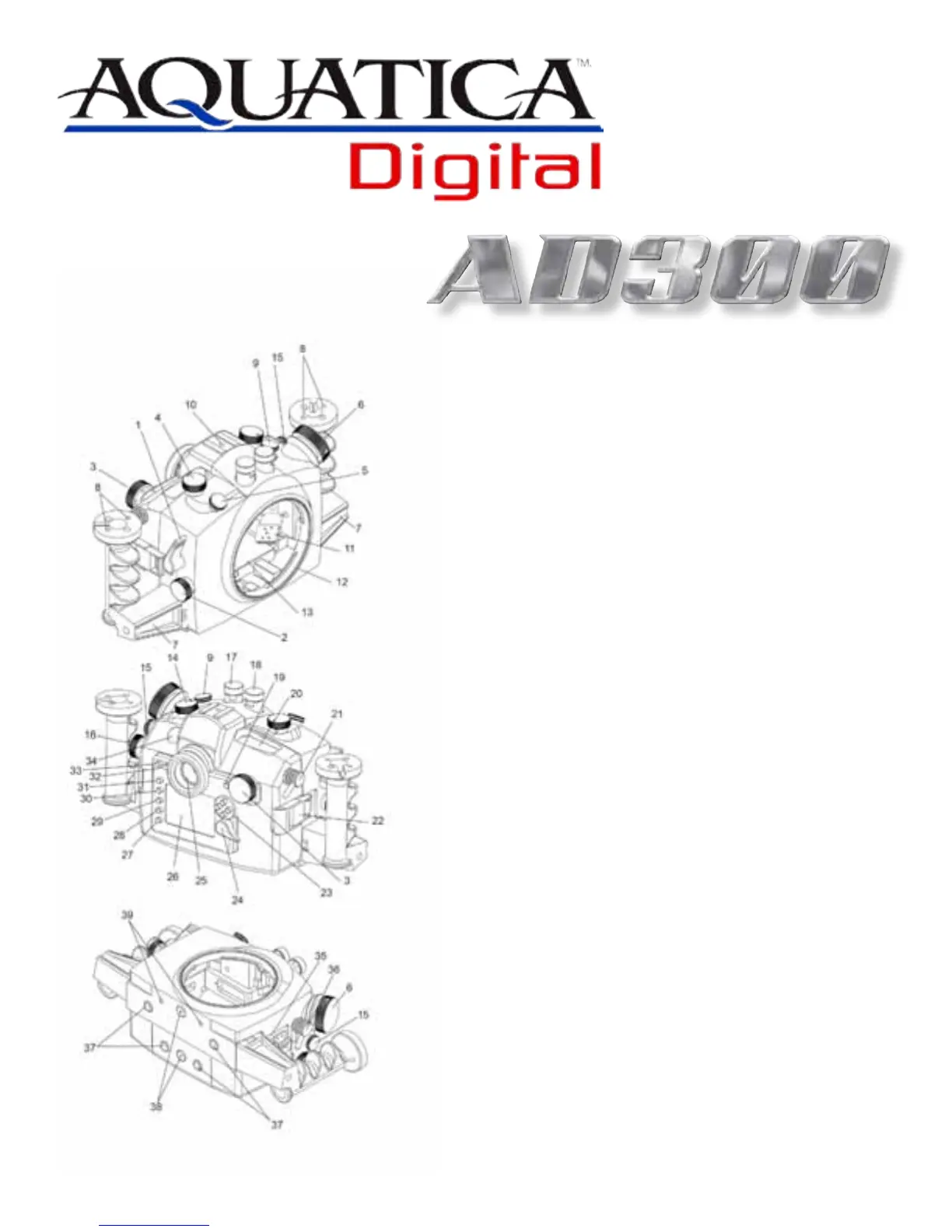

1. SHUTTER RELEASE LEVER
2. SUB -COMMAND INPUT KNOB
3. MAIN COMMAND DIAL CONTROL
4. MODE SELECTOR / FORMAT BUTTON
& EXPOSURE COMPENSATION / RESET BUTTON KNOB
5. ON / OFF ILLUMINATOR CONTROL KNOB
6. FOCUS/ZOOM KNOB
7. GRIPS (X2)
8. HOLES (1/4” X 20) FOR ARM’S BASE BRACKETS
9. FLASH EXPOSURE / FLASH MODE CONTROL
10. ACCESSORY MOUNTING HOLE (1/4” X 20)
11. HOTSHOE CONNECTOR
12. BAYONNET MOUNTING FLANGE
13. MOUNTING TRAY (REMOVABLE)
14. ISO / WB / QUAL/RESET CONTROL KNOB
15. RELEASE MODE DIAL KNOB (LIVE VIEW ACCESS)
16. RELEASE MODE LOCK KNOB (LIVE VIEW ACCESS)
17. MAIN BULKHEAD FOR FLASH CONNECTOR (*A)
18. SECONDARY BULKHEAD FOR FLASH CONNECTOR (*B)
19. AF ON BUTTON
20. TOP LCD DISPLAY WINDOW
21. AF / AE LOCK LEVER
22. LATCHES (2X)
23. FOCUS AREA / MULTI SELECTOR BUTTONS
24. AUTOFOCUS MODE SELECTOR KNOB
25. VIEWFINDER
26. REAR VIEW DISPLAY WINDOW
27. OK BUTTON
28. PLAYBACK ZOOM IN BUTTON
29. THUMBNAIL / PLAYBACK ZOOM OUT BUTTON
30. PROTECT COMMAND BUTTON
31. MENU ACCESS BUTTON
32. DELETE / FORMAT BUTTON
33. PLAYBACK BUTTON
34. RELEASE MODE SELECTOR WINDOW
35. FOCUS MODE SELECTOR LEVER
36. LENS LOCK RELEASE LEVER
37. RUBBER ANTI SKID PADS
38. SACRIFICIAL ANODES
39. MOUNTING HOLES (1/4” X 20) FOR STROBE TRAY
*A: Bulkheads are available in different conguration and may vary from illustration.
*B: The secondary bulkhead can be used in conjunction with remote control # 19300
to trigger the camera .
