Arbiter Systems, Inc. · 1 324 Vendels Circle, Suite 1 21 · Paso Robles, CA 93446 · USA
Tel: +1 .805.237.3831 · Fax: +1 .805.238.571 7 · E-mail: sales@arbiter.com · Internet: http://www.arbiter.com
3
TIMING AND FREQUENCY PRODUCTS
Interface
Operator
Display 2 x 20 character supertwist LCD
(Models 1 084B/C only)
20 mm (0.8 in) LED; 9 digits
(Model 1 084C only)
Functions Time: UTC or local
Position: latitude, longitude, altitude
Receiver and clock status
1 PPS (input) deviation
Event time
Status LEDs Operate (green)
On Line (green)
Unlocked (red)
Fault (red)
Keyboard Eight keys (Models 1 084B/C only)
Setup Local time offset
Output code select: Local/UTC
Recorder output A
Daylight Saving Time:
On/Off/Automatic
Backlight control: On/Off/Automatic
Event input: Event/1 PPS
Programmable Pulse setup
Antenna delay
Clock offset
Out-of-Lock time: 1 min. to 99 minutes,
Off, or Zero Delay
Auto-Survey: On/Off, Survey duration
Position Hold: On/Off, Position
Auto/Manual
Option Configuration and Setup
Serial port: RS-232
System
RS-232 1 200 baud to 1 9,200 baud; 7 or 8 data
bits; 1 or 2 stop bits; even/odd/no parity
Broadcast modes include ASCII,
Extended ASCII, ASCII with Time
Quality, and Vorne (output once
every second), Status (output on
change of Status) and Event (output
on an Event)
Male 9-pin D-sub; Second port
available (order number 1 084opt1 9)
RS-422/485 Transmit only
Power Requirements
Standard (Option 07)
Voltage 85 Vac to 264 Vac, 47 Hz to 440 Hz,
20 VA max. or 1 10 to 370 Vdc, 1 5 W max.
Inlet IEC-320 with fuse and mating
cordset. Specify cordset P01 - P1 0
General
Physical
Size 1 RU rack mount or tabletop; 260 mm
deep FMS. Rack mounts included
508 mm x 381 mm x 203 mm
(20 in x 1 5 in x 8 in), shipping
Weight 2 kg (4.5 lbs), net
5.5 kg (1 2 lbs), shipping
Antenna 0.75 in pipe (1 in - 1 4 marine) thread
Cable Connection: F-type
80 mm hex (across flats) x 84 mm
(3.2 in x 3.3 in)
1 70 grams (6.0 oz)
Antenna Cable RG-6 type, 1 5 m (50 ft) provided
Weight: 0.69 kg (1 .52 lbs) per 1 5 m
Environmental
Temperature Operating: 0 °C to + 50 °C
(- 20 °C to + 70 °C typical)
Nonoperating: - 40 °C to + 75 °C
Humidity Noncondensing
EMC Radiated susceptibility: passes
walkie-talkie test
Conducted emissions: power supply
complies with FCC 20780, Class A
and VDE 0871 /6.78 Class A
Surge withstand capability (SWC),
power inlet: designed to meet
ANSI/IEEE C37.90-1 and IEC 801 -4
Certifications and Approvals
CE mark/label and certificate

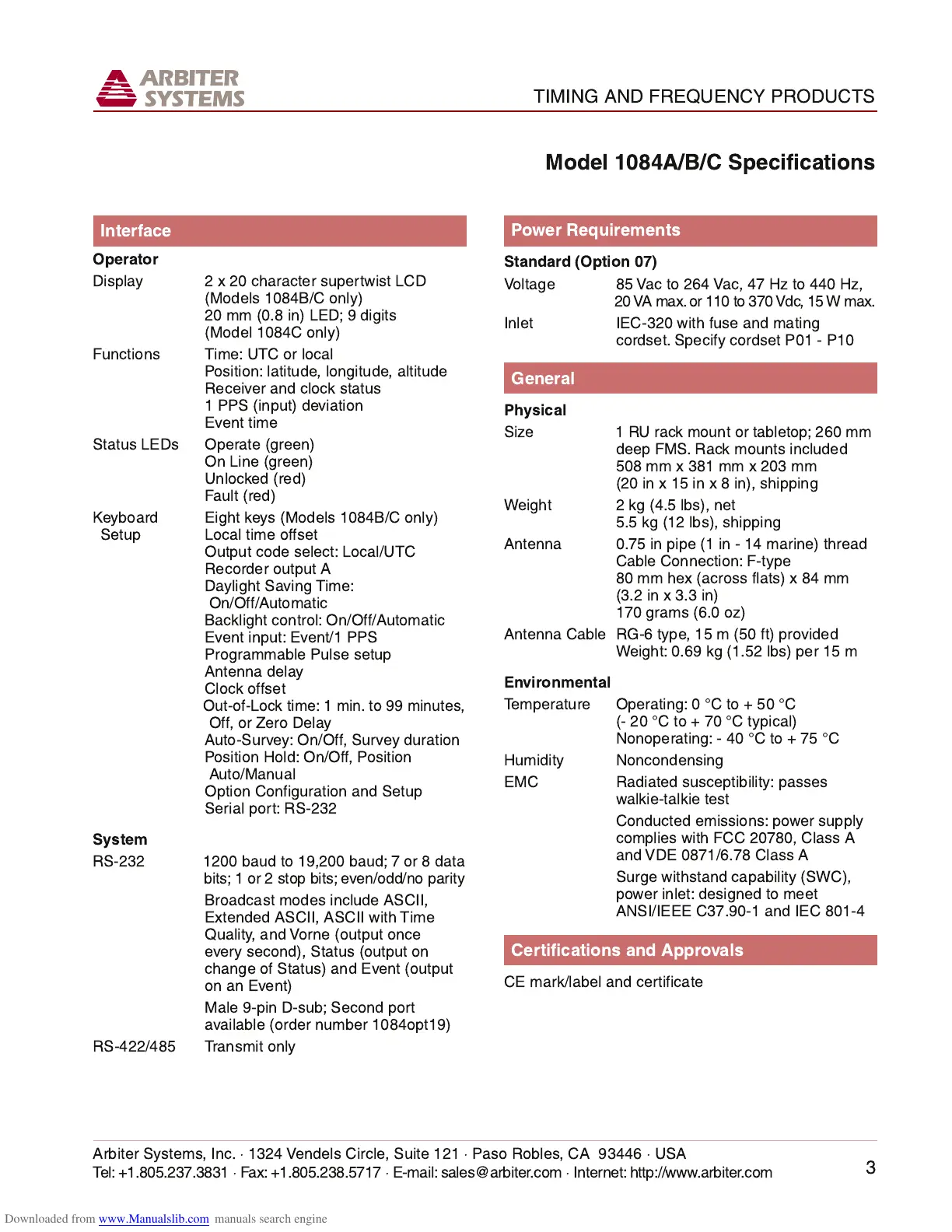

Model 1 084A/B/C Specifications
