Arbiter Systems, Inc. · 1 324 Vendels Circle, Suite 1 21 · Paso Robles, CA 93446 · USA
Tel: +1 .805.237.3831 · Fax: +1 .805.238.571 7 · E-mail: sales@arbiter.com · Internet: http://www.arbiter.com
4

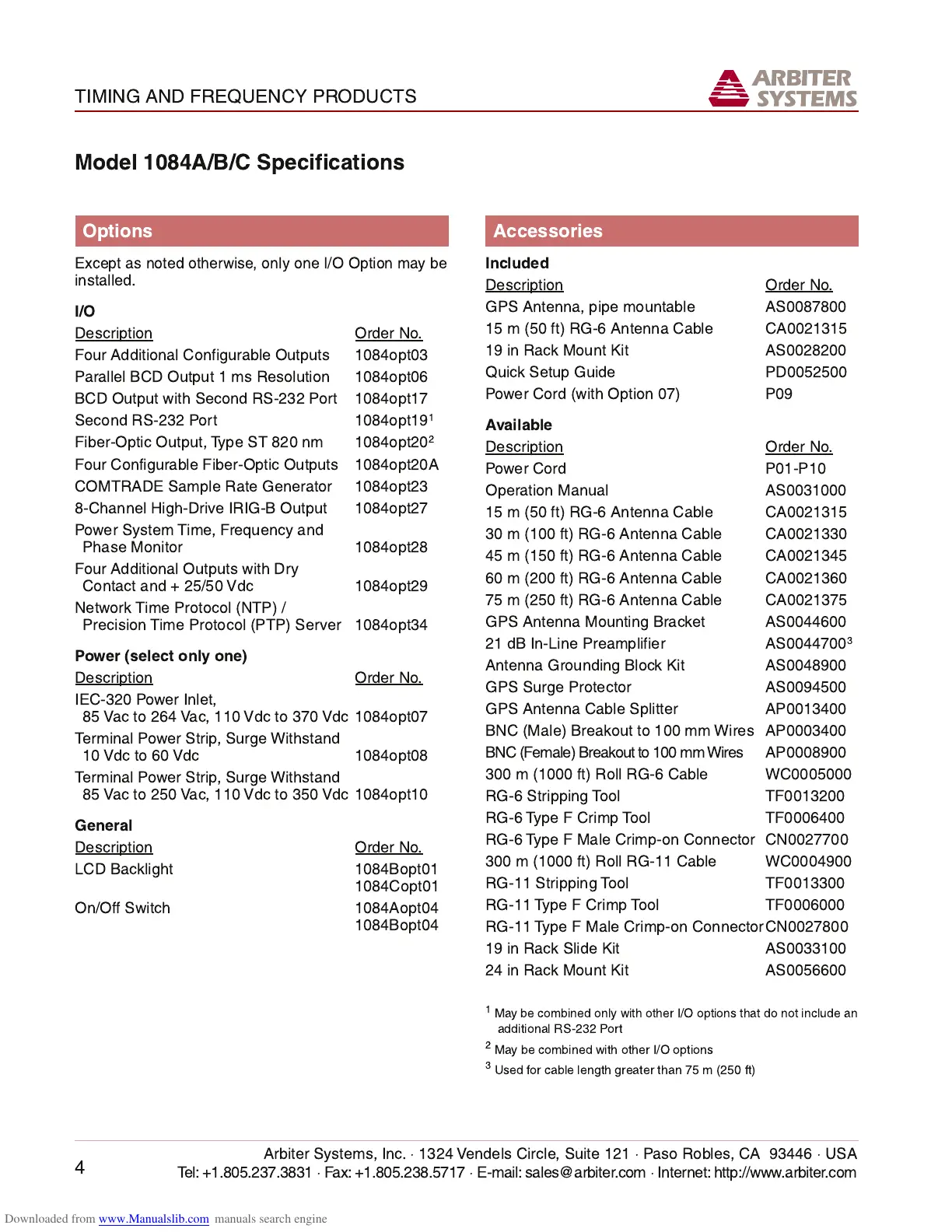

TIMING AND FREQUENCY PRODUCTS
Options
Except as noted otherwise, only one I/O Option may be
installed.
I/O
Description Order No.
Four Additional Configurable Outputs 1 084opt03
Parallel BCD Output 1 ms Resolution 1 084opt06
BCD Output with Second RS-232 Port 1 084opt1 7
Second RS-232 Port 1 084opt1 9
1
Fiber-Optic Output, Type ST 820 nm 1 084opt20
2
Four Configurable Fiber-Optic Outputs 1 084opt20A
COMTRADE Sample Rate Generator 1 084opt23
8-Channel High-Drive IRIG-B Output 1 084opt27
Power System Time, Frequency and
Phase Monitor 1 084opt28
Four Additional Outputs with Dry
Contact and + 25/50 Vdc 1 084opt29
Network Time Protocol (NTP) /
Precision Time Protocol (PTP) Server 1 084opt34
Power (select only one)
Description Order No.
IEC-320 Power Inlet,
85 Vac to 264 Vac, 1 1 0 Vdc to 370 Vdc 1 084opt07
Terminal Power Strip, Surge Withstand
1 0 Vdc to 60 Vdc 1 084opt08
Terminal Power Strip, Surge Withstand
85 Vac to 250 Vac, 1 1 0 Vdc to 350 Vdc 1 084opt1 0
General
Description Order No.
LCD Backlight 1 084Bopt01
1 084Copt01
On/Off Switch 1 084Aopt04
1 084Bopt04
Accessories
Included
Description Order No.
GPS Antenna, pipe mountable AS0087800
1 5 m (50 ft) RG-6 Antenna Cable CA0021 31 5
1 9 in Rack Mount Kit AS0028200
Quick Setup Guide PD0052500
Power Cord (with Option 07) P09
Available
Description Order No.
Power Cord P01 -P1 0
Operation Manual AS0031 000
1 5 m (50 ft) RG-6 Antenna Cable CA0021 31 5
30 m (1 00 ft) RG-6 Antenna Cable CA0021 330
45 m (1 50 ft) RG-6 Antenna Cable CA0021 345
60 m (200 ft) RG-6 Antenna Cable CA0021 360
75 m (250 ft) RG-6 Antenna Cable CA0021 375
GPS Antenna Mounting Bracket AS0044600
21 dB In-Line Preamplifier AS0044700
3
Antenna Grounding Block Kit AS0048900
GPS Surge Protector AS0094500
GPS Antenna Cable Splitter AP001 3400
BNC (Male) Breakout to 1 00 mm Wires AP0003400
BNC (Female) Breakout to 100 mm Wires AP0008900
300 m (1 000 ft) Roll RG-6 Cable WC0005000
RG-6 Stripping Tool TF001 3200
RG-6 Type F Crimp Tool TF0006400
RG-6 Type F Male Crimp-on Connector CN0027700
300 m (1 000 ft) Roll RG-1 1 Cable WC0004900
RG-1 1 Stripping Tool TF001 3300
RG-1 1 Type F Crimp Tool TF0006000
RG-1 1 Type F Male Crimp-on ConnectorCN0027800
1 9 in Rack Slide Kit AS00331 00
24 in Rack Mount Kit AS0056600
1
May be combined only with other I/O options that do not include an
additional RS-232 Port
2
May be combined with other I/O options
3
Used for cable length greater than 75 m (250 ft)
Model 1 084A/B/C Specifications
