X10 OFF

90Hz X 1 = 90Hz

X10 OFF

90Hz X 1 = 90Hz

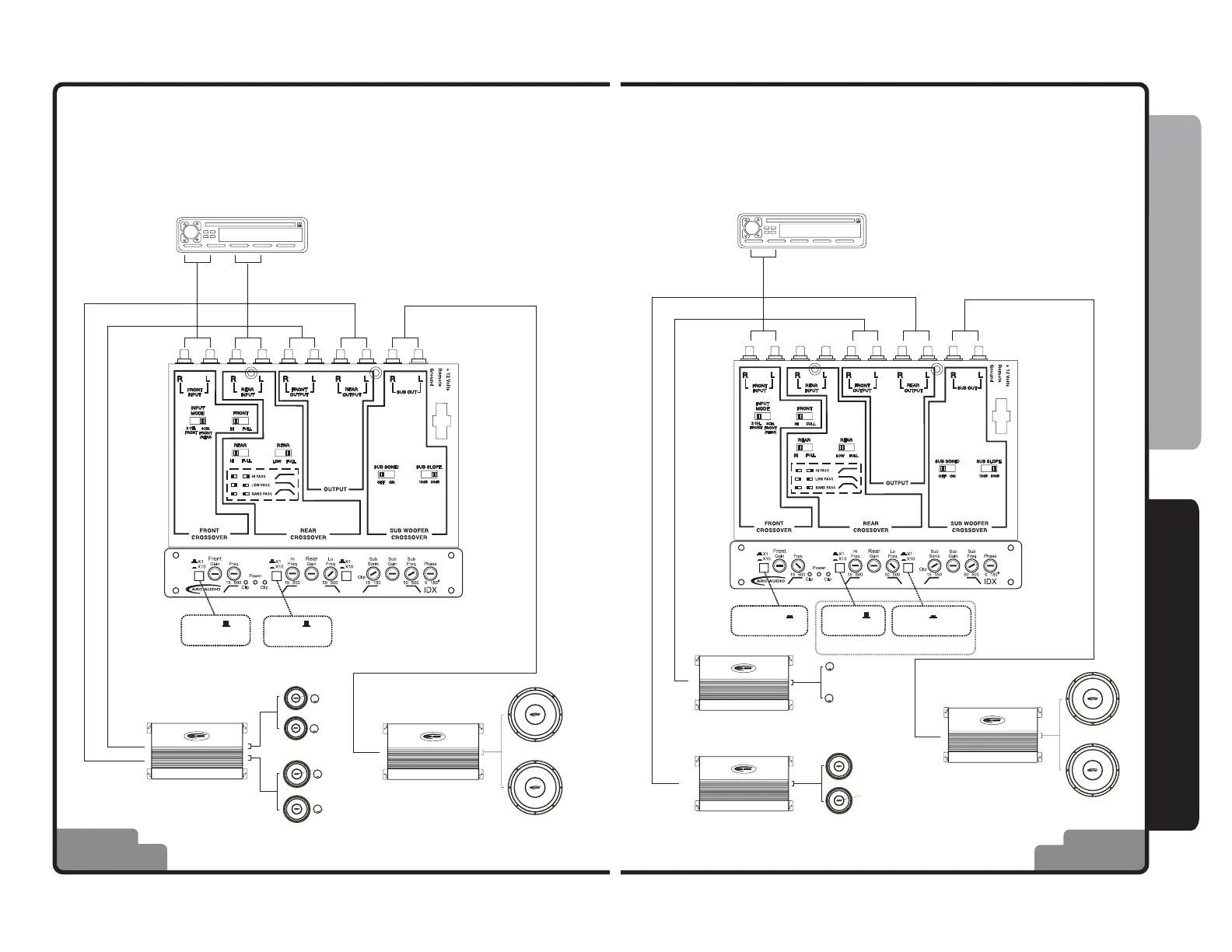

2-WAY FADING FRONT AND REAR

NOTE: THE CONTROL POSITIONS SHOWN ARE

ONLY ONE SUGGESTED CONFIGURATION. YOUR

SYSTEM MAY REQUIRE DEFERENT SETTINGS.

IDX

X10 on

500Hz X10 = 5000Hz

X10 OFF

90Hz X 1 = 90Hz

X10 ON

500Hz X 10 = 5000Hz

IN BAND PASS MODE

90Hz TO 5000Hz

3-WAY WITH ACTIVE FILTERING

FOR MIDS AND TWEETERS

NOTE: THE CONTROL POSITIONS SHOWN ARE

ONLY ONE SUGGESTED CONFIGURATION. YOUR

SYSTEM MAY REQUIRE DEFERENT SETTINGS.

XEQ IDX

IDX
