INSTALLATION
Electrical connection
Warning!
All electrical work should be carried out by a
suitably qualified and authorised electrician.
No alterations or wilful changes in the electric-
ity supply should be carried out.
Fitting guidelines
The oven is manufactured to work with
three-phase alternating current (220V-
240V/50Hz).The connection diagram is also
found on the cover of the connection box.
Remem-ber that the connection wire should
match the connection type and the power
rating of the oven.
The connection cable must be secured in a
strain-relief clamp.
Warning!
Remember to connect the safety circuit to the
connection box terminal marked with .The
electricity supply for the oven must have a
safety switch which enables the power to be
cut off in case of emergency.The distance
between the working contacts of the safety
switch must be at least 3 mm.
Before connecting the oven to the power
supply it is important to read the informa-
tion on the data plate and the connection
diagram.

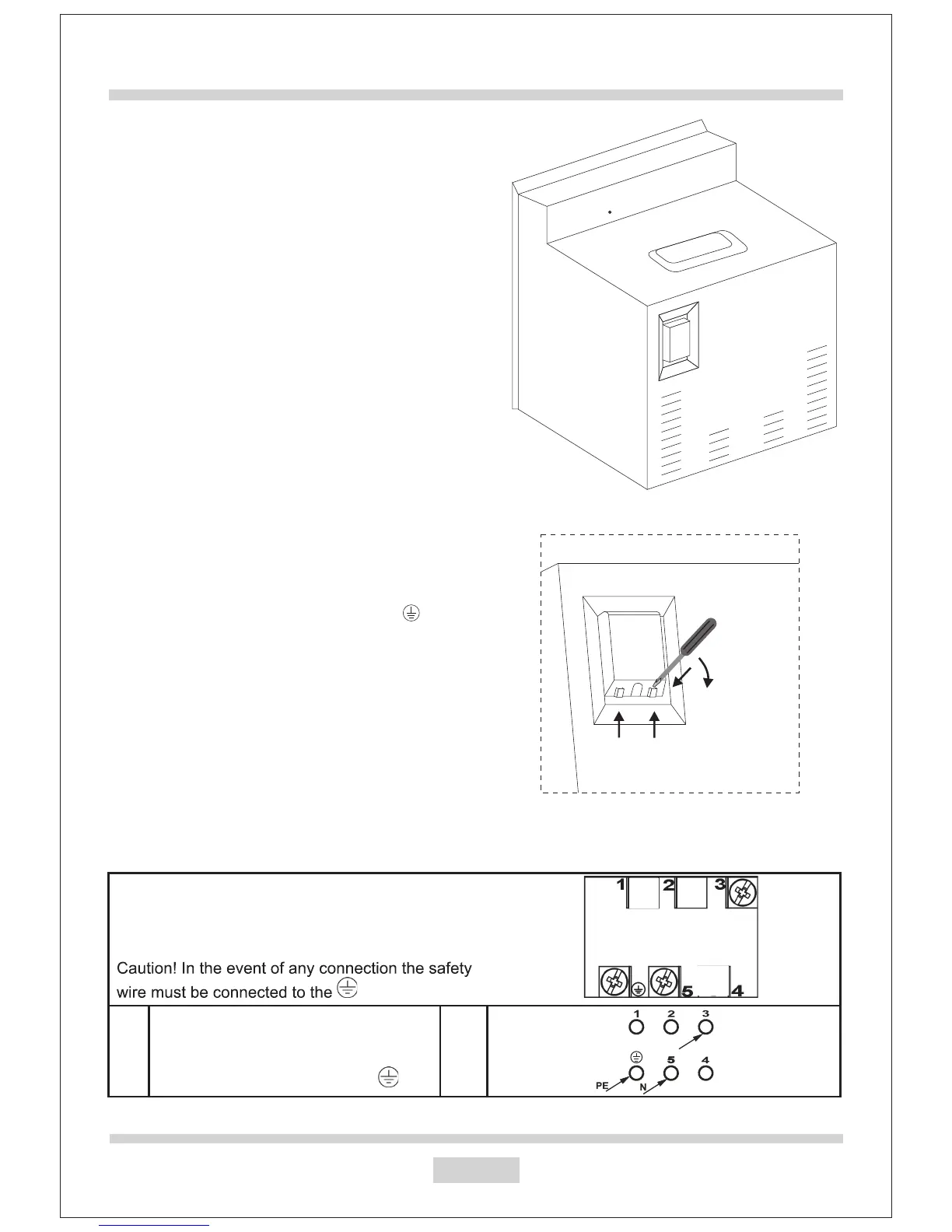

CONNECTION DIAGRAM
Caution!Voltage of heating elements 220V～240V
PE terminal
For 220V-240V earthed one-phase
connection ,L (Brown wire)connect
to 3 and N(blue wire) to 5,
safety wire (Yellow-green)to
L
