Arcam Alpha 7 Handbook

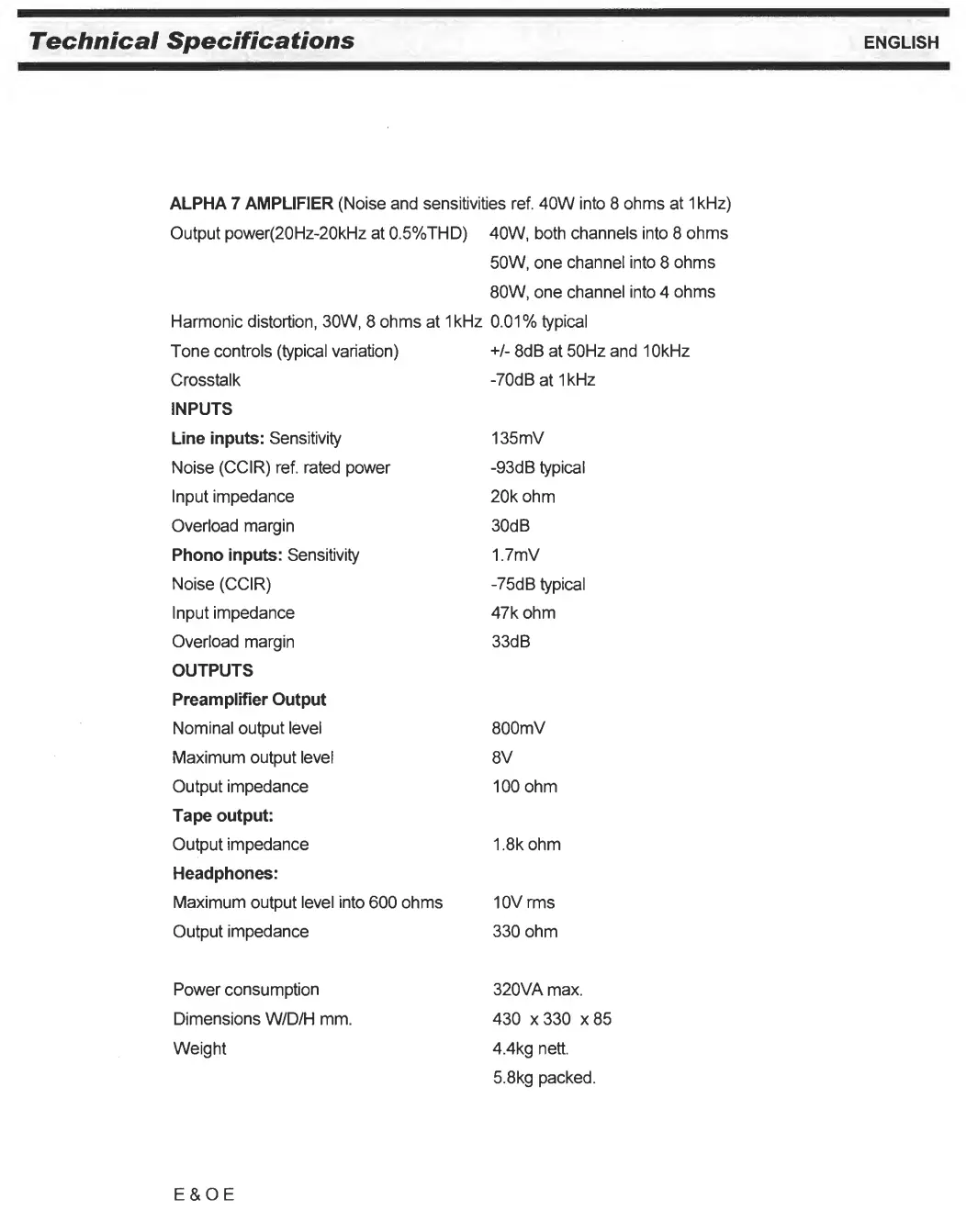

Technical Specifications
ENGLISH
ALPHA 7 AMPLIFIER (Noise and sensitivities ref. 40W into 8 ohms at 1kHz)
Output power(20Hz-20kHz at 0.5%THD) 40W, both channels into 8 ohms
SOW, one channel into 8 ohms
80W, one channel into 4 ohms
Harmonic distortion, SOW, 8 ohms at 1kHz 0.01% typical
Tone controls (typical variation) +/- 8dB at 50Hz and 10kHz
Crosstalk -70dB at 1 kHz
INPUTS
Line inputs: Sensitivity
Noise (CCIR) ref. rated power
Input impedance
Overload margin
Phono inputs: Sensitivity
Noise (CCIR)
Input impedance
Overload margin
OUTPUTS
Preamplifier Output
Nominal output level
Maximum output level
Output impedance
Tape output:
Output impedance
Headphones:
Maximum output level into 600 ohms
Output impedance
135mV
-93dB typical
20k ohm
30dB
1.7mV
-75dB typical
47k ohm
33dB
800mV
8V
100 ohm
1.8k ohm
10V rms
330 ohm
Power consumption
Dimensions W/D/H mm.
Weight
320VA max.
430 x330 x85
4.4kg nett.
5.8kg packed.
E&OE

Arcam Alpha 7 Specifications

General

Type	CD Player
Frequency Response	20Hz - 20kHz ±0.5dB
Output Voltage	2V RMS
Digital Output	Coaxial
Weight	4.5kg
DAC	Delta-Sigma
Dimensions	430 x 85 x 290mm
