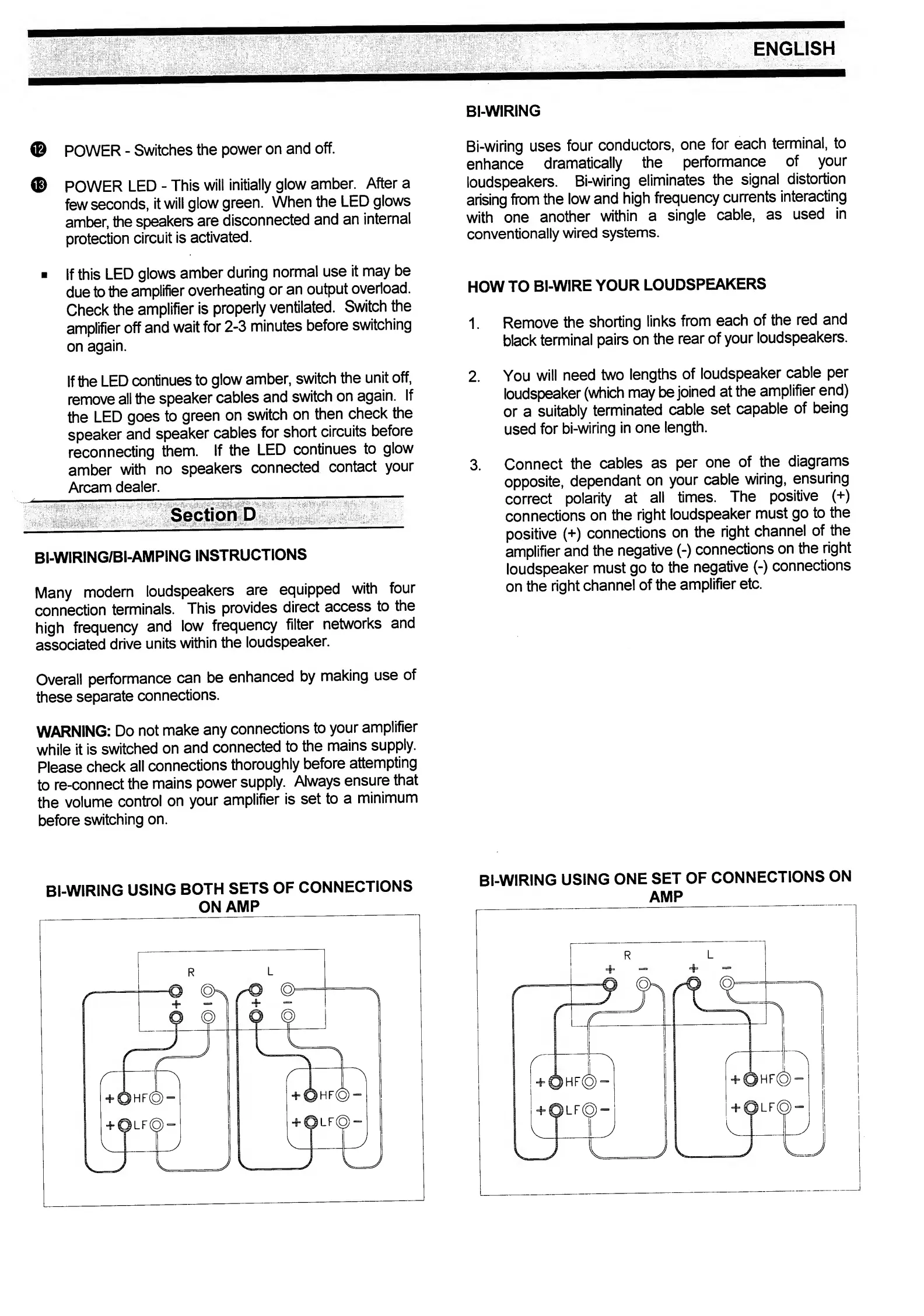

Page #7 background imageLoading...
Page #7 background image
®
POWER
-
Switches
the
power
on
and
off.
®
POWER
LED
-
This
will
initially
glow
amber.
After
a
few
seconds,
it
will
glow
green.
When
the
LED
glows
amber,
the
speakers
are
disconnected
and
an
internal
protection
circuit
is
activated.
â–
If
this
LED
glows
amber
during
normal
use
it
may
be
due
to
the
amplifier
overheating
or
an
output
overload.
Check
the
amplifier
is
properly
ventilated.
Switch
the
amplifier
off
and
wait
for
2-3
minutes
before
switching
on
again.
If
the
LED
continues
to
glow
amber,
switch
the
unit
off,
remove
all
the
speaker
cables
and
switch
on
again.
If
the
LED
goes
to
green
on
switch
on
then
check
the
speaker
and
speaker
cables
for
short
circuits
before
reconnecting
them.
If
the
LED
continues
to
glow
amber
with
no
speakers
connected
contact
your
Arcam
dealer^__
Section
D:
BI-WIRING/BI-AMPING
INSTRUCTIONS
Many
modern
loudspeakers
are
equipped
with
four
connection
terminals.
This
provides
direct
access
to
the
high
frequency
and
low
frequency
filter
networks
and
associated
drive
units
within
the
loudspeaker.
Overall
performance
can
be
enhanced
by
making
use
of
these
separate
connections.
WARNING:
Do
not
make
any
connections
to
your
amplifier
while
it
is
switched
on
and
connected
to
the
mains
supply.
Please
check
all
connections
thoroughly
before
attempting
to
re-connect
the
mains
power
supply.
Always
ensure
that
the
volume
control
on
your
amplifier
is
set
to
a
minimum
before
switching
on.
BI-WIRING
Bi-wiring
uses
four
conductors,
one
for
each
terminal,
to
enhance
dramatically
the
performance
of
your
loudspeakers.
Bi-wiring
eliminates
the
signal
distortion
arising
from
the
low
and
high
frequency
currents
interacting
with
one
another
within
a
single
cable,
as
used
in
conventionally
wired
systems.
HOW
TO
BI-WIRE
YOUR
LOUDSPEAKERS
1.
Remove
the
shorting
links
from
each
of
the
red
and
black
terminal
pairs
on
the
rear
of
your
loudspeakers.
2.
You
will
need
two
lengths
of
loudspeaker
cable
per
loudspeaker
(which
may
be
joined
at
the
amplifier
end)
or
a
suitably
terminated
cable
set
capable
of
being
used
for
bi-wiring
in
one
length.
3.
Connect
the
cables
as
per
one
of
the
diagrams
opposite,
dependant
on
your
cable
wiring,
ensuring
correct
polarity
at
all
times.
The
positive
(+)
connections
on
the
right
loudspeaker
must
go
to
tiie
positive
(+)
connections
on
the
right
channel
of
the
amplifier
and
the
negative
(-)
connections
on
the
right
loudspeaker
must
go
to
the
negative
(-)
connections
on
the
right
channel
of
the
amplifier
etc.
