CP500 Operation Manual 6

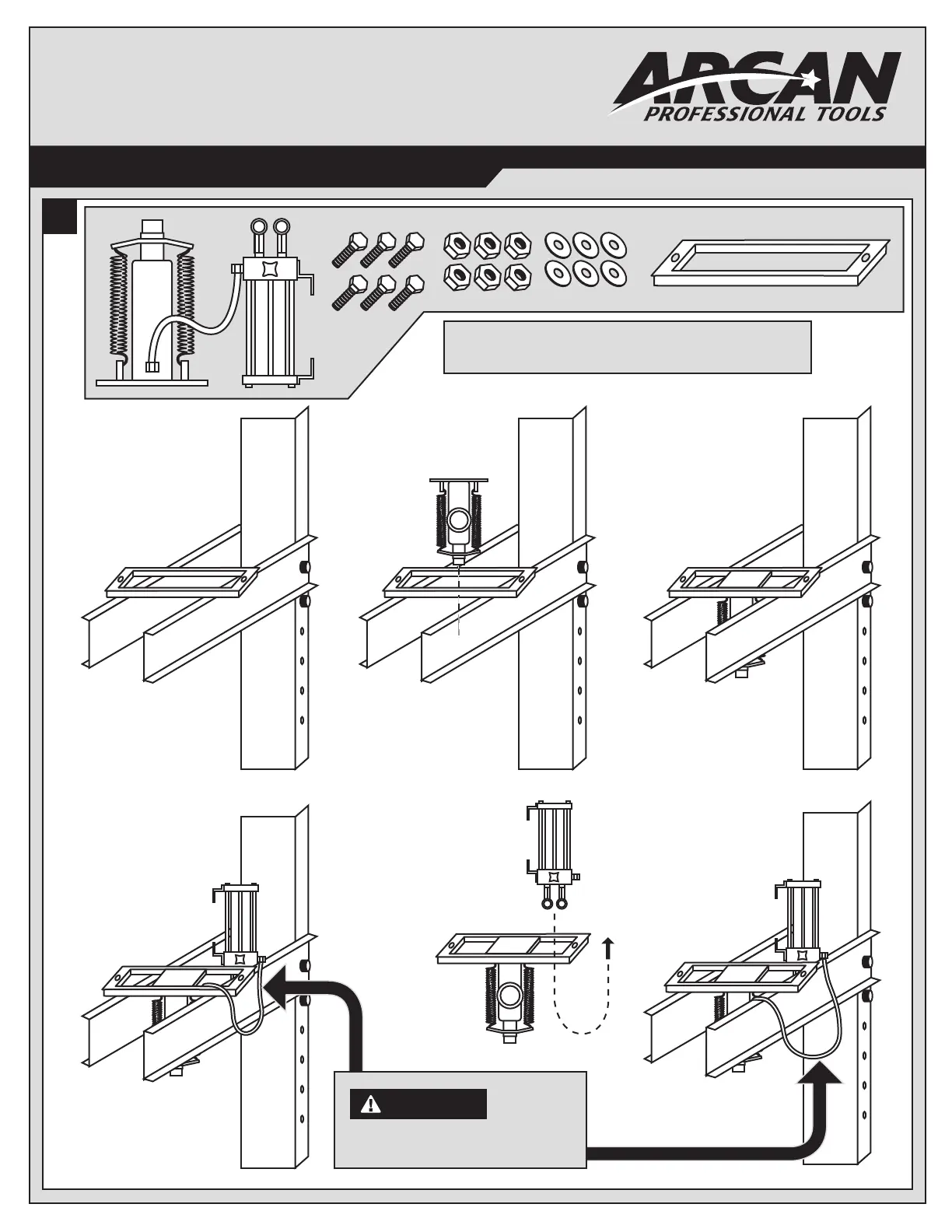

RAM FRAME ASSEMBLY INSTRUCTIONS
8
This end up
1. Place ram frame
sideways on bed.
4. Rest pump against
press and ram
frame for support.
5. Pump must be threaded
through ram frame and
back out so the hose is
on the outside of the frame.
See Step 6.
6. Once pump and
ram are on press
bed as shown, you
are ready to move
on to mounting the
pump assembly.
2. Drop ram into
frame, between
parallel bed bars.
3. Ram should sit
inside ram frame.
WARNING
Hose must be on the OUTSIDE of ram frame,
or it will NOT be mountable to the press.
Note: Handle ram carefully to avoid damage to gauge or gauge face.
Do not disconnect hoses prior to assembly.
