CP500 Operation Manual 7

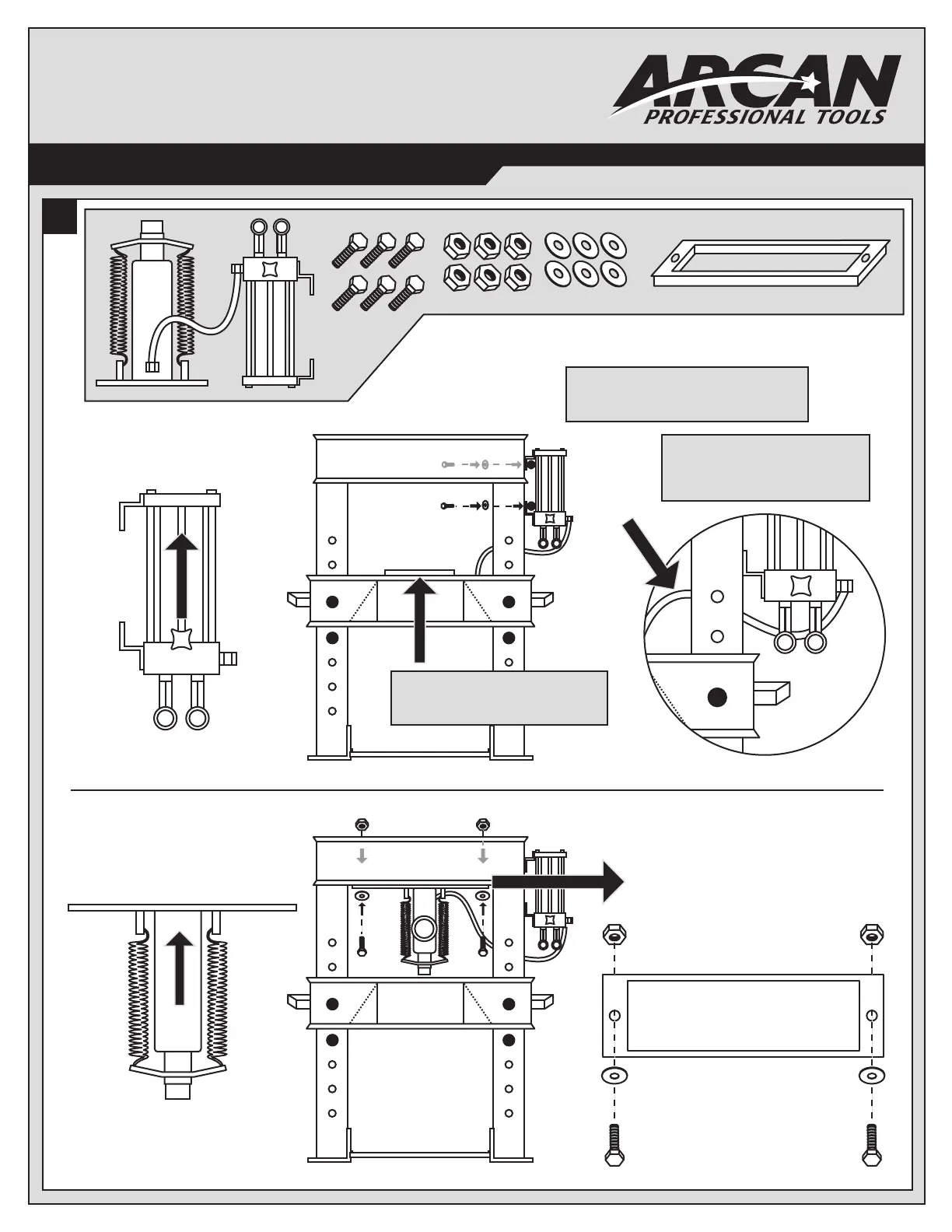

PUMP AND RAM ASSEMBLY INSTRUCTIONS
9
A
B
Note: Hose must run BEHIND frame.
DO NOT disconnect hose from pump
or ram.
This end up
Attach bolts up through ram frame to matching
holes in press. Hand tighten. Wrench tighten
after both bolts have been installed. Ram is now
able to slide left and right within ram frame.
This end up
Note: Ram has been dropped into
ram frame, resting on the bed.
Note: There are two sets of holes for bolts.
Use centermost holes on the side.
To Next Page
