CS-WM MANUAL
--------------------------------------------------------------------------------------------------------------------------------------
ASSEMBLY INSTRUCTIONS:
STEP 01

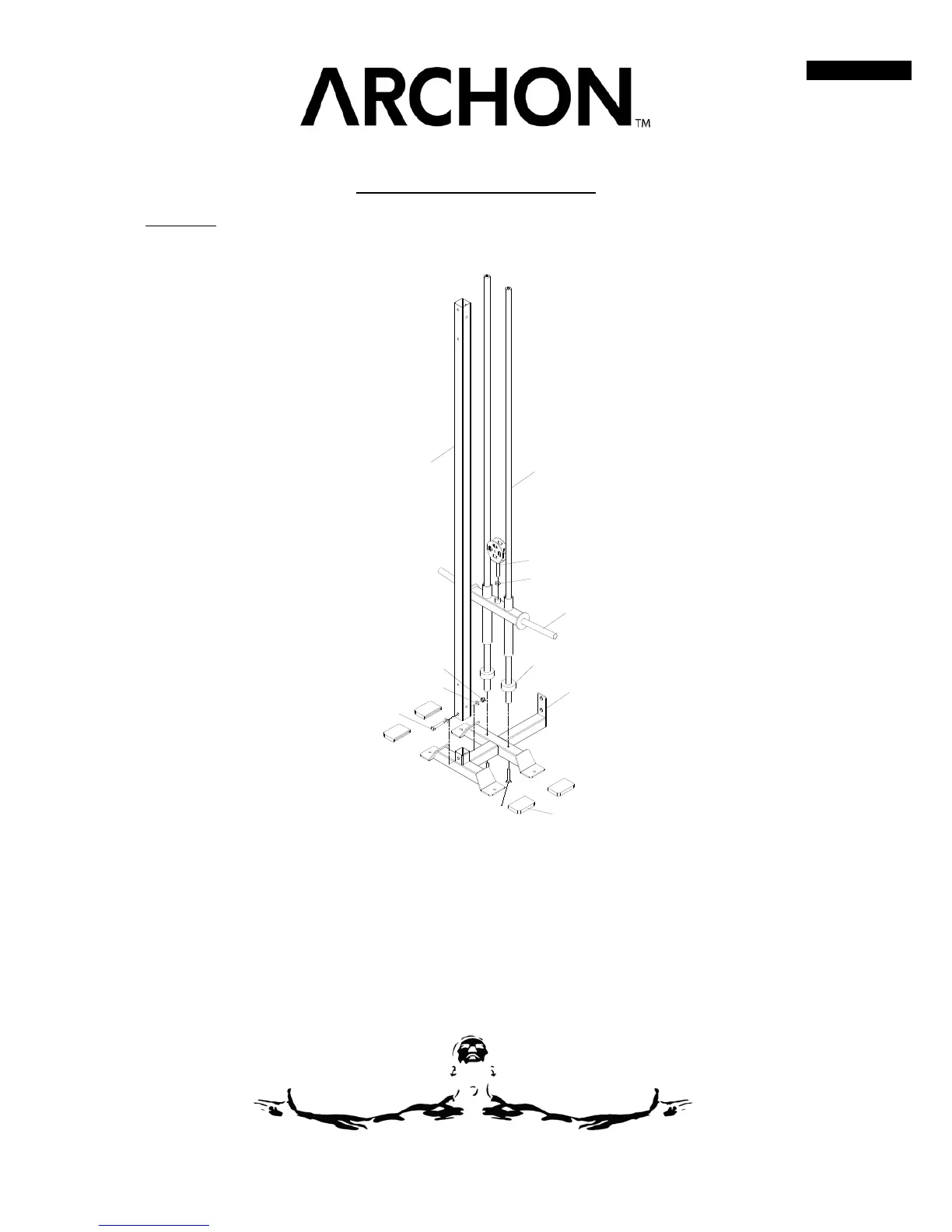

A. Attach End Caps (11) to Bottom Base (41).
B. Attach Front Column (3) to Bottom Base (41) with M10*65 Bolt (32), two M10
Washers (36) and M10 Lock Nut (38).
C. Attach two Guide Rods (1) to Bottom Base (41) with two M10*65 Square Neck
Bolts (29).
D. Slide Rubber Bushings (15) and Weight Support (5) on to Guide Rods (1).
E. Attach Swivel Pulley Block (6) and Nut M12 (39) to Weight Support (5).
