CS-WM MANUAL
--------------------------------------------------------------------------------------------------------------------------------------
STEP 02

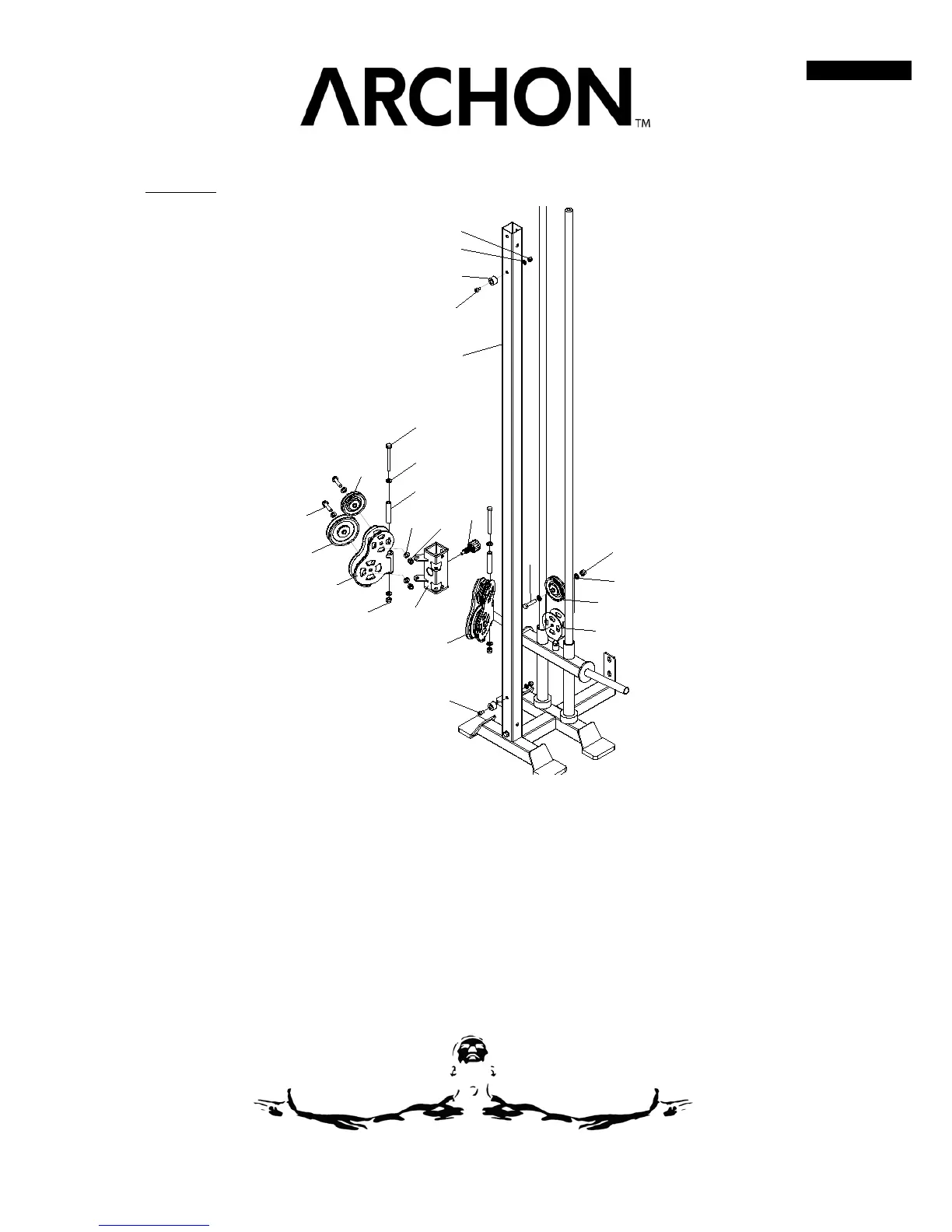

A. Slide the Slide Block (4) on to Front Column (3) and secure with Fast Pin (18).
B. Attach two Rubber Bushings (10) to Front Column (3) with two M8*65 Bolts (30),
four M8 Washers (35) and two M8 Lock Nuts (37).
C. Attach Pulley (20) to Swivel Pulley Block (6) with M10*50 Bolt (31), two M10
Washers (36) and M10 Lock Nut (38).
D. Attach one Pulley (20) and one Large Pulley (19) to Double Pulley Block (8) with
two M10*50 Bolts (31), four M10 Washers (36) and two M10 Lock Nuts (38). Do
this for both double pulley blocks.
E. Attach two Double Pulley Blocks (8) to Slide Block (4) with two M10*105 Bolts (34),
four M10 Washers (36), two Shafts (9) and two M10 Lock Nuts (38).
--------------------------------------------------------------------------------------------------------------------------------------
8
8
9
19
20
34
36
38
31
20
36
38
3
6
18
4
10
30
37
35
36
38
31
30
