4-3

PR162B

8. Disconnect the electric choke lead from the wiring

harness.

9. Disconnect the vent hose; then remove the carbure-

tor.

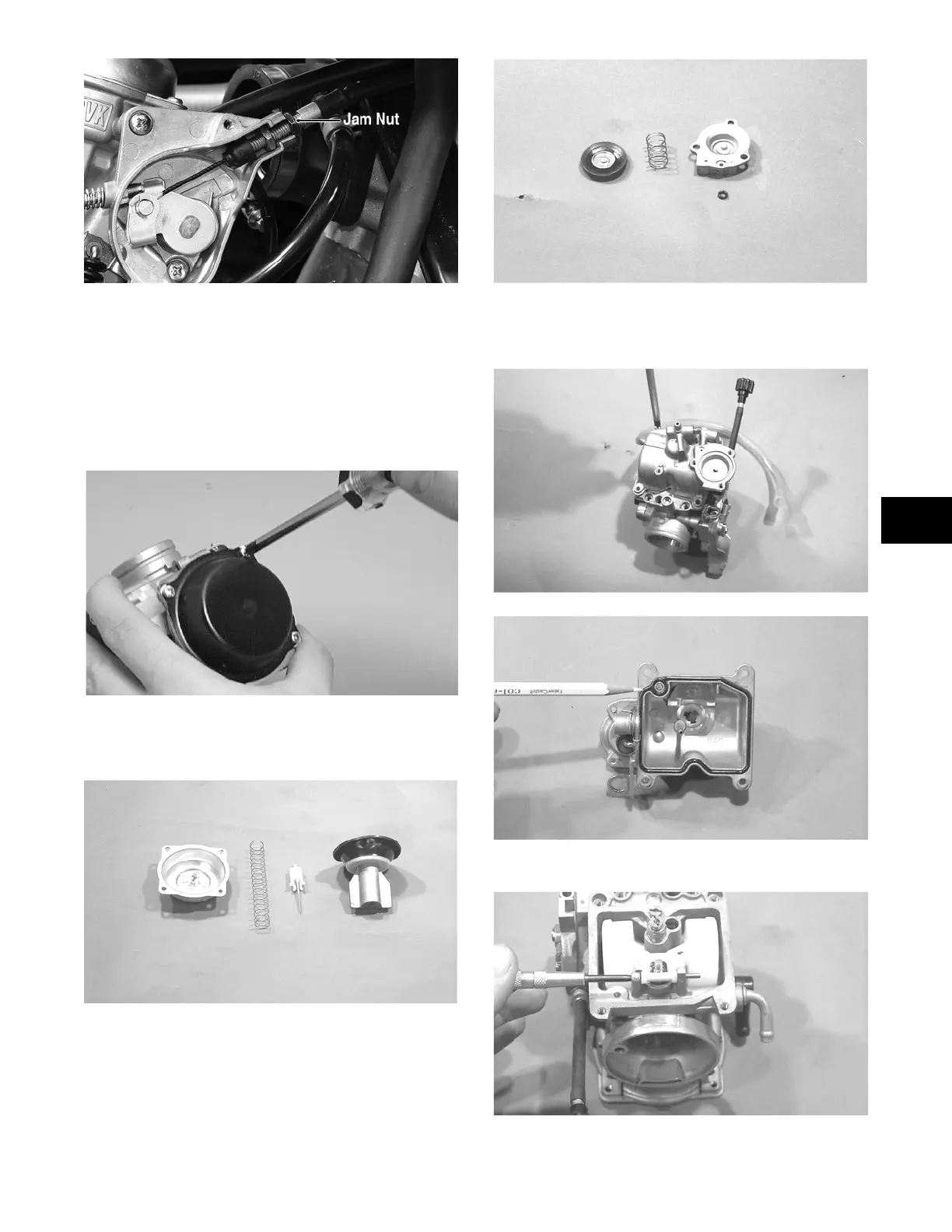

DISASSEMBLING

1. Remove the four Phillips-head screws securing the

top cover; then remove the cover.

CH015D

2. Remove the vacuum piston assembly from the carbu-

retor body. Account for a spring, spring seat, and the

jet needle.

CC746

3. Remove the three screws securing the pump housing.

Account for the diaphragm assembly, spring, and

U-ring (in the housing).

CC748

4. Remove the Phillips-head screws securing the float

chamber; then remove the chamber. Account for the

O-ring.

CC749

CC750

5. Remove the float pin.

CC752

6. Lift the float assembly from the carburetor. Account

for the float valve.
