Electrical Specifications
9
9
WARNING!
All electrical hookups must be performed by
a licensed electrician!
Power Input
All Arctic Spas
®
are tested for the following:
240 VAC, 60 Hz, 50 A (North America)
Connect the power input wires to the terminal block labeled
“AC-Input”. Make sure to respect the alignment and that the
screws are properly tightened.
DANGER!
Shock Hazard.
DO NOT PROCEED if
you are not a licensed
electrician. This
diagram is for
reference only!
IMPORTANT
CONNECTIONS:
Neutral of the GFCI must
be connected to the neutral
bus.
Neutral from the spa must
be connected to
the breaker.
To Spa
From
Electrical Box
Sub Panel

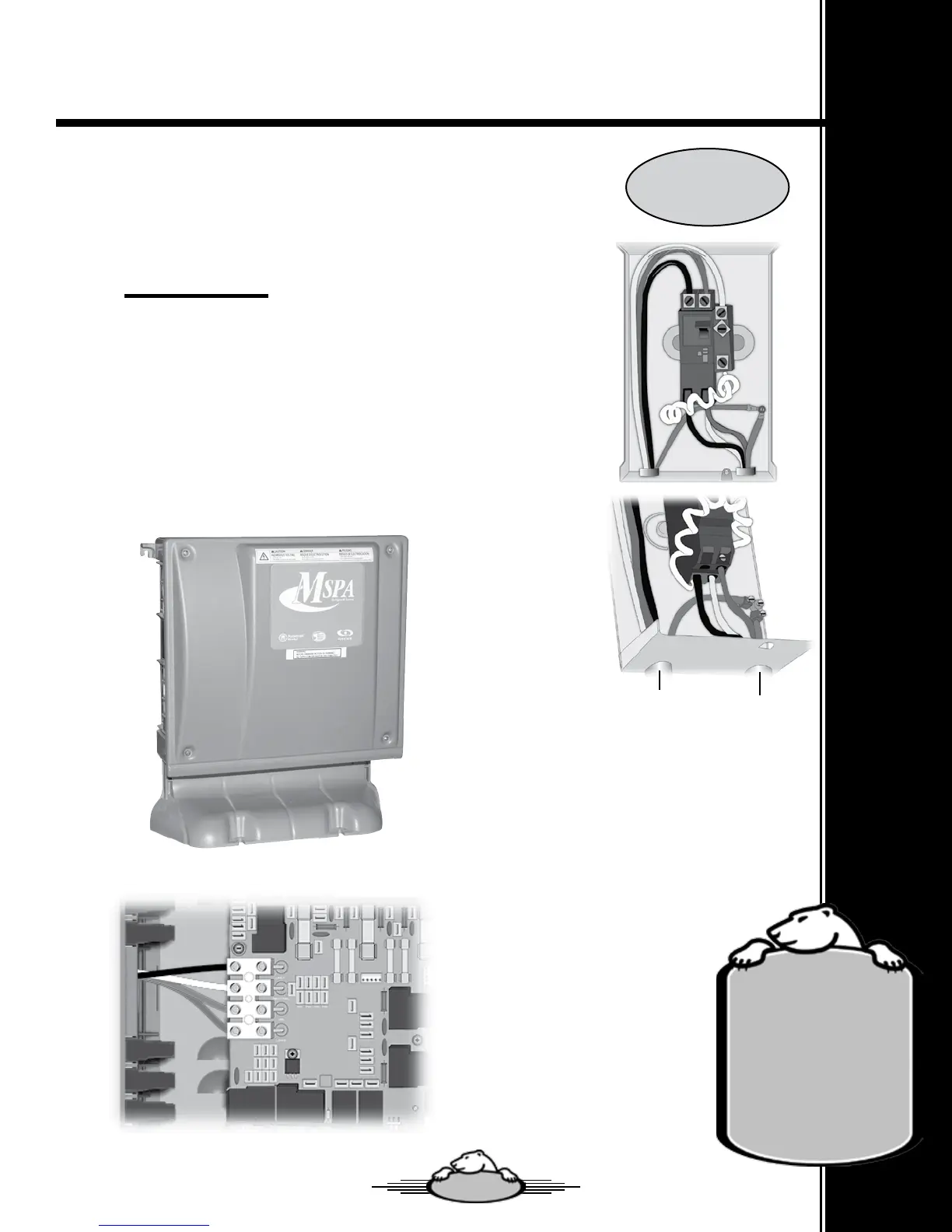

Wiring Diagram
Example
L1
NEUTRAL
GROUND
L2
To Next Page
