Technical informations

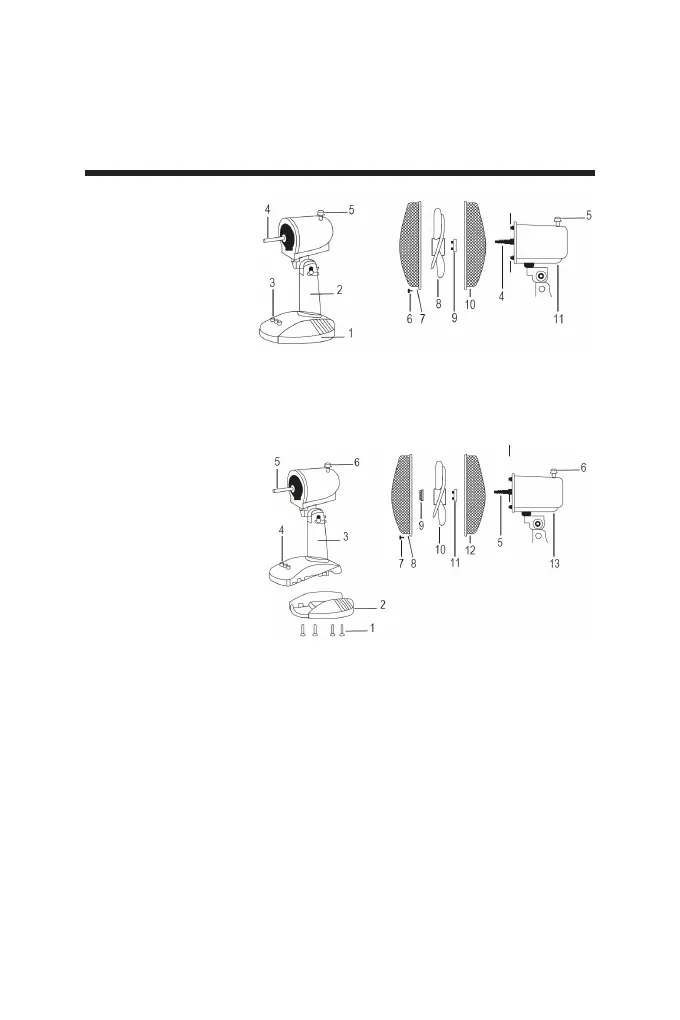

5EA23
1. Base
2. Main body
3. Control panel
4. Motor shaft
5. Oscillation knob
6. Safety screw
7. Front grille
8. Fan
9. Lock ring of the back grille
10. Back grille
11. Motor
A-B. Pin di incastro della griglia posteriore
A
B
5EA30 / 5EA30W / 5EA40 / 5EA40W / 5AM30 / 5AM40
1. Screws (4 pieces)
2. Base
3. Main body
4. Control panel
5. Motor shaft
6. Oscillation knob
7. Safety screw
8. Front grille
9. Lock ring of the fan
10. Fan
11. Lock ring of the
back grille
12. Back grille
13. Motor
A-B. Locking pin for the rear grille
A
B
