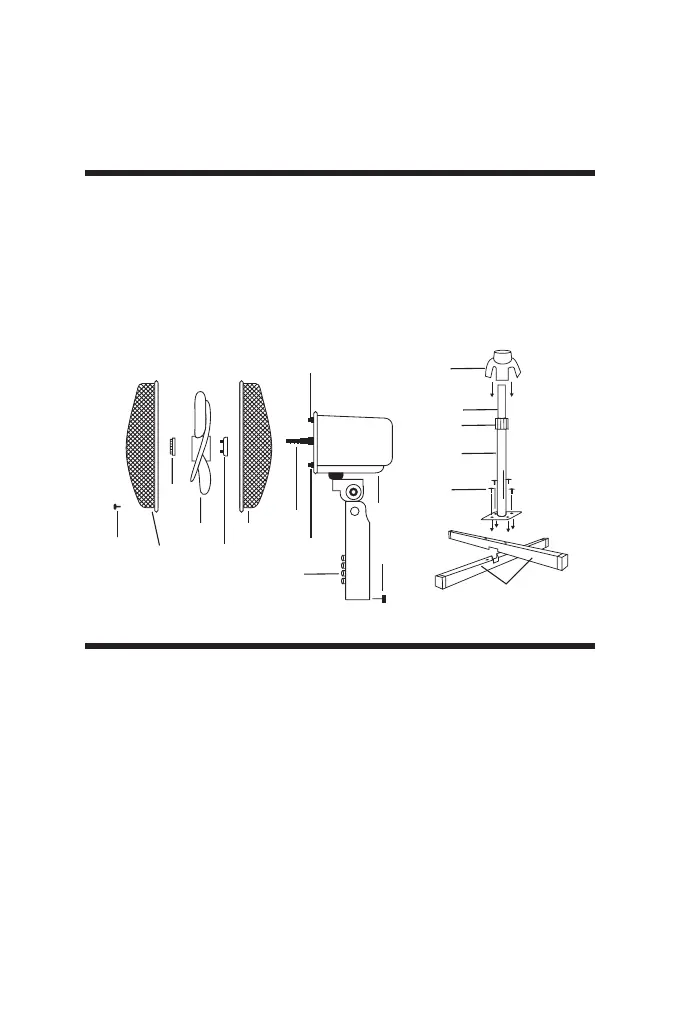

Technical informations
1. Front grille
2. Lock ring of the fan
3. Safety screw of the fan
4. Fan
5. Lock ring of the back grille
6. Back grille
7. Motor shaft
8. Motor
9. Control panel
10. Main body screw
11. Small decorative base
12. Adjustment rod
13. Height adjustment knob
14. Base rod
15. Screws for xing the base rod
(4 pieces)
16. Cross base
A-B. Locking pin for the rear grille
8
4
7
1
2
5
6
9
10
A
B
12
13
14
15
1. Unscrew the screws (15) from the two parts which form the basis of
the cross (16).
2. Fit the two parts which form the basis of the cross (16) as is shown in
the picture.
3. Unscrew the height adjustment knob (13) from the base rode (14) and
insert the small decorative base (11).
4. Pull out the adjustment rod (12) from the base rod (14) then tighten the
height adjustment knob (13) on the base rod (14).
5. Tighten the base rod (14) with the screws (15) previoulsy unscrewed
from the cross base (16).
6. Loosen the screw of the main body (10).
7. Insert the main body on the adjustment rod (12). Tighten the screw
Assembling
