ARDES AR5M39 - Page 19

19

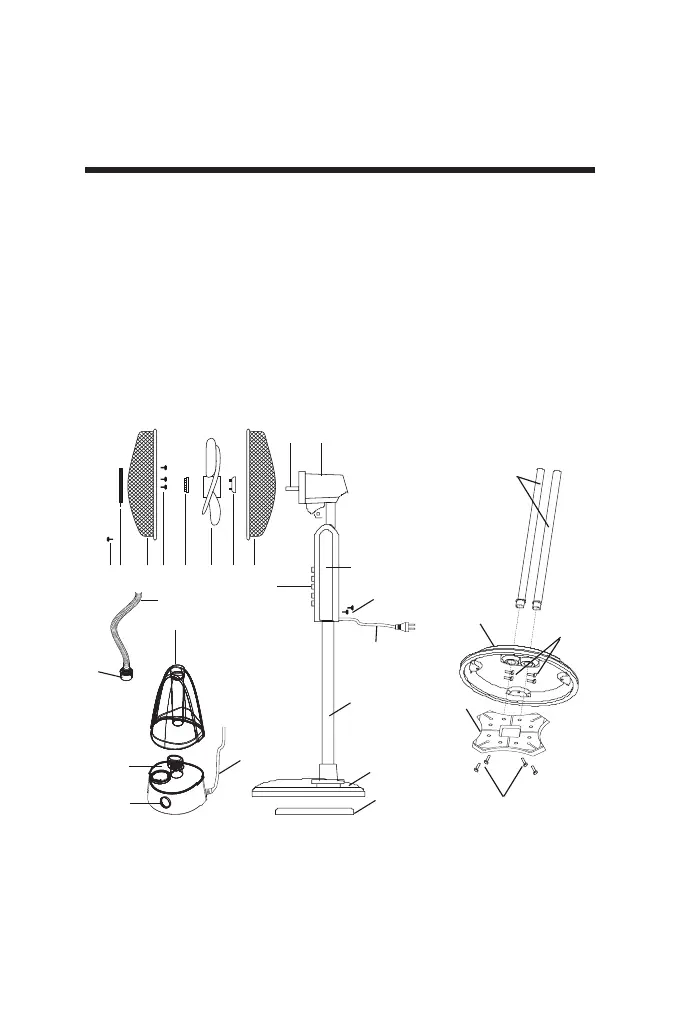

Technical informations
1 - Safety screw
2 - Misting adjustment plate
3 - Front grille
4 - Fixing screw of the misting plate
5 - Fan lock ring
6 - Fan
7 - Back grille lock ring
8 - Back grille
9 - Motor shaft
10 - Motor
11 - Control panel
12 - Main body
13 - Main body screws
14 - Power cord
15 - Supporting tubes
16 - Base
17 - Base weight
18 - Humidier power cord
19 - Humidier tank
20 - Humidier main body
21 - Humidier knob
22 - Misting tube
23 - Humidier cap
24 - Screws of supporting tubes
25 - Screws of weight of the base
1 23
567 8
9 10
11
12
13
14
15
16
17
23
19
18
20
21
22
4
15
16
17
24
25
