Technical information
GB

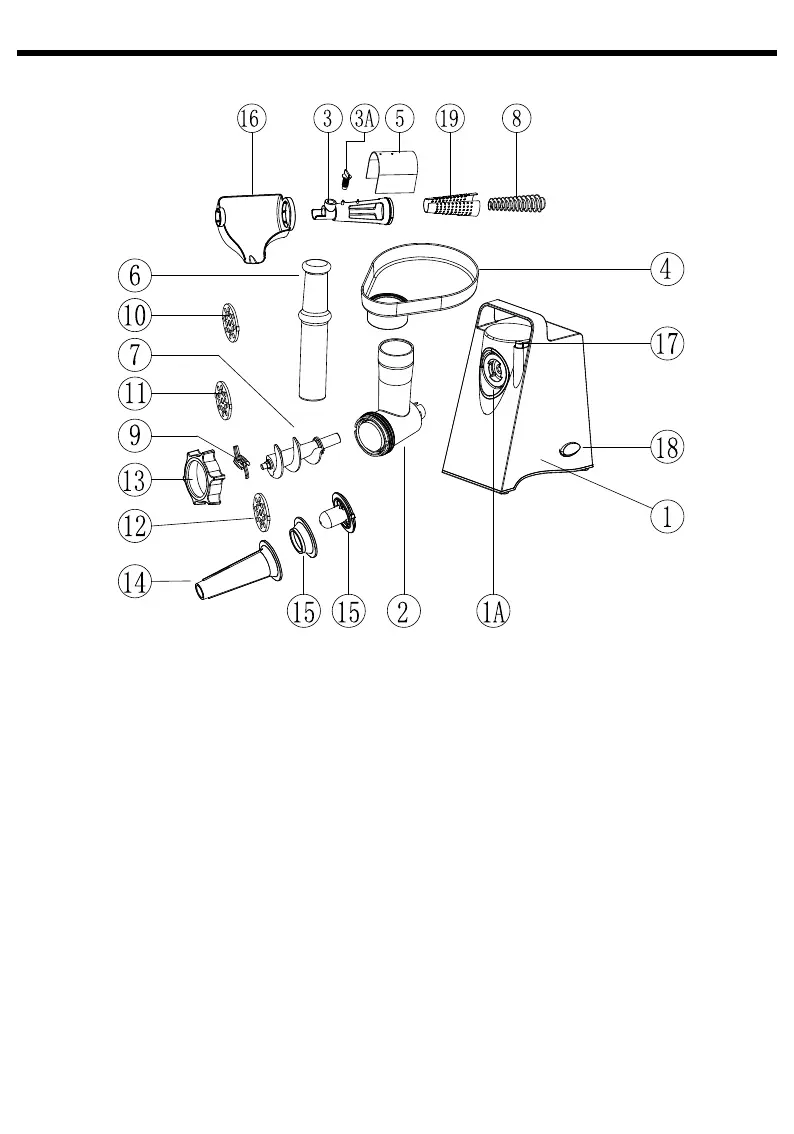

1 - Motor base unit
1A - Feed channel coupling
2 - Feed channel
3 - Conic sieve
3A - Plastic adjusting screw
4 - Tray
5 - Sauce guard
6 - Press
7 - Worm
8 - Worm (extension for tomato processing)
9 - Star blade
10 - Fine plate with 3mm holes
11 - Medium plate with 5mm holes
12 - Coarse plate with 7mm holes
13 - Ring nut
14 - Cone for sausages and salami
15 - Kibbeh accessory
16 - Pulp collection tray
17 - Feed channel lock / release button
18 – Power switch
19 – Perforated screen
Technical date : see the label on the motor support.
