Ardisam Earthquake E43 - Assembly Guide; Assembly Instructions

Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 5
Operator's Manual
Earth Auger Powerhead E43/E43CE
ASSEMBLY
TOOLS REQUIRED:

ASSEMBLY INSTRUCTIONS: SEE FIGURE 1
1. Insert the output shaft of the E43 transmission (A) in the open end
of the Flex Coil ShockTop (B).
2. Line up the bolt holes through the Flex Coil ShockTop and the output
shaft of the transmission.
3. Place the included 3/8-16 x 1.5 inch bolt (C) through the bolt hole.
4. 
5. Using two 9/16 inch wrenches, securely tighten the nut and bolt.
E43 and EA6F shown. Instructions also apply to EA8F and EA10F
augers.
A
B
D
C

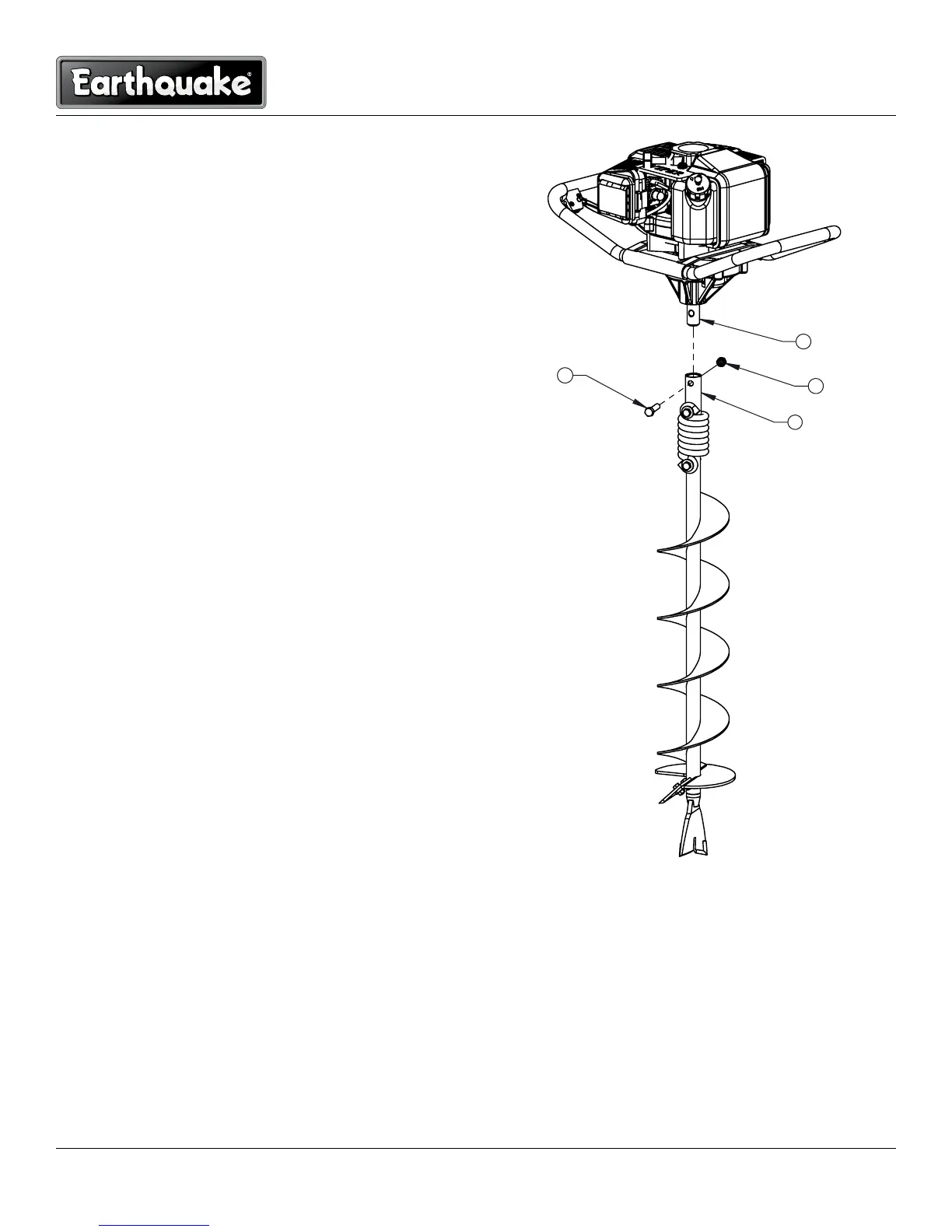

Figure 1
