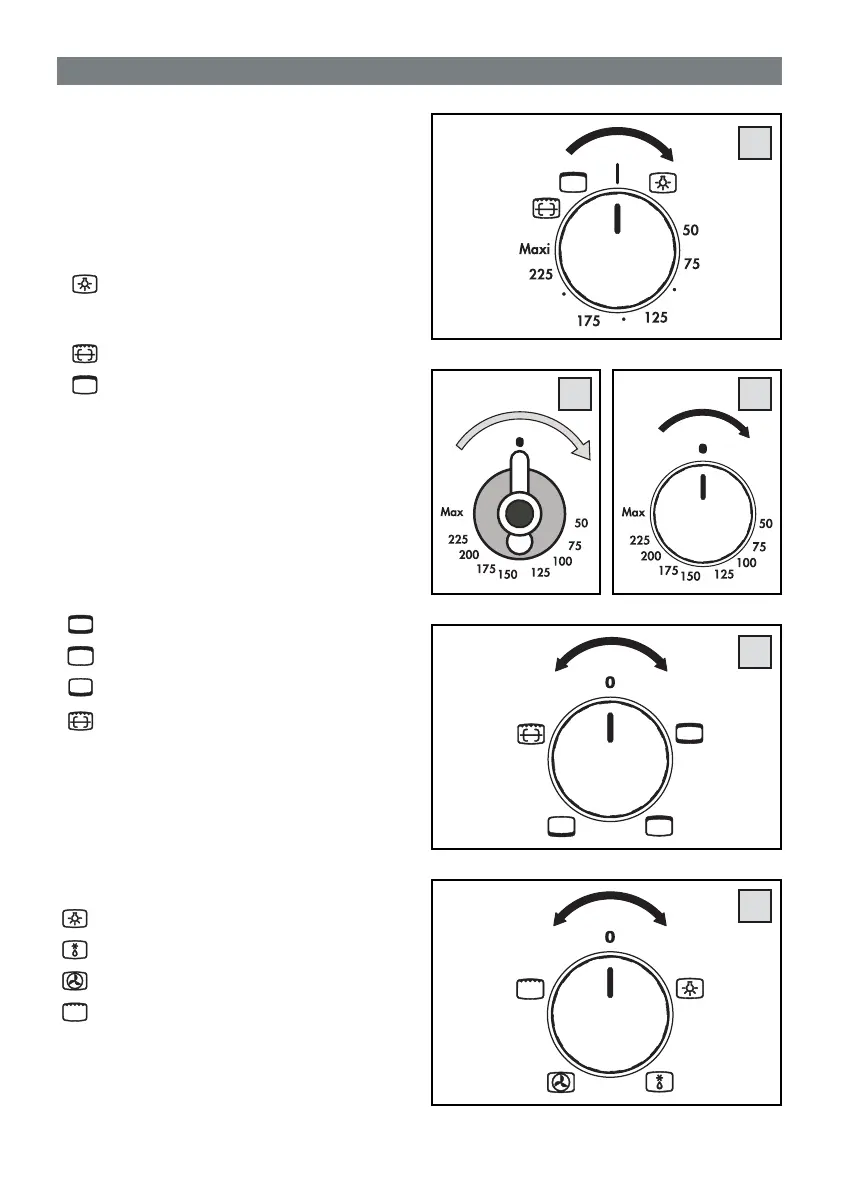

CONTROLS
COMMUTATOR/THERMOSTAT KNOB FOR
CONVENTIONAL OVEN (ref. A)
Oven functions are selected by turning the knob
clockwise:
0
= Oven off
= Oven light on, (stays on for all functions)
50°C to
Maxi
= Oven temperature selection
= Grill + spit heating element on (*)
= Top heating element on
OVEN THERMOSTAT KNOB (ref. B)
Turning the oven knob clockwise selects and sets the
oven baking temperature (50°C to maximum heat).
FUNCTION SELECTOR KNOB FOR
CONVENTIONAL OVEN (ref. C)
Turning the oven knob either clockwise or anti-clockwise,
the following function symbols are available:
0
= Oven off
= Top and bottom heating elements on
= Top heating element on
= Bottom heating element on
= Grill + spit heating element on (*)
N.B.: The oven light remains on with each function.
FUNCTIONS SELECTOR KNOB FOR FANNED
OVEN (ref. C)
Turning the oven knob either clockwise or anti-clockwise,
the following function symbols are available:
0
= Oven off
= Oven lights on (stays lit with all functions)
= Fan on
= Rear heating element and fan on
= Grill heating element on
(*) Available only on certain oven models.
