2 3

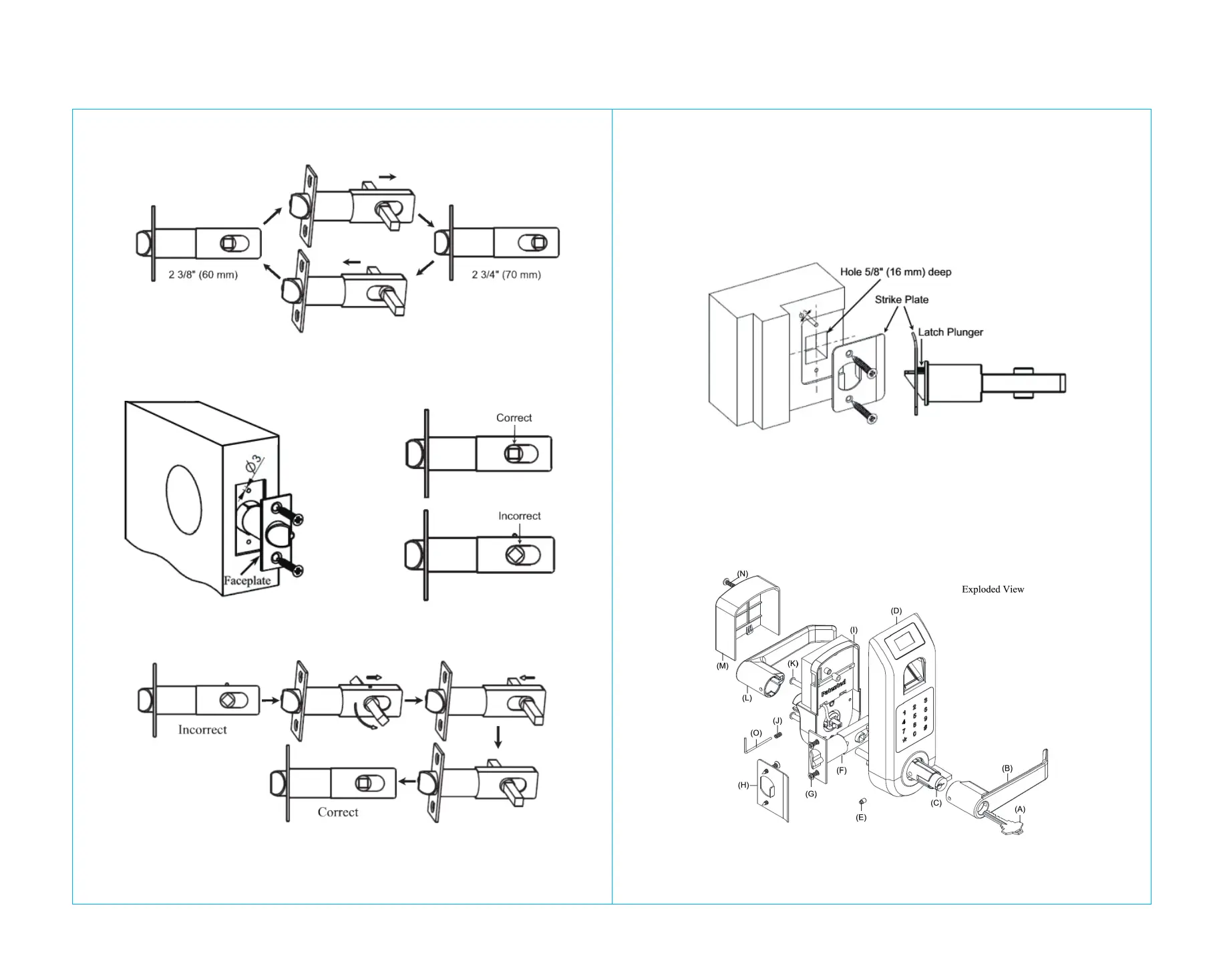

4. Prepare doorjamb (see fig. 8).
4.1 Mark centerlines on jamb exactly opposite center of latch hole.
4.2 Make rectangle holes as shown.
4.3 Use strike as a pattern for mortise and pilot holes. Strike should fit flush.
Part II. Fingerprint Keypad Lock Installation Instructions
