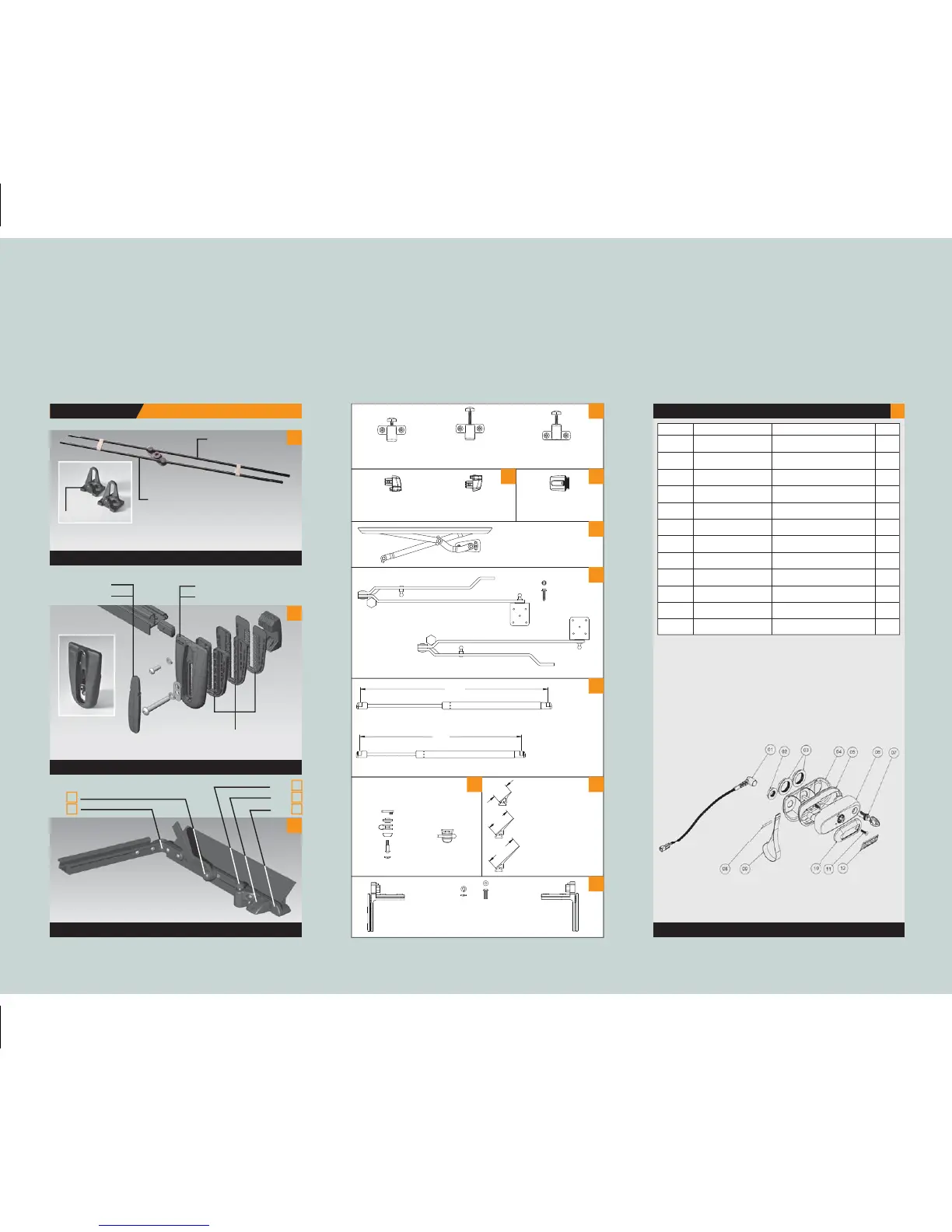

ARE LSX - Page 7

Latch Rod Assembly
Spare Parts Section
Clamp and Spare Parts
14176 Set of 4
14175 Set of 6
14267 40mm (1.5") Screw
14155 50mm (2.0") Screw
14267 40mm (1.5") Screw
14155 50mm (2.0") Screw
1
2
Palm Handle — Exploded View
09466 Gas Prop-90 Lb. 19.7"
03725 Gas Prop-110 Lb. 19.7"
01840 Gas Prop-120 Lb. 19.7"
01823 Gas Prop-135 Lb. 19.7"
19-1/2"
17"
10615 Gas Prop-97 Lb. 17.0"
3-9/16
13771 Bulkhead Seal
Must Specify Length
Scissor Hinge Assembly
13813 Driver Side
13814 Passenger Side
11415 Passenger’s Side Support Arm
11416 Driver’s Side Support Arm
14813 Assist Arm Mounting Hardware
Exploded View
Assembled View
Palm Handle Spare Parts
13
12
11
9
8
7
6
4
10
07015
Attachment
Screw
5 per Side
1-5/8
11855 A.P. Seal Short
Must Specify
2-1/2
12957 A.P. Seal Tall
Must Specify
5
Rail System Spare Parts — Assembled View
3
Four Sizes: Please Specify
a) 11128 - 24.5"
b) 11129 - 29.0"
c) 14266 - 31.5"
d) 11130 - 34.0"
02504
2 Required
Latch Rod and
Cam Assembly
Rod Guides
Clamp Assembly
14179 Clamp Spacer Set
Cover Plates Clamp Assembly
See 4
See 6
See 5
See 10
See 12
11407 Assembly Bumper
40mm (1.58") Bolt
11725 Assembly Bumper
55mm (2.15") Bolt
13663 Assembly Bumper
Reversed 55mm
(2.15") Bolt
11409 Assembly Endcap
Driver’s Side
11408 Assembly Endcap
Passenger’s Side
11410 Assembly Striker
Block
11411 LSX Corner
Passenger’s Side
11412 LSX Corner
Driver’s Side
1135111353
Attachment
Machine Screw
and Washer
12652 Palm Handle Assembly
ITEM NO. PART NUMBER DESCRIPTION QTY.
11601601 Wire Pigtail
11575102 M18 Nut
21575203 M33 Nut
11575004 Backer
11574905 Gasket
11582806 Escutcheon Body Assembly
115830-01 thru 15830-2007 Lock and Key
11596708 Strap Pin
11592609 Strap
11569110 Handle
11570711 FHCS M5 x 20
10199112 ARE Logo
