EN
13
A

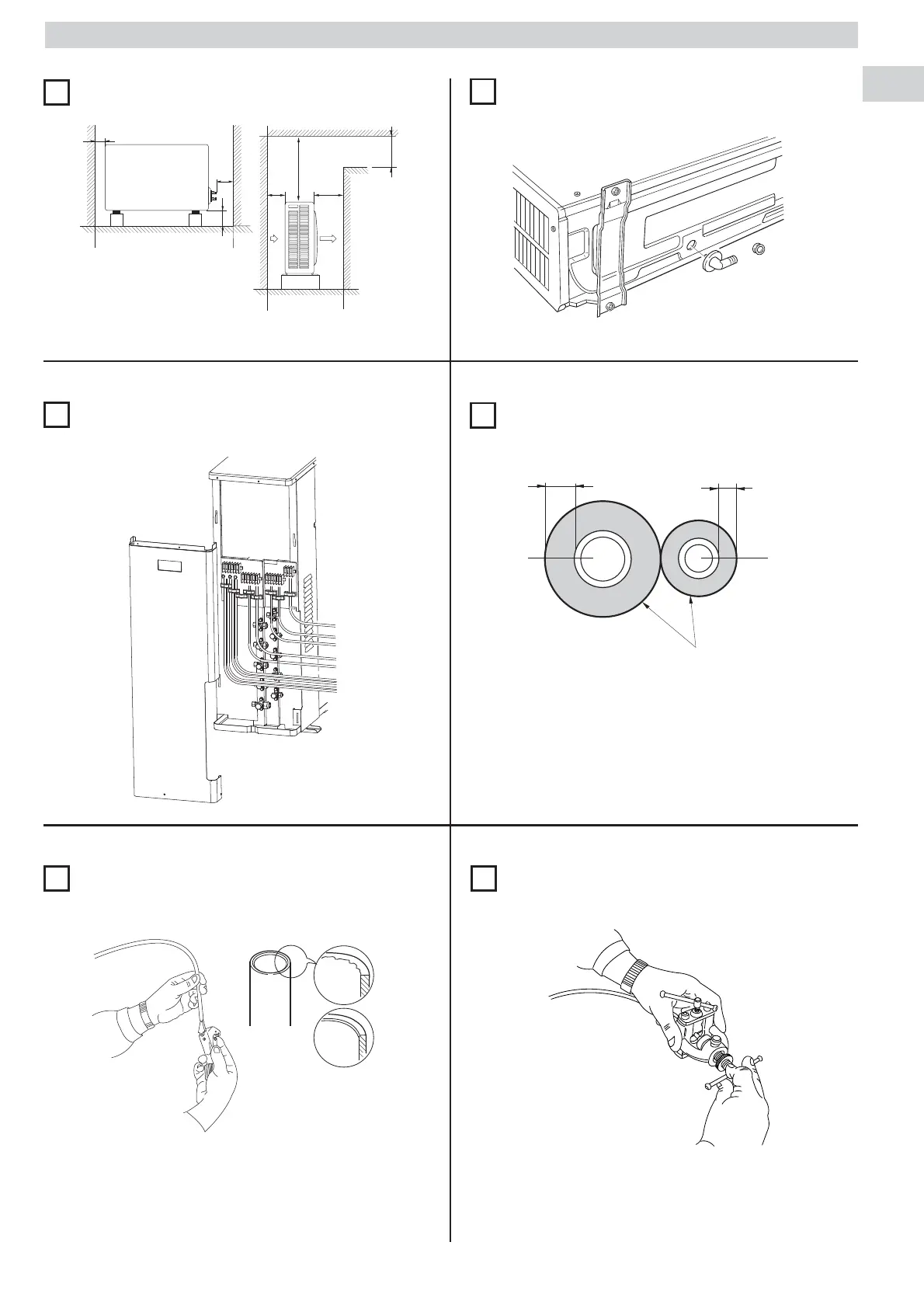

Minimum operation and maintenance area.
B
Heat pump version.
Use, if necessary, the accessories supplied.
C
Remove the side cover, then connect the power line
and interconnecting wires to outdoor unit on the
terminal strip and secure them with clamps.
400
100
100
2000
2000
100
500
D
E
Use insulated copper tube. Cut approximate 30-50
cm. longer than actual distance between units.
Remove burrs at the ends of the copper tubes. Hold
the tube end downward and be sure that no dirt falls
into the tube.
min. 8 mm min. 8 mm
Insulation
F
Insert flare nuts removed from the units, than make
a flare at the end of copper tubes.
10 - INSTALLATION PROCEDURE
