AVOID
• Heat sources, exhaust fans.
• Direct sunlight.
• Damp, humid or uneven locations.
• To make holes in areas where electrical wiring or
conduits are located.
DO
• Choose places as cool as possible and well ventilated.
• use lug bolts or equal to bolt down the unit, reducing
vibration and noise.

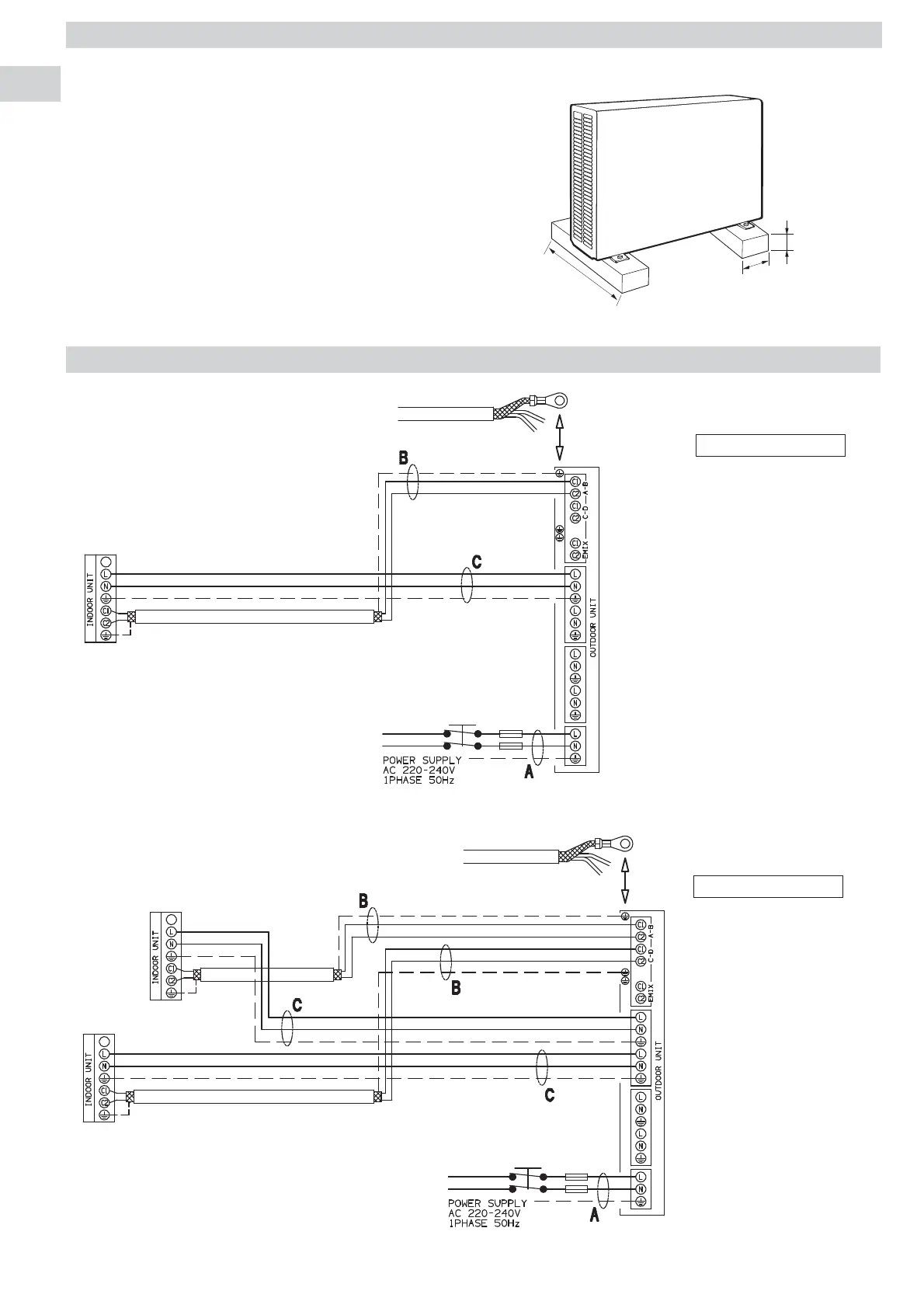

Provide a solid base for outdoor unit raised from the
ground level. Fix unit to base using 4 anchor bolts.
10 cm
10 cm
40 cm
1 INDOOR UNIT
2 INDOOR UNITS
1 PHASE
1 PHASE
1 - INSTALLATION SITE SELECTION
2 - SYSTEM WIRING DIAGRAM
