Fan Coil Unit Wall Mounted Type
2. Installation Instructions

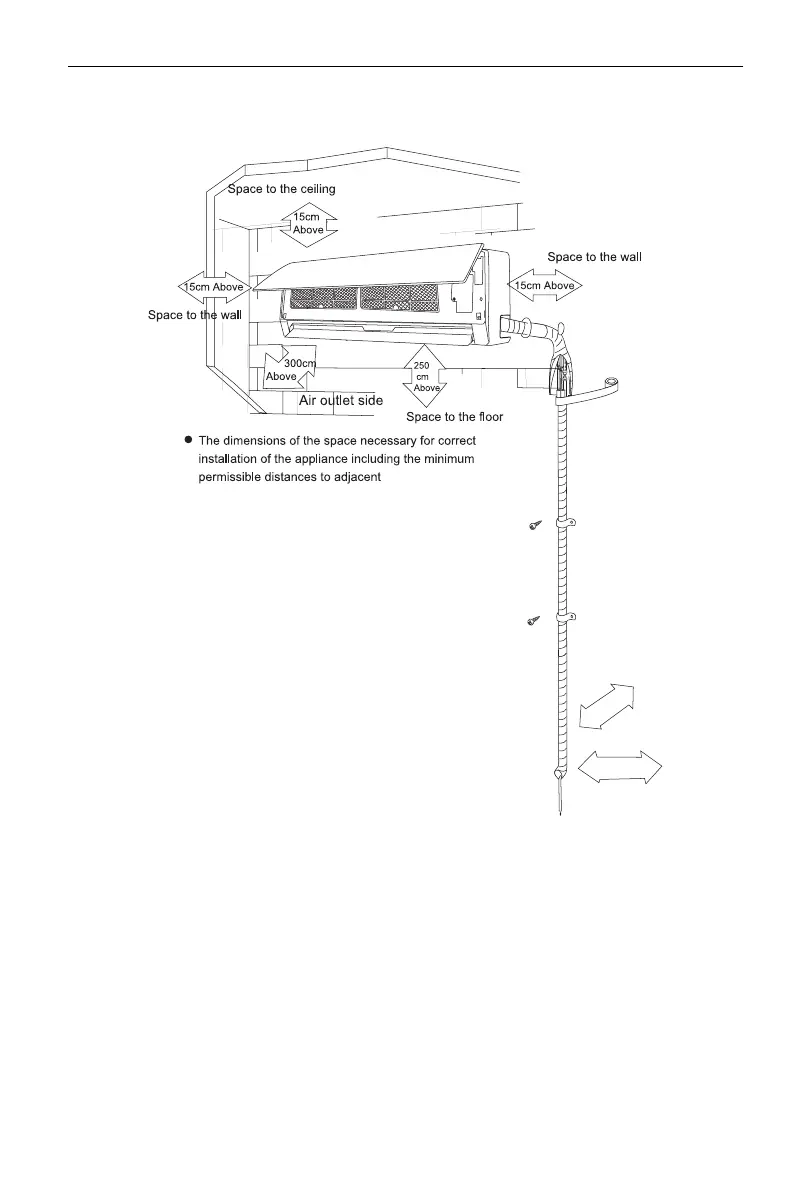

2.1 Installation Dimension Diagram
structures.
50cm
30cm
Fig.2
2.2 Installation of the Rear Panel
(1) Always mount the rear panel horizontally. Due to the water tray of the unit has been adopted the both-
way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is
to take the outlet of the water tray as the center of a circle, the included angle between the evaporator
and level should be 0 or more, that is good for condensing water drainage.
