Argo ISIDE - Use with End Fitting for Window; Use with Window Unit Kit

25
V 12/20

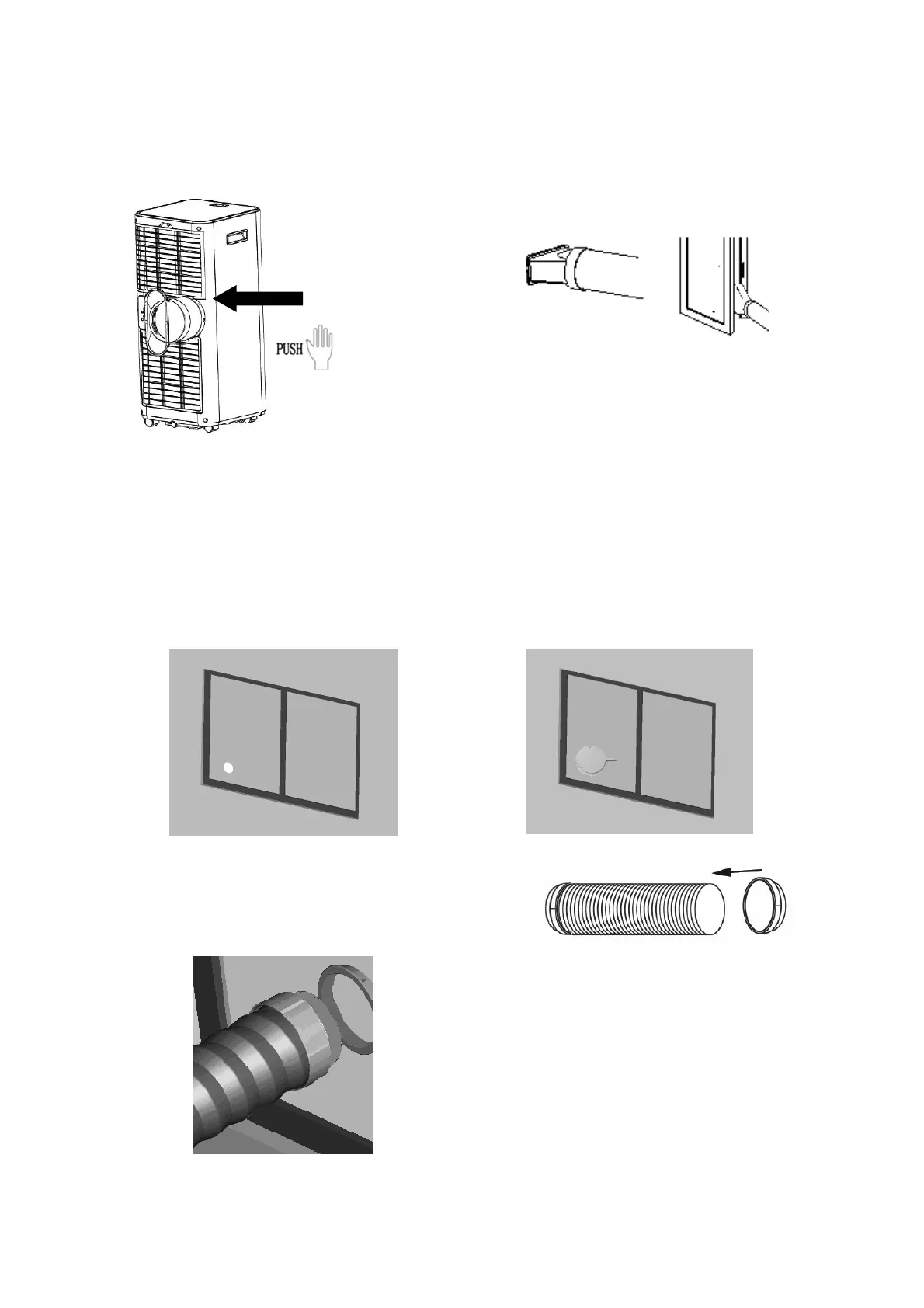

USE WITH END FITTING FOR WINDOW
1. Stretch the flexible hose sufficiently so that it
reaches the outside (max 1.5 m) and hook it to the rear
part of the air conditioner.
2. Open the window and lock one of the two leaves
with the handle.
Rest the terminal connection on the fixed leaf, bring
the other leaf of the window close.
3. Open the window and lock one of the two leaves
with the handle.
Rest the terminal connection on the fixed leaf, bring
the other leaf of the window close.
USE WITH WINDOW UNIT KIT
1. To make the hole in the glass it is advisable to
take the porthole kit accessory to the glazier.
2. Insert the window unit into the window.
3. Insert the round fitting into the retractable flexible
pipe and insert the latter with its round fitting into
the window unit without the plug.
4. Insert the round fitting onto the flexible pipe.
5. Insert the flexible pipe thus mounted into the rear of the
air conditioner.
