Controls, features and connections
1 Motor transportation screw (marked red)
2 Stepped drive pulley
3 Drive belt * - 3a Hook *
4 Hub
5 Platter with felt mat *
6 Tonearm counterweight * - 6a Downforce scale
7 Tonearm lift lever
8/18 Tonearm rest and removable transport lock
9 Tonearm tube - 9a Tonearm base
10 Lid *
11 Lid hinges
12 Hinge fasteners
13 Power supply socket
14 Signal output cable
15 Anti-skating weight adjustment scale
16 Anti-skating weight *
17 Anti-skating weight support hoop
20 Power switch
21 Headshell with finger lift and fitted
Ortofon OM 5E cartridge
22 Motor
23 Single adapter *
Power supply (not shown) *

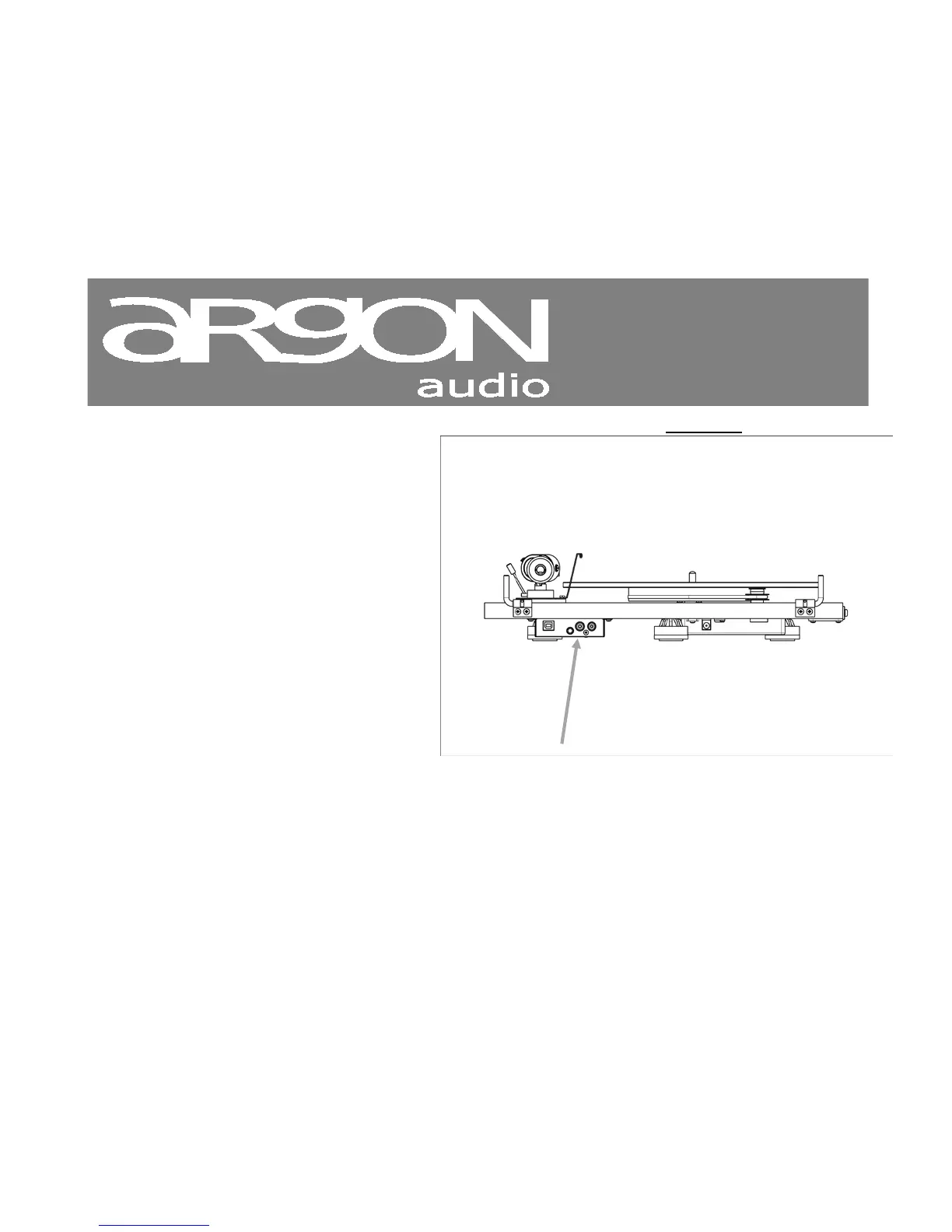

Connections especially for USB version
Compared to the non-USB version, the USB version has
connectors on the back.
The RCA cable and the ground cable has to connected to
the turntable. Whereas on the Non-USB version the RCA
cable is mounted on the turntable.
USB connection is also on the back of the USB version.
