Argos 4FT6 BED FRAME - Page 20

Please sort out all parts before you begin to assemble the item.
This to make sure you always use the correct part.

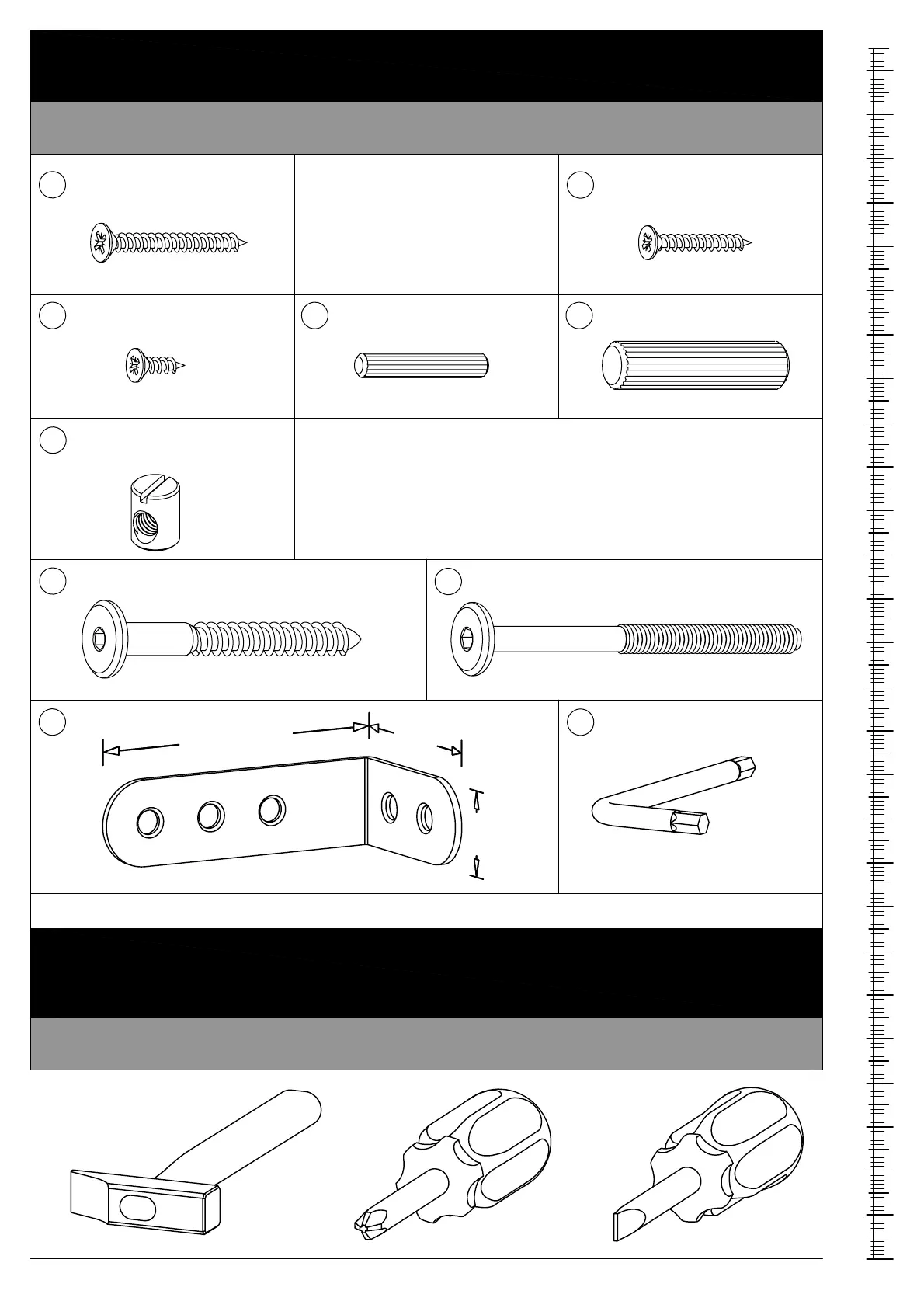

Fittings contained in the box.
Tools needed
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
MM
Fittings A, C, D, E, F, G, H and K are shown in their actual dimensions.
Hazard Warning !
Keep small components out of the reach of children.
A
3 pcs.
Screw - ø3,5 x 35mm
C
36 pcs.
Screw - ø3,5 x 25mm
D
10 pcs.
ø3,5 x 12mm
E
20 pcs.
Dowel - ø5 x 30mm
F
12 pcs.
Dowel - ø10 x 40mm
H
4 pcs.
Screw - ø7 x 60mm
K
12 pcs.
Screw - M6 x 75mm
G
12 pcs.
Barrel nut
L
2 pcs.
Angle
M
1 pcs.
Allen key
4mm
M6, ø10 x 13mm
307 / 0003
302 / 0002
302 / 0005
305 / 0003
304 / 0004
305 / 0001
308 / 0003
302 / 0001
303 / 0004
309 / 0003
Page 2 of 8
Scandinavia 4'6 bed frame
70mm
42mm
20mm
