Pull the cover tightly over the assembled frame and
insert the hook into the top hole of each leg. (Note:
move the hook to the next available position when
fabric becomes loose). To stop water collecting on the
EYELETS
Page 2 of 2
09.08 FW009-A
FIRE PRECAUTIONS
This Gazebo can burn
Customer Care/Helpline number for help, assistance and spare parts call 0151 520 0074

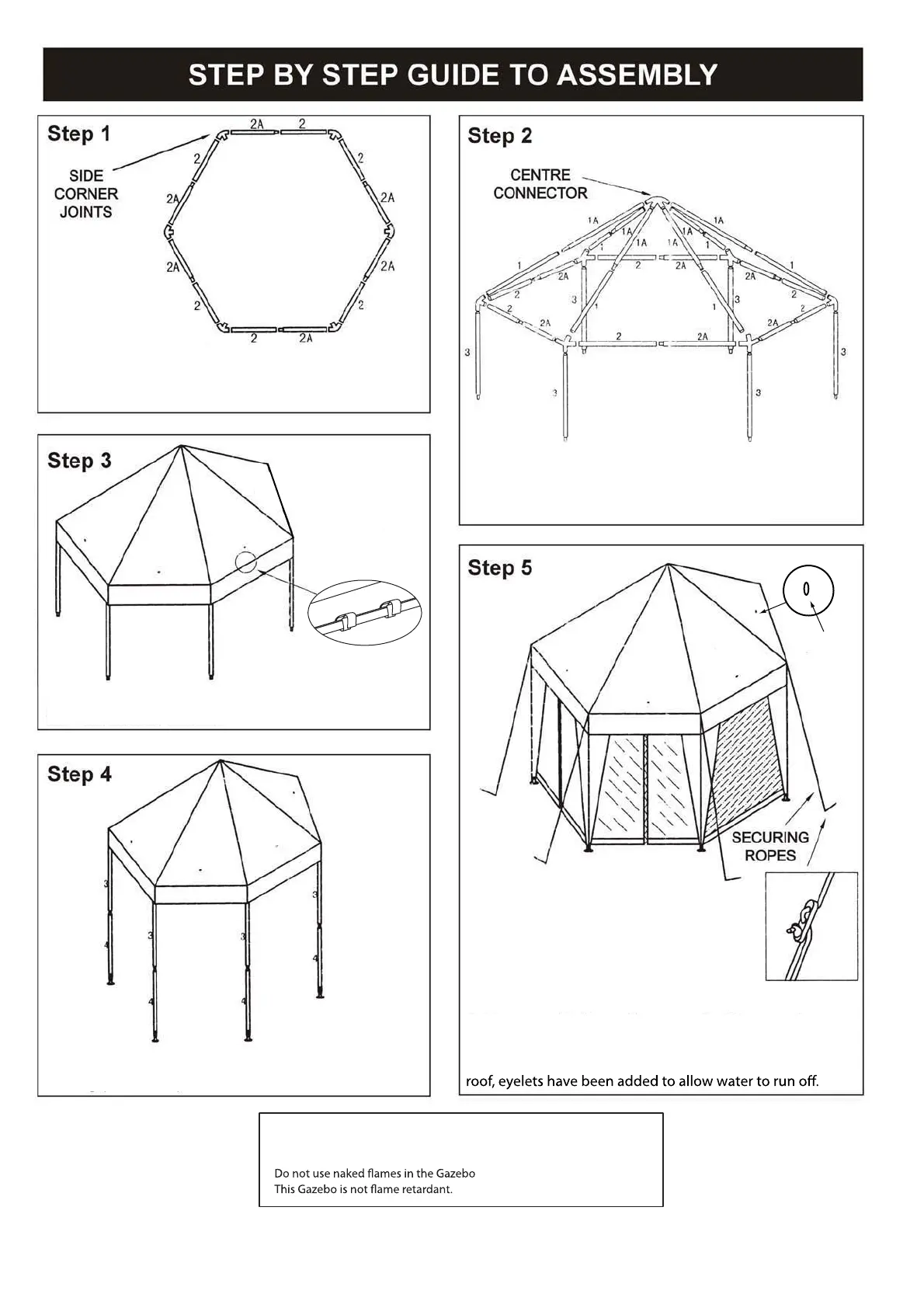

Assemble upper frame lay out corner pieces
and connect with frame (Tube 2 & 2A).
Assemble cover by pulling it tightly over the assembled
roof frame and secure using the velcro strips.
Assemble roof frame by connecting tubes 1 & 1A between
the centre connector and side corner joints. Then connect poles
3 into the side corner joints.
Slot the remaining legs (Tubes 4) into position and push
the plastic feet into place.
