12
Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or the
Helpline
0844-335-0229 who will be able to help you.
15

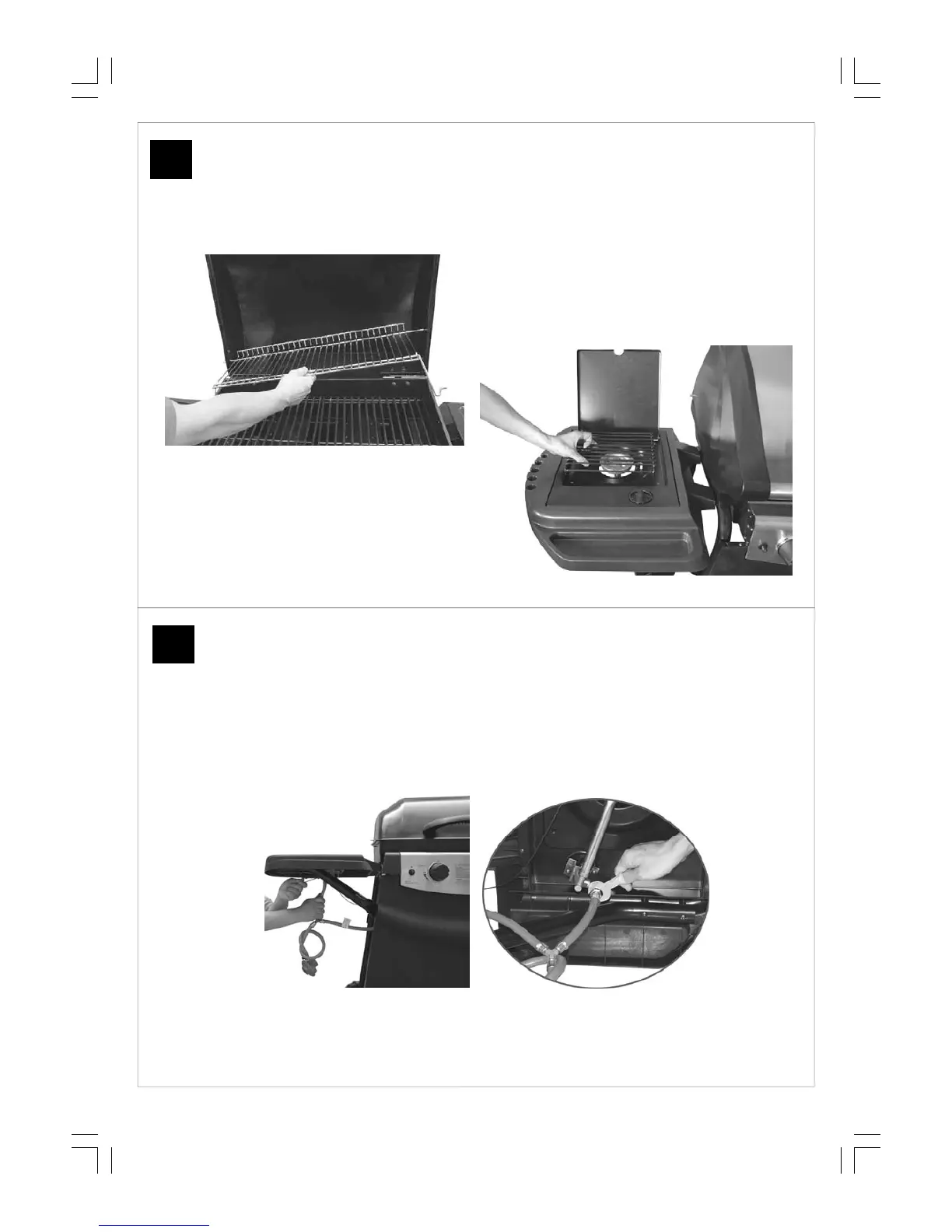

Install the Warming Rack (A6) into barbecue hood/body as shown. Place the Grid (C2) onto the side burner.
IMPORTANT: Snip the line which hang hex spanner on the Hose / Regulator Assembly (B7) to get the spanner.
IMPORTANT:Carefully screw the brass hex hose fitting onto the brass threaded gas inlet assembly on the side
burner.
IMPORTANT: Screw hand tight only. Then using the hex spanner turn the hex nut a further 1/8 of a turn to
ensure tightened. (DO NOT OVERTIGHTEN – DO NOT USE ANY SEALING TAPE OR LIQUID ON THE
CONNECTION.)
IMPORTANT - LEAK TESTING BEFORE USE, FAILURE TO
CHECK AND PERFORM THE LEAK TEST COULD CAUSE
SERIOUS INJURY, AND DAMAGE THE BARBECUE.
16
