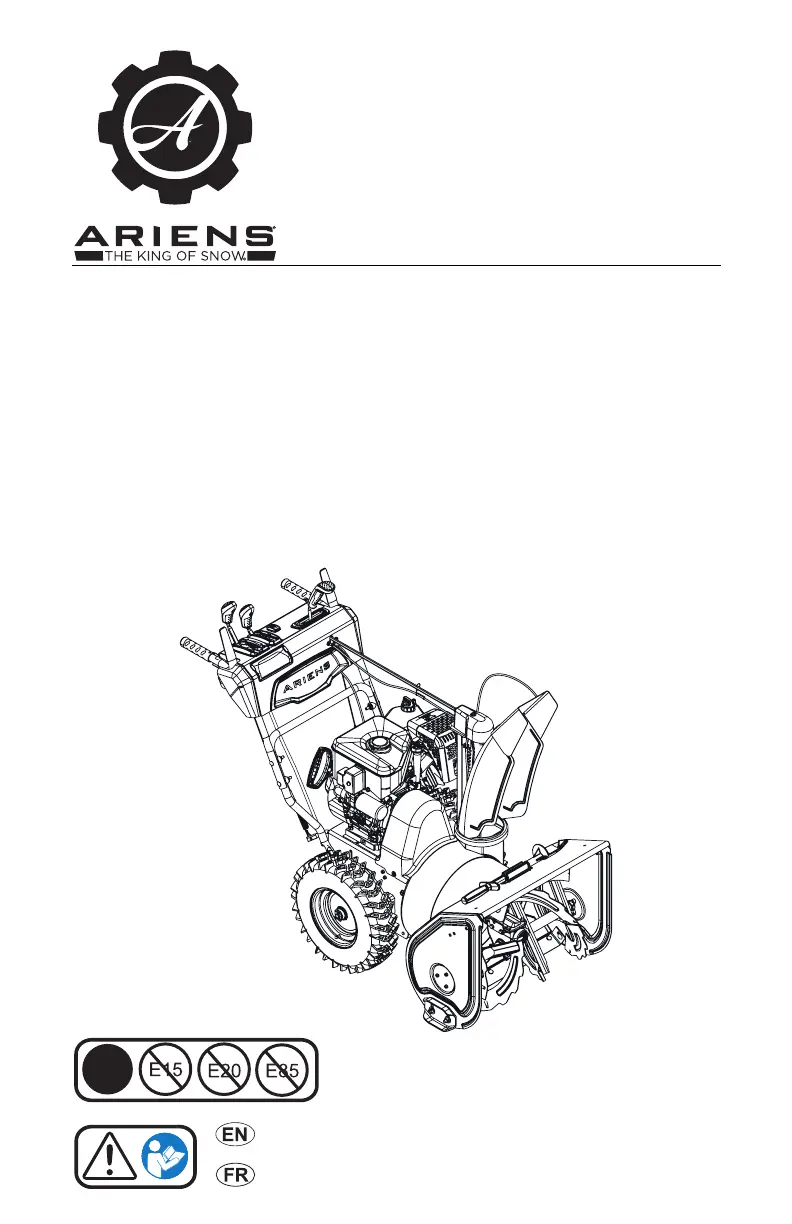

Operator’s Manual

Manuel du Utilisateur

Platinum Series

09365700 • 7/20

Printed in USA

ENGLISH

FRANÇAIS

E10

Models

921050 – Platinum SHO 24

(SN 180000 +)

921051 – Platinum SHO 30

(SN 180000 +)

921057 – Platinum SHO 28 RapidTrak

(SN 180000 +)

Sno-Thro

®

Table of Contents

Other manuals for Ariens 921051

Service Guide83 pages

Questions and Answers:

C
Christie Miranda MDAug 21, 2025
How to start my Ariens Snow Blower when the engine won't start?
- V
  vincentchristineAug 21, 2025
  If your Ariens Snow Blower engine won't start, there are several possible causes. First, make sure the engine key is in the run position. Next, check that the choke is on, and the fuel valve is open. Ensure the fuel tank isn't empty and that the engine is primed if it's cold (press the primer bulb three times). If the engine is flooded, turn the choke control knob to the off position and try starting again. If these steps don't work, the ignition switch starter circuit may not be functioning, or the engine itself could be faulty, requiring a visit to your dealer or an authorized service center. Also, check for disconnected spark plug wire or faulty spark plug. Another reason may be build up of dirt and residue around governor / carburetor.
D
David PadillaAug 25, 2025
Why is my Ariens 921051 Snow Blower not throwing snow effectively?
- C
  cmorrisAug 25, 2025
  If your Ariens Snow Blower isn't throwing snow well, several issues could be the cause. Ice or debris may be obstructing the auger, or the discharge chute might be clogged with snow. Stop the engine, remove the key, and wait for moving parts to stop before clearing any obstructions. The impeller could be frozen in place, requiring you to move the unit to a warm place to thaw it. Also, the auger drive belt might be slipping, worn, or damaged, and needs adjustment or replacement.
A
anthonywoodAug 26, 2025
What should I check if my Ariens Snow Blower won't move forward or backward?
- G
  Gary HardyAug 27, 2025
  If your Ariens Snow Blower isn't moving forward or in reverse, it could be due to several reasons. The friction disc might be worn and need replacement. The traction drive cable may not be adjusted correctly, so remove slack from the cable. Another possibility is a malfunctioning traction belt, which would need repair or replacement. Lastly, the speed selector might not be adjusted correctly, and you should adjust the speed selector.
W
William PattonAug 28, 2025
What causes continuous belt squealing in my Ariens 921051 Snow Blower?
- P
  petersonbrianAug 28, 2025
  Continuous belt squealing in your Ariens Snow Blower can be caused by a couple of things. The impeller might be frozen, so try moving the unit to a warm area to thaw it. Alternatively, the attachment clutch may need adjustment.
R
Robert TranAug 29, 2025
What to do if my Ariens Snow Blower unit does not throw snow or throws it poorly?
- U
  uthomasAug 29, 2025
  If your Ariens snow blower isn't throwing snow effectively, start by checking the shear bolts. Next, inspect the impeller for ice; if frozen, move the unit to a warm place to thaw. Also, check the auger for obstructions. Stop the engine, remove the key, and wait for moving parts to stop before removing any obstructions. Clear any snow clogging the discharge chute, remember to stop the engine, remove the key, wait for all moving parts to stop and for hot parts to cool, and use a clean-out tool, not your hands. A slipping, worn, or damaged auger drive belt may also be the cause.
J
jcookeAug 31, 2025
What to do if my Ariens 921051 unit runs briefly then stops?
- S
  Samantha YoungAug 31, 2025
  If your Ariens snow blower unit runs briefly then stops, it may be due to a build-up of fumes in the fuel tank creating too much pressure. Try slowly loosening the fuel tank cap.
C
carolineadamsSep 1, 2025
What to do if my Ariens Snow Blower unit does not drive forward or in reverse?
- M
  Michael ColemanSep 1, 2025
  If your Ariens snow blower does not drive forward or in reverse, the friction disc may be worn (replace the friction disc). Also, the traction drive cable might not be adjusted correctly (remove slack from the cable). Another reason could be that the traction belt is not functioning (repair or replace the traction drive belt). Finally, the speed selector might not be adjusted correctly (adjust the speed selector).
D
dawnknoxSep 3, 2025
What to do if my Ariens 921051 engine stops while running?
- J
  Jennifer AdamsSep 3, 2025
  If your Ariens Snow Blower engine stops, first check if the fuel tank is empty and refill if necessary. Ensure the fuel valve is open. Look for any obstructions in the auger or impeller, and if present, stop the engine, remove the key, wait for all moving parts to stop, and then remove the obstruction before restarting. Also, check for contaminated fuel and replace it with clean fuel. A faulty or dirty spark plug could also be the culprit, so replace or clean it. Lastly, a blocked fuel cap vent can cause the engine to stop, so try installing a new fuel cap.
J
James SotoSep 5, 2025
Why does my Ariens 921051 Snow Blower engine start hard or run poorly?
- L
  lpearsonSep 5, 2025
  If your Ariens Snow Blower engine starts hard or runs poorly, the fuel mixture may be too rich, so turn the choke control knob to the off position. Another cause could be a faulty, fouled, or incorrectly gapped spark plug; clean and correctly set the spark plug gap. Also, the fuel cap vent might be blocked, in which case you should install a new fuel cap.
D
Dr. Paul MercadoSep 6, 2025
Why does my Ariens 921051 Snow Blower pull to one side?
- J
  Jasmine NguyenSep 6, 2025
  If your Ariens Snow Blower pulls to the left or right, the skid shoes and scraper blade likely need adjustment. Adjust both the skid shoes and the scraper blade.

Ariens 921051 Specifications

General

Engine	Ariens AX 254cc
Speed	6 Forward / 2 Reverse
Auger Material	Steel
Intake Height	21 inches
Auger Type	Steel
Product Type	Snow Blower
Start Type	Recoil
Clearing Depth	21 inches
Starter	Electric
Chute Control	Remote
Skid Shoes	Adjustable
Warranty	3-Year Limited (Consumer)

Summary

SAFETY

Required Operator Training

Safety Alert Symbol

Meaning and use of the safety alert symbol.

Signal Words

Explanation of Danger, Warning, and Caution signal words.

SAFETY DECALS

Safety Decals

Visual reminders of safety information on the machine.

SAFETY RULES

Training

Importance of understanding controls, stopping the unit, and operator instruction.

OPERATION

Clearing a Clogged Discharge Chute

MAINTENANCE AND STORAGE

PERSONAL PROTECTION

Fuel

Safe handling and storage of gasoline and fuel.

CONTROLS & FEATURES

Engine Key

Electric Start Button

Choke Control Knob

Throttle Control Knob

Speed Selector Lever

Attachment Clutch Lever

Controls auger/impeller movement.

Traction Drive Clutch Lever

Allows unit to travel forward and in reverse.

Dual Handle Interlock

Allows auger/impeller to rotate without holding attachment clutch lever.

Discharge Chute Rotation Lever

Discharge Chute Deflector Lever

OPERATION PROCEDURES

Emergency Stopping

Procedures for stopping the unit quickly in an emergency.

Before Operating Unit

Pre-operation checks including fuel, oil, and controls.

Start The Engine

Step-by-step instructions for starting the engine.

Operate Unit

Steps to operate the snow thrower after starting.

Stop the Engine

Procedures for safely shutting down the engine.

MAINTENANCE

Maintenance Schedule

Recommended maintenance tasks and frequencies.

MAINTENANCE CHECKS

Check Dual Handle Interlock

Check Clutch Operation

Check Engine Oil

Procedure to check engine oil level.

Change Engine Oil

Refers to engine manual for oil change instructions.

Check Auger Gearcase Oil

Procedure to check auger gearcase oil level.

ADJUSTMENTS

Replace Shear Bolts

Adjust Speed Selector Lever

Adjust Attachment Clutch & Brake

Adjusts the attachment clutch and brake for proper operation.

Check Attachment Brake

Adjust Traction Drive Clutch

TROUBLESHOOTING

Engine Will Not Start

Common causes and corrections for engine starting issues.

Engine Starts Hard or Runs Poorly

Troubleshooting steps for poor engine performance.

Engine Stops

Causes and solutions when the engine stops unexpectedly.

Unit Runs Briefly Then Stops

Diagnosing and fixing issues where the unit stops after a short run.

Unit Does Not Drive Forward or In Reverse

Troubleshooting for issues with unit drive system.

Unit Does Not Throw Snow or Throws It Poorly

Diagnosing problems with snow throwing performance.

Excessive Snow is Left Behind

Unit Pulls to the Left or Right
